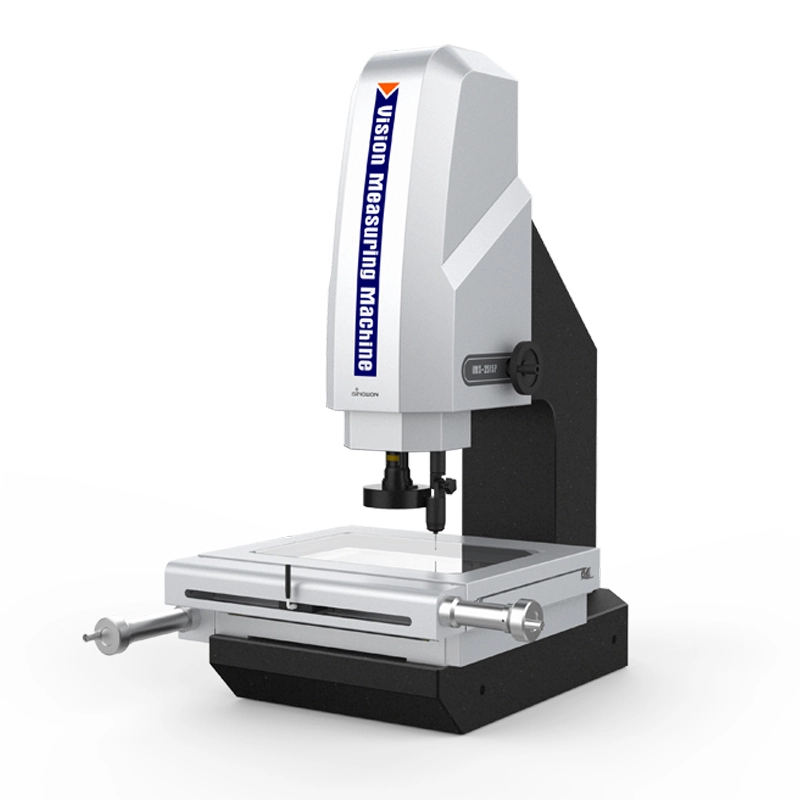

3D iTouch Vision Measuring Machine 1
3D iTouch Vision Measuring Machine 1

3D iTouch Vision Measuring Machine

    oops...!

    no product data.

    Go to homepage

    3D iTouch Vision Measuring Machine 2

    Brief Induction:

    iTouch is the high accuracy geometric vision measuring machines that integrate the optical detent zoom lens and 3D touch trigger probe system, it is widely applied at the industry of 3C, semiconductor, PCB, automobile parts, medical parts, precise molds, aviation and aerospace, etc.

    Product Characteristic:

    l  High precision marble base and pillar ensures the high stability of vision measuring system;

    l  High precision toothless rod and fast moving locking device ensures repeatability error is less than 2um;

    l  High precise working stage with 0.5um optical linear scales ensures the accuracy is less than 2.5+L/200um;

    l  High definitive detent zoom lens and high resolution digital camera ensures clear image without distortion;

    l  With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;

    l  Britain touch trigger probe and powerful function iMeasuring3.1 3D Measuring Software, highly enhance the quality control.



    Technical Specification

    Mode

    iMS-2010P

    iMS-2515P

    iMS-3020P

    iMS-4030P

    iMS-5040P

    Code#

    521-140P

    521-150P

    521-160P

    521-170P

    521-180P

    Working Table

    270x350mm

    408x308mm

    458x358mm

    608x470mm

    650x580mm

    Material

    Marble Table

    Metal Table

    Metal Table

    Metal Table

    Marble Table

    Glass Table

    142x242mm

    306x198mm

    356x248mm

    456x348mm

    541x441mm

    X/Y-axis Travel

    200x100mm

    250x150mm

    300x200mm

    400x300mm

    500x400mm

    Z-axis Travel

    High-precision linear guide , working travel 200mm

    X/Y/Z-axis Travel

    0.0005mm

    X/Y-axis Accuracy

    ≤2.5+L/200(um)

    Hysterisis Error

    2um

    Base and Pillar

    High Accuracy Jinan Qing Marble

    Illumination System(Software Adjustment)

    Surface: Adjustable 0~255 grade 4-ring 8-division   LED Cold Illumination, every division can be adjust independently

    Contour: LED Parallel Illumination

    LED Laser Navigation Lights

    CCD Camera

    High Resolution Digital Camera

    Zoom lens

    6.5X High Resolution Detented Zoom Lens

    Magnification:0.7X~4.5X;Video Magnification:26X~172X

    Working Environment

    Temperature:20℃±2℃, change range < 2℃/hr

    Humidity:30%   ~80%RH

    Vibration<0.002g,<15Hz

    Measuring Software

    IMeasuring3.1

    Operation System

    Support XP,WIN7,WIN8.1,WIN 10,32/64 operating system

    Language

    English, Simplified Chinese, Traditional Chinese,   other language versions can be added

    Dimension(W*D*H)

    677x552x998mm

    790x617x1000mm

    838x667x1000mm

    1002x817x1043mm

    1104x852x1085mm

    Net Weight

    150Kg

    175Kg

    185Kg

    350Kg

    380Kg
