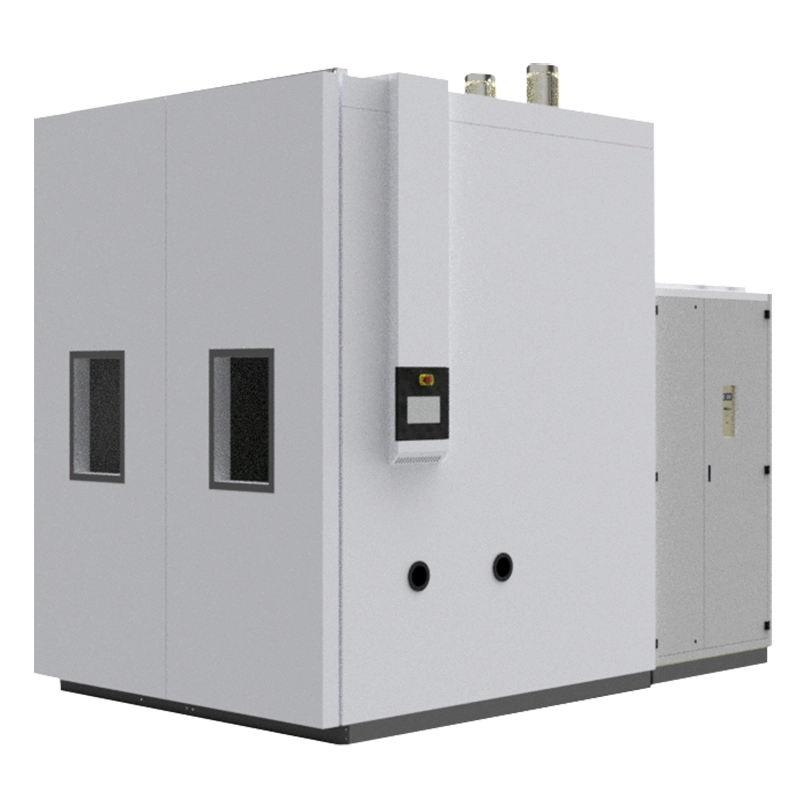

Walk-in Temperature and Humidity Alternating Box
The walk-in environmental laboratory is divided into (walk-in constant temperature and humidity laboratory, walk-in high and low temperature (hot and humid) laboratory, and walk-in aging room), which provides large-scale parts, semi-finished products, finished products, temperature and humidity environmental testing for the industry, such as: computer terminals, automotive parts and furniture, electronic and electrical products, toys, batteries, displays, automotive electronics, power supplies, motherboards, monitors, switchable chargers, etc. It is suitable for testing products with large quantities and large volumes of test equipment.
Product Characteristic
lThe storage board material is made of stainless steel and steel plate paint, with a strong structure, waterproof, and beautiful appearance.The internal volume can be enlarged freely, and it is easy to disassemble and assemble, and can be designed according to customer needs.
lLCD touch screen controller, Chinese and English display, easy to operate.
lThe original imported compressor uses environmentally friendly refrigerant, and the refrigeration system uses a binary low-temperature loop system design to increase equipment life.
lUtilize the multi-wing blower powerful air circulation system to avoid any dead zones and ensure even indoor temperature and humidity distribution.
lMultiple expansion functions:
The control system is connected to the computer via an RS-232 interface, allowing users to set programs on the computer screen, collect test data and records, call program execution, and remotely control machine switches.A specially designed low-humidity dehumidification device can reach a minimum temperature of 5°C to 5%RH.An external temperature and humidity recorder can be added to provide a real-time temperature recording curve.
lComplete safety protection device:
When an abnormal situation occurs, the controller screen automatically displays the fault status, cuts off the power switch, and provides troubleshooting methods.
Specification
Product Type | Walk-in High and Low Temperature Test Chamber | Walk-in Constant Temperature and Humidity Test Chamber | Walk-in Aging Room |
Workroom Volume | The size is customized according to customer requirements | ||
Temperature Range | Maximum test temperature: 150℃, minimum temperature: -70℃, -40℃, -20℃ | ||
Humidity Range | 20%~95% | ||
Rate of temperature rise and drop | 1℃~15℃/min (can be customized according to customer requirements) | ||
Inner box material | Stainless steel material (SUS-304) | ||
Outer box material | PVC steel plate paint | ||
Door Size | Can be customized according to customer requirements | ||
Insulating Material | Fireproof PU foam 110mm (150mm) | ||
Refrigeration Method | Single-stage refrigeration, below -40℃ (including) double-stage cascade refrigeration, air cooling | ||
Power Supply | AC3∮，220/380V,50/60HZ | ||
