Have the excellent visibility and cutting ability, large working space and multifunctional fixture, high-power high torque motors and infinitely variable speed control system, , Manual Precision Cutting Machine is suitable for all kinds of metal materials, PCB, semiconductor, crystal, ceramic, quartz glass and lithofacies sample of highly flexible precision cutting tools.
◆ Simple and quick manual cutting operation;
◆ Large vision observation window, cutting the sample take in everything in a glance.
◆ 304 stainless steel aluminum alloy T slot workbench, replaceable fixture;
◆ Taiwan high torque motor with low voltage control, ABB motor;
◆ Aluminum alloy , corrosion resistance ,stable and beautiful body, easy to operate;
◆ 304 stainless steel fast fixture, corrosion resistance, long service life;
◆ Built-in of long life and high brightness LED lamp;
◆ Built-in nozzle, facilitate clean studios and samples;
◆ Equipped with electronic brake, stops running if the shield opened, safe and reliable;
◆ Continuously viable, it is suitable for cutting of different materials;

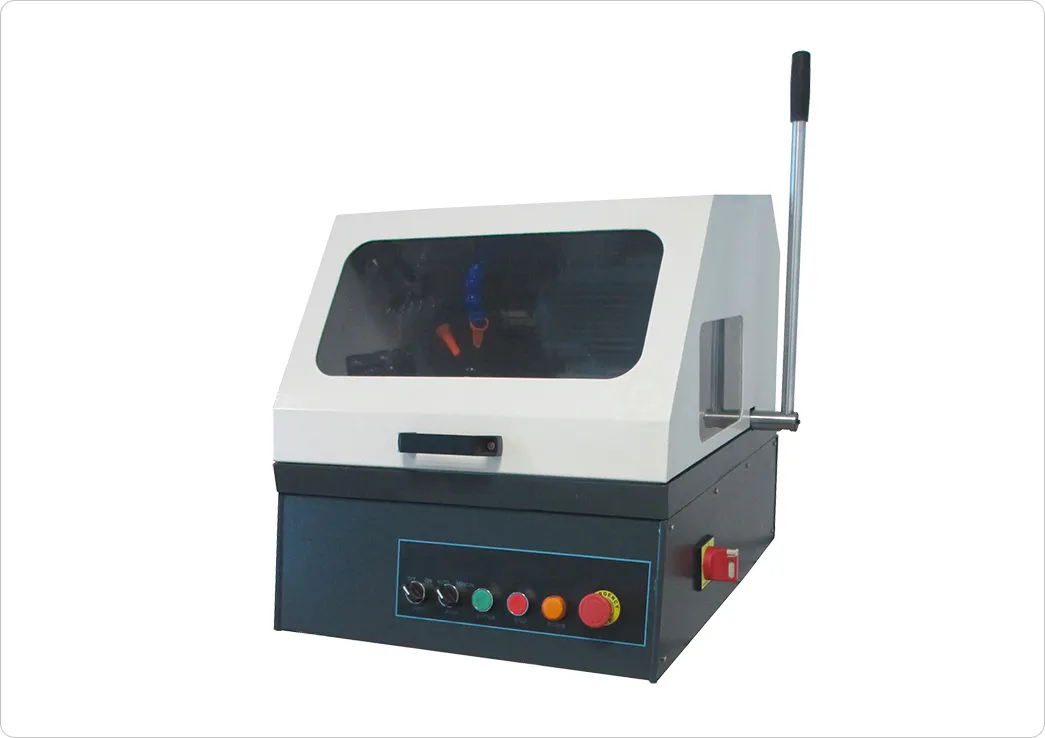

Product Name | Manual Cutting Machine |
Model | MC-250 |
Manual/Motor | Manual/Motor |
Cooling Method | Water-cooling |
Cutting Disk | 250x32x1.5mm |
Revolving Speed, rpm | 2850rpm |
Max cutting ability, mm | 80mm |
Travel | 200mm |
Working stage size | 316x260mm |
Main Machine | 810x750x620mm |
Power | 2.2KW |
Power Supply | Three phase380V, single phase220V |

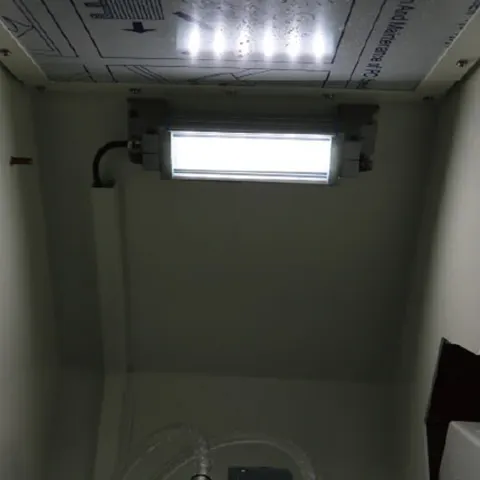

LED Lamp
Large Workong Space

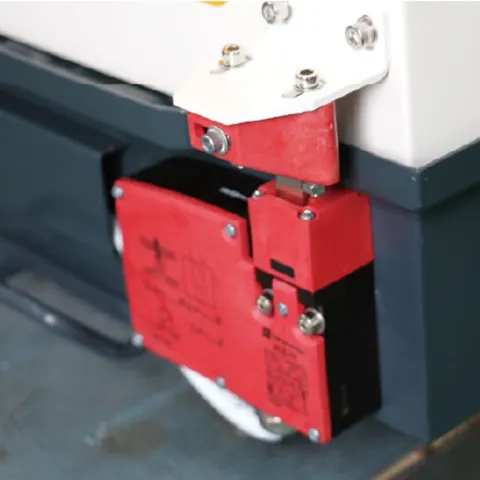

Schneider Switch(Optional)

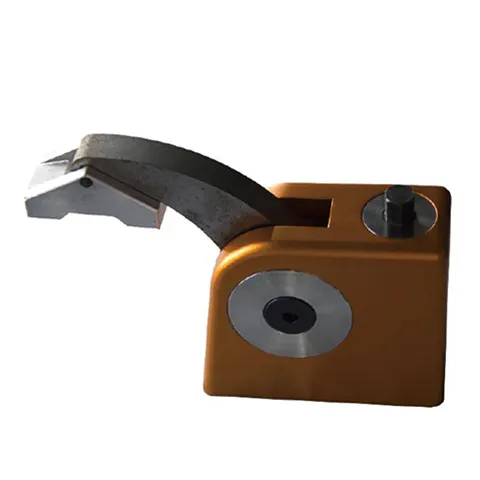

Vertical Clamp

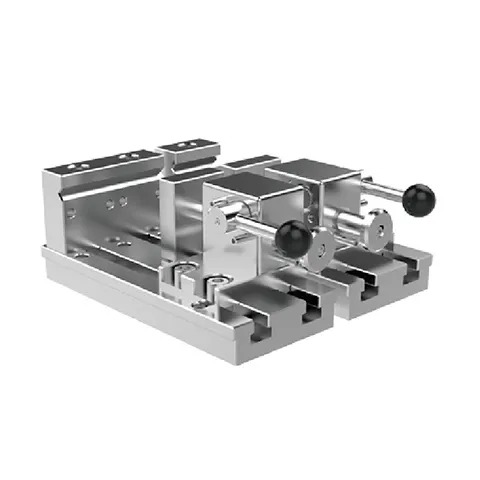

304 SS Toggle Clamp

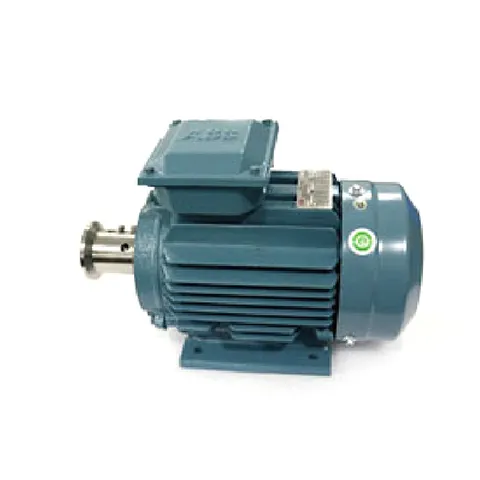

ABB Motor(Optional)
Standard Accessories:
Resin cutting piece (1 piece), water tank (60*45*46), accessory toolbox, 304 stainless steel quick clamp, cutting fluid, open spanner (30mm), hexagon wrench (8mm)
