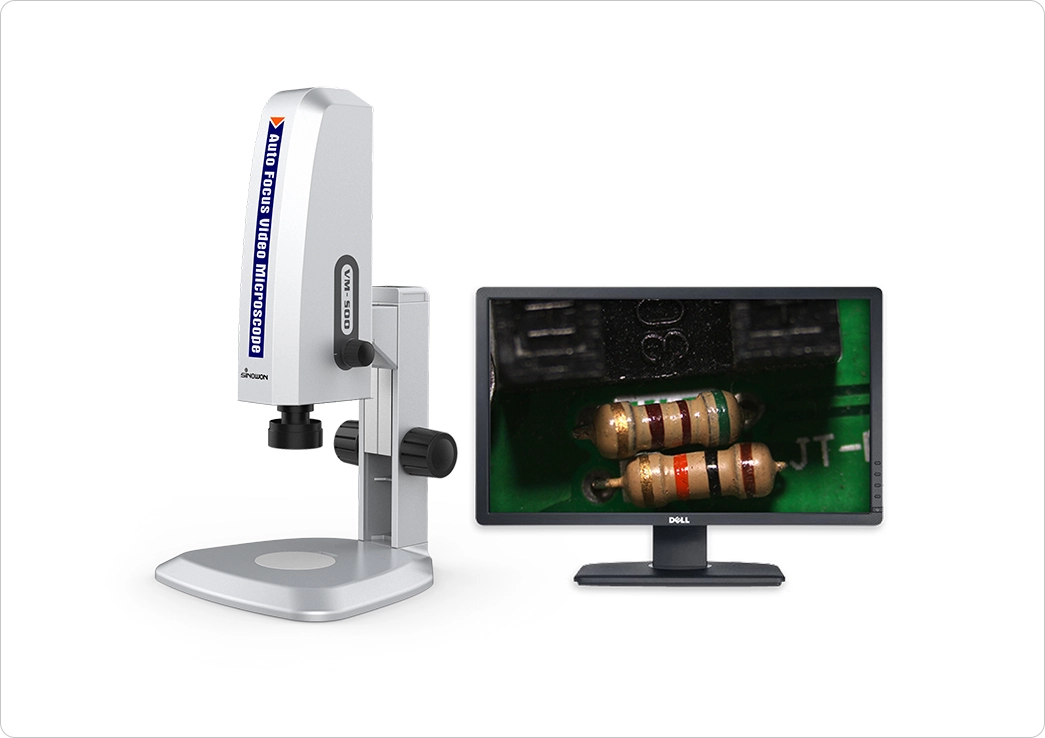

Auto Focus Video Microscope Auto Focus Photograph Video Record VM500
Model:
VM-500
Code#:
451-450
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Application Scope
Sinowon's hardness testing machines can be used in a variety of industries.Sinowon has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.
Product Comparison
Sinowon has great production capability and excellent technology. We also have comprehensive production and quality inspection equipment. optical measurement instruments has fine workmanship, high quality, reasonable price, good appearance, and great practicality.Compared with other products in the same industry, Sinowon's optical measurement instruments has the following characteristics.
1. Before delivery, Sinowon best digital microscope camera has to undergo a wide range of tests. It is strictly tested in terms of the strength of its materials, statics&dynamics performance, resistance to vibrations&fatigue, etc.
2. The product can last for a long time. With its full-shield design, it provides a better way to avoid the leakage problem and prevents its components from damage.
3. The product can work with high accuracy. Its distinguished self-diagnostic feature can make sure that every motion is of high accuracy.
4. Without any electric leakage problem or electromagnetic radiation influence, people can be assured that it is safe to use.
Application:
Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
Product Feature
◆ Integral design, exquisite, fashion, generous;
◆ Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;
◆ With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;
◆ With adjustable LED surface reflection illumination, is able to control brightness independently;
◆ With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.
Specification
| Product Name | Auto Focus Video Microscope |
| Model | VM-500 |
| Code# | 451-450 |
| Electronic Magnification | 32X~206X( VGA 4:3 21”Monitor；） |
| Optical Objective | 0.7X~4.5X Horizontal Zoom Lens |
| Zoom ratio：6.5:1 | |
| 0.5X C-mount Camera Adapter | |
| Camera Parameters | 2 million pixel (1920*1080) |
| Image Size:1/2.86” | |
| Frames Per Second：30fps | |
| Camera Function | Auto Focus |
| Cross Line | |
| Photograph and Video Record | |
| Output： HDMI | |
| White Balance; Brightness Control; Digital Noise Reduction | |
| Illumination | Surface: Adjustable LED Surface Illumination |
| Ring Fiber Illumination Optional | |
| Microscope Stand | Z-axis Travel: 100mm |
| Coarse Lifting System | |
| Electrical Parameters | AC90~240V；50~60HZ |
| Dimension | 310*285*500 mm |
| Weight | 6Kg |
Accessories:
| Product Name | Specification |
| Microscope Main Body | VM-500 |
| Power Adapter | DC5V（Camera）、DC12V（Illumination） |
| Monitor | Optional 4:3 21.5” |
| Operation Manual/Warranty Card/Certificate/Packing list | VM-500 |
Field of View:
| Auxiliary objective | Field of view （0.5X Camera Adapter) | ||||||||||||||||||||
| 0.7X | 1X | 2X | 3X | 4X | 4.5X | Remark | |||||||||||||||
| Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | ||||
| 0.5X WD:108mm | Magnification 0.18X-1.12X | Optional | |||||||||||||||||||
| 25.29 | 22.86 | 34.09 | 17.70 | 16.00 | 23.86 | 8.85 | 8.00 | 11.93 | 5.90 | 5.33 | 7.95 | 4.43 | 4.00 | 5.97 | 3.93 | 3.56 | 5.30 | ||||
| 1.0X WD:91mm | Magnification 0.35X-2.25X | Standard | |||||||||||||||||||
| 12.64 | 11.43 | 17.04 | 8.85 | 8.00 | 11.93 | 4.43 | 4.00 | 5.97 | 2.95 | 2.67 | 3.98 | 2.21 | 2.00 | 2.98 | 1.97 | 1.78 | 2.65 | ||||
| 2.0X WD:35.3mm | Magnification0.70X-4.50X | Optional | |||||||||||||||||||
| 6.32 | 5.71 | 8.52 | 4.43 | 4.00 | 5.97 | 2.21 | 2 | 2.98 | 1.48 | 1.33 | 1.99 | 1.11 | 1.00 | 1.49 | 0.98 | 0.89 | 1.33 | ||||
Product Details
Company Features
1. Devoted to R&D of digital microscope review for many years, Sinowon Innovation Metrology Manufacture Limited. keeps launching new products every year.
2. Sinowon Innovation Metrology Manufacture Limited. has unique advantages in technology and resources.
3. Sinowon Innovation Metrology Manufacture Limited. has been leading the marketplace with digital microscope to supply our clients with a competitive edge. Inquire! Sinowon Innovation Metrology Manufacture Limited. adheres to the service tenet of serving customers wholeheartedly. Inquire! We focus on cutting-edge production technology to create the best value for our customers. Inquire! We can promise high quality and excellent service for best digital microscope camera. Inquire!
