Auto Focus Video Microscope VM-200 1
Auto Focus Video Microscope VM-200 1

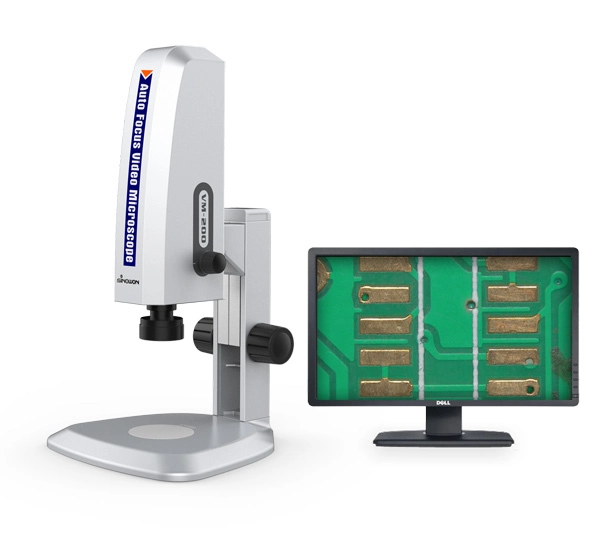

Auto Focus Video Microscope VM-200

    oops...!

    no product data.

    Go to homepage

    Auto Focus Video Microscope VM-200 2

    Application:

    Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.

    Product Feature


     Integral design, exquisite, fashion, generous;

     With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;

     With adjustable LED surface reflection illumination, is able to control brightness independently;

     With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.


    Specification



    Product NameAuto Focus Video Microscope
    ModelVM-200
    Code#451-420
    Electronic Magnification32X~206X( VGA 4:3 21”Monitor;)
    Optical Objective0.7X~4.5X Horizontal Zoom Lens
    Zoom ratio:6.5:1
    0.5X C-mount Camera Adapter
    Camera Parameters2 million pixel (1920*1080)
    Image Size:1/2.86”
    Frames Per Second:30fps
    Camera FunctionAuto Focus
    Cross Line
    Photograph and Video Record
    Output: HDMI
    White Balance; Brightness Control; Digital Noise Reduction
    IlluminationSurface: Adjustable LED Surface Illumination
    Ring Fiber Illumination Optional
    Microscope StandZ-axis Travel: 100mm
    Coarse Lifting System
    Electrical ParametersAC90~240V;50~60HZ
    Dimension310*285*500 mm
    Weight6Kg


    Accessories:


    Product NameSpecification
    Microscope Main BodyVM-200
    Power AdapterDC5V(Camera)、DC12V(Illumination)
    MonitorOptional 4:3 21.5”
    Operation Manual/Warranty Card/Certificate/Packing listVM-200


    Field of View:


    Auxiliary
    objective
    Field of view (0.5X Camera Adapter)
    Remark
    0.7X1X2X3X4X4.5X
    LengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonal
    0.5X
    WD:108mm
    Magnification 0.18X-1.12X


    Optional

    25.2922.8634.0917.7016.0023.868.858.0011.935.905.337.954.434.005.973.933.565.30
    1.0X
    WD:91mm
    Magnification 0.35X-2.25X


    Standard

    12.6411.4317.048.858.0011.934.434.005.972.952.673.982.212.002.981.971.782.65
    2.0X
    WD:35.3mm
    Magnification0.70X-4.50X


    Optional

    6.325.718.524.434.005.972.2122.981.481.331.991.111.001.490.980.891.33
