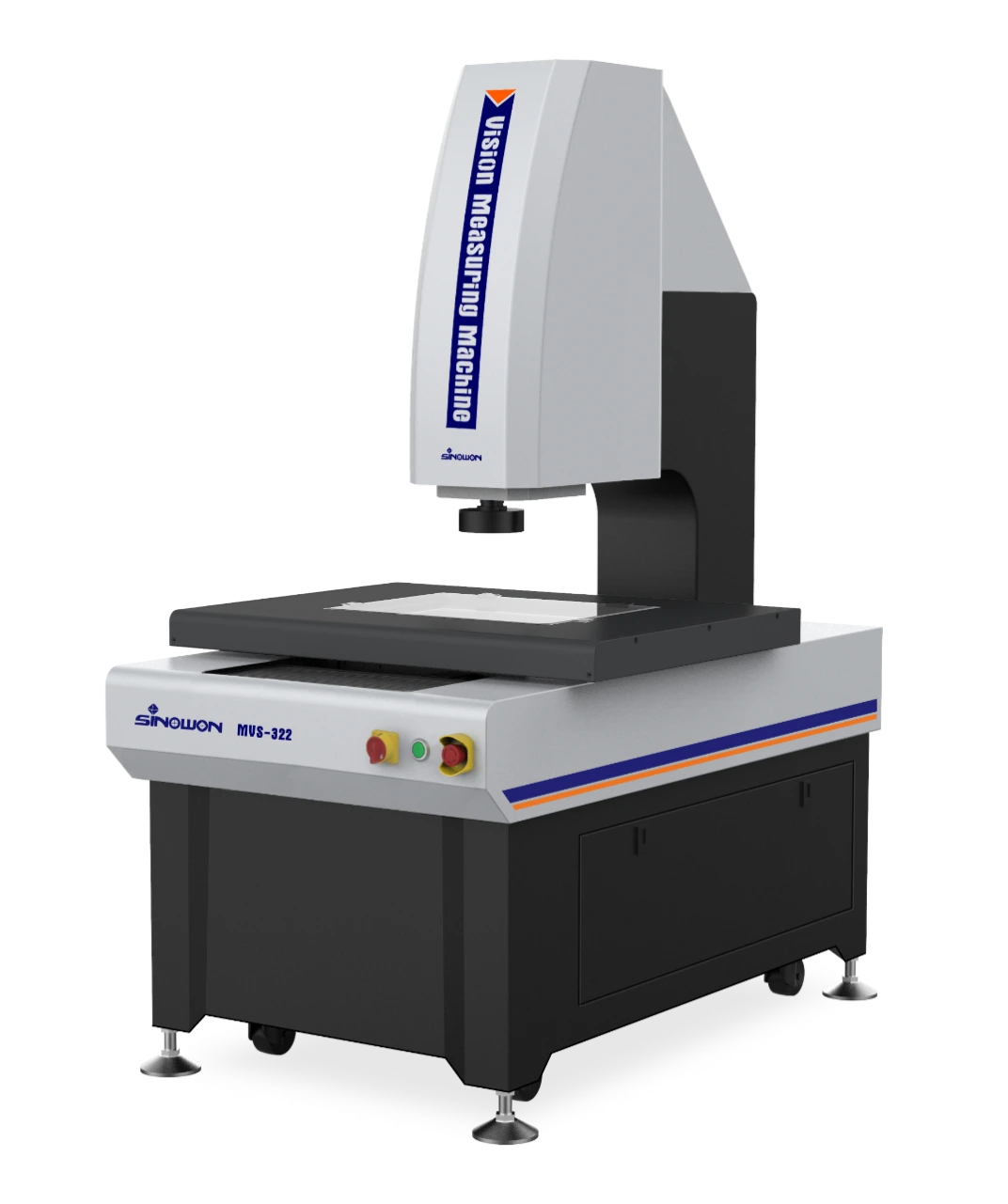

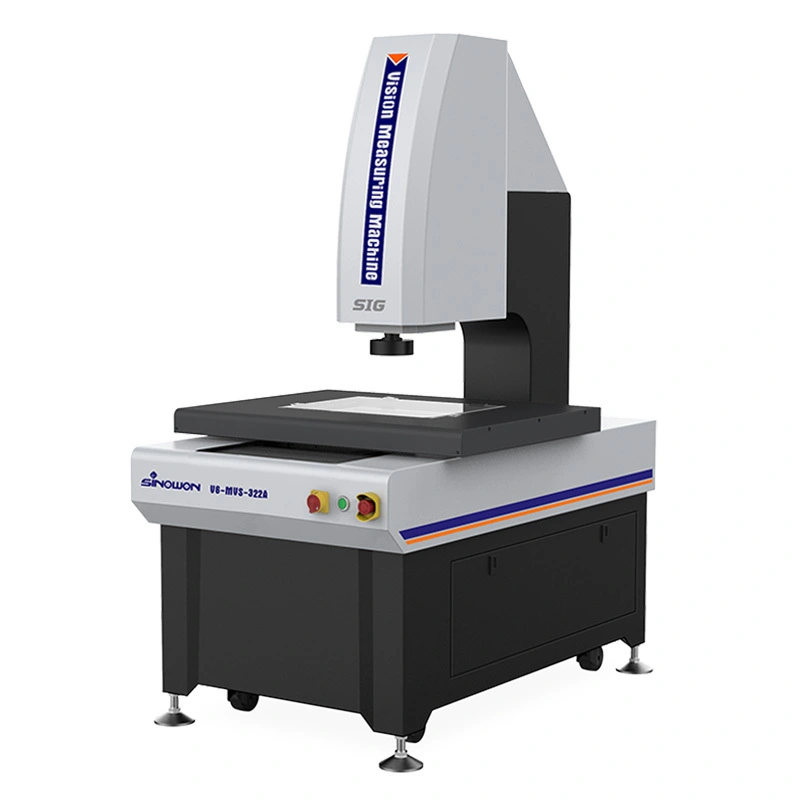

Automatic Vision Measuring Machine MVS-322 Series 1
Automatic Vision Measuring Machine MVS-322 Series 1

Automatic Vision Measuring Machine MVS-322 Series

    oops...!

    no product data.

    Go to homepage

    Automatic Vision Measuring Machine MVS-322 Series 2

    MVS-322 series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.


    Product Characteristics


     XYZ three-axis CNC automatic precision control, precise positioning;

     Indian Marble base and pillar, good stability;

     Precision linear guides, grinding-grade ball screws and AC servo motors, etc., ensure the accuracy and stability of the motion system;

     0.5μm high-precision grating ruler to ensure the positioning accuracy and measurement accuracy of the system;

     High-resolution digital camera to meet the needs of clear observation and precise measurement;

     8.3X high-definition optical lens, accurate zoom, one-time pixel correction;

     Program-controlled 5-ring 8-area LED surface illumination and parallel LED contour illumination system intelligently realize 256-level brightness adjustment;

     iMeasuring series automatic Vision measurement software, powerful and easy to operate.


    Technical Specification



    Commodity

    2.5D Automatic

    Vision

    Measuring Machine

    3D Automatic

    Contact & Vision

    Measuring Machine

    2.5D Automatic

    Laser-Scan & Vision

    Measuring Machine

    3D Automatic

    Multisensory

    Measuring Machine

    Model

    MVS-322A

    MVS-322B

    MVS-322C

    MVS-322D

    Code#

    522-120G

    522-220G

    522-320G

    522-420G

    Sensor-Type

    A: One-Sensor

    Optical

    Zoom-lens

    Sensor

    B: Twin-Sensor

    Zoom-lens Sensor

    and

    Contact Probe Sensor

    C: Twin-Sensor

    Zoom-lens Sensor

    and

    Confocal Laser Sensor

    D: Tri-Sensor

    Zoom-lens Sensor

    Contact Probe Sensor

    Confocal Laser Sensor

    X/Y-axis Travel

    (300*200)mm

    Z-axis Travel

    200mm

    X/Y/Z-3 axis Linear Scale

    European Linear Scale Resolution: 0.5um

    Guidance Mode

    P-Class Precision linear guide, double-track double slider guide.

    Operation Mode

    Joystick controller, Mouse operation, automatic detection program.

    Accuracy*

    XY-axis≤2.2+L/200(um)

    Z-axis≤5.0+L/200(um)

    Repeatability

    ±2um

    Video System**

    1/2.9"/1.6Mpixel High Resolution Digital Camera

    8.3X Manual Electronic Feedback Lens

    Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21.5” monitor)

    Field of

    View(mm)

    D*H*V

    Magnification

    0.6X

    1X

    1.5X

    2X

    2.5X

    3X

    3.5X

    4X

    4.5X

    5X

    1/2.9"CCD

    10.35x8.28x6.21

    6.21x4.97x3.73

    4.14x3.31x2.48

    3.11x2.48x1.86

    2.48x1.99x1.49

    2.07x1.66x1.24

    1.77x1.42x1.06

    1.55x1.24x0.93

    1.38x1.10x0.83

    1.24x0.99x0.75

    Illumination

     System

    Contour

    LED parallel contour illumination

    Surface

    0~255 Stepless adjustable 5-ring 8-division LED surface illumination

    Measuring Software

    iMeasuring Software

    Load Capacity

    25Kg~50Kg

    Working Environment

    Temperature 20℃±2, temperature change<1/Hr; humidity 30%~80%RH; vibration<0.02g's, 15Hz.

    Power Supply

    220V/50Hz/10A

    Dimension (W*D*H)

    (1146mm*720mm*1664)mm

    Packing Size

    (1290*970*1920)mm

    Net Weight

    380Kg

    Note

    L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

    **Magnification is approximate value, it is related to the dimension of monitor and resolution.

    Field of view(mm) = (diagonal*Horizontal*Vertical)

    0.5X or 2X objective is optional available and realize image magnification: 13X~86X or 52X~344X.


    Configuration List


    Automatic Vision Measuring Machine MVS-322 Series 3



    Model

    Effective   Measurement Travel mm

    Dimensions   (L*W*H) mm

    X-axis

    Y-axis

    Z-axis

    Machine   dimensions

    Package   dimensions

    MVS322

    300mm

    200mm

    200mm

    (1146*720*1664)mm

    (1290*970*1920)mm

    MVS432

    400mm

    300mm

    200mm

    (1331*840*1664)mm

    (1390*1060*1940)mm

    MVS542

    500mm

    400mm

    200mm

    (1257*920*1640)mm

    (1450*1170*1900)mm
