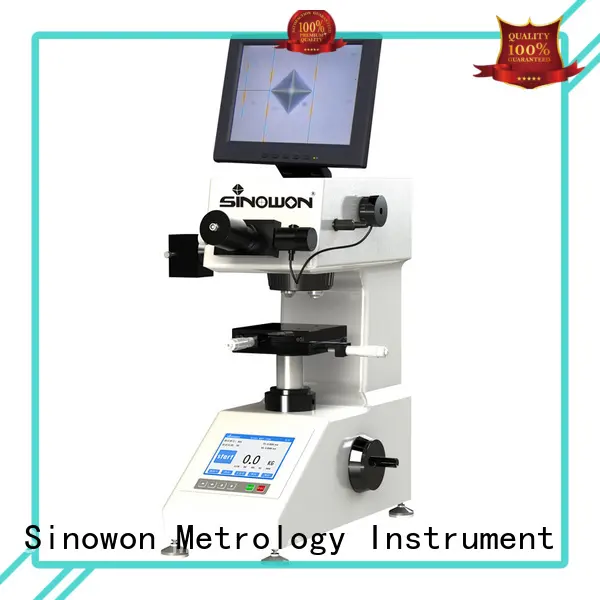

automatic micro vicker hardness tester from China for small parts

Company Advantages
1. Sinowon micro vicker hardness tester adopts high precision equipment to meet customers' requirements.
2. Strict tests at every stage are carried out to ensure the quality of micro vicker hardness tester . The Gost certificate has been obtained for the Russian market
3. The product offers uncompromised safety assurance. The high-performance insulation materials and reliable electric parts guarantee its safety. It is well recognized by more than 5000 customers
4. This product is breathable. It utilizes a waterproof and breathable fabric layer that acts as a barrier against dirt, moisture, and bacteria. The product has been installed in many countries such as the US, Canada, Mexico, and Germany

◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

◆ It is equipped with 10X and 40X HD lens and HD USB camera, the instrument measured images in optical imaging system and video of great quality;

◆ Combined with MV-1000 video measuring devices, It improves efficiency, reduces visual fatigue of the operator.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Product Name		Micro Hardness Tester with Measurement Monitor
Model		MV-1000V
Code#		823-101V
Loading force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	Kgf	10、25、50、100、200、300、500、1000
Indentation Measuring Device		MV-100
Switch of Objectives and Pressure Switch		Auto-turret
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x/40x；Measurement：10x/40x
Video System		CMOS Measuring Eyepiece, 8 "Display
Dwell Time		5-60s
Measuring Range		1HV-2967HV
X-Y Anvil		Size：100X100mm；  Travel：25mm X 25mm;Resolution：2um
Maximum Height and Width of Specimen		Maximum Height：70mm; Maximum Width：95mm
Power supply		AC220/50Hz; AC110V/60Hz
Dimension		425X245X490mm
Gross/Net Weight		45kg/35Kg
Executive Standard		GB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a Chinese manufacturer of vickers hardness test definition . We have gained a reputation in the market for our experience and expertise.
2. Currently in the domestic market Sinowon Innovation Metrology Manufacture Limited. has a higher share.
3. The essence in service creed of Sinowon Innovation Metrology Manufacture Limited. is microhardness measurement . Inquire online!
