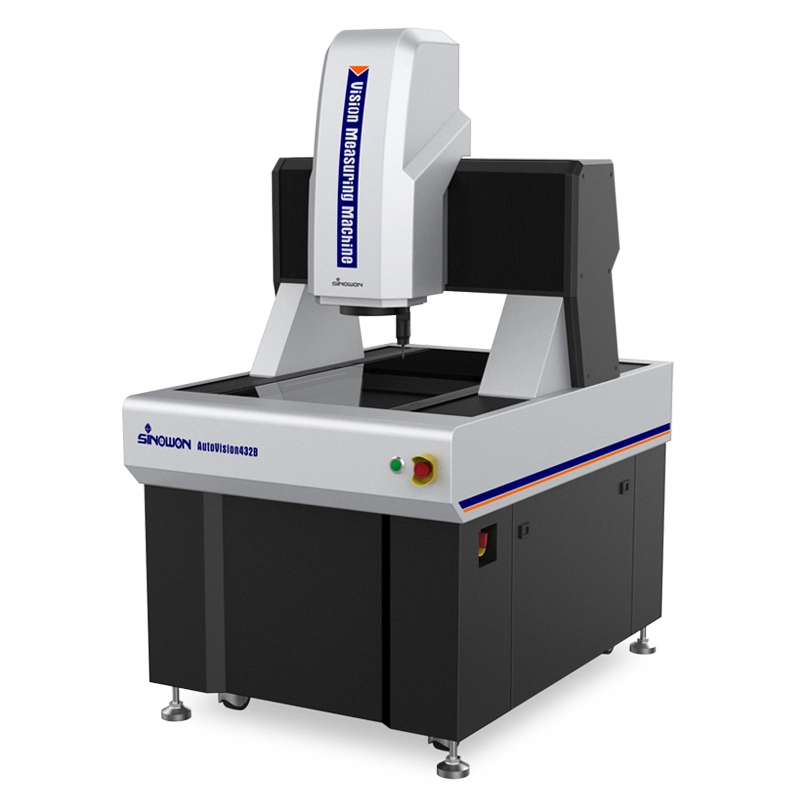

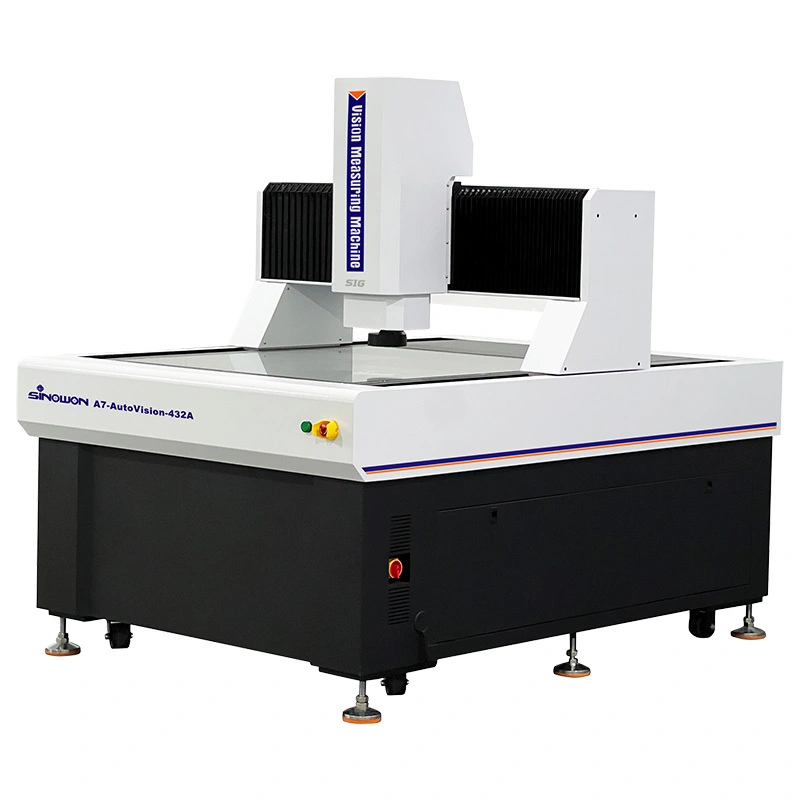

    AutoVision432 Series is a Gantry Fully Auto Vision Measuring Machine, it is designed for high accuracy and large dimension measurement. Equipped with movable bridge structure, the workpiece is fixed, which can ensure measurement accuracy and stability. It is widely used in electronic industry, medical devices, LCD, aerospace and other industries measurement.


    Product Characteristics


     Moving Bridge type structure, measuring workpiece is fixed;

     Four-axis CNC fully auto close loop control, auto measurement;

     Indian Marble base and pillar, good stability;

     Imported RSF linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;

     Imported HD color camera to meet the needs of clear observation and accurate measurement;

     8.3x high-resolution motorized coaxial zoom lens, accurate doubling and one times pixel correction only needed;

     With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division;

     Powerful function and easy operation iMeasuring Software to enhance quality control;

     Optional MCP Probe and Laser Senser Module. Machines can be customized according to customers’requirements.



    Technical Specification


    Commodity

    2.5D Automatic

    Vision

    Measuring Machine

    3D Automatic

    Contact & Vision

    Measuring Machine

    2.5D Automatic

    Laser-Scan & Vision

    Measuring Machine

    3D Automatic

    Multisensory

    Measuring Machine

    Model

    AutoVision432A

    AutoVision432B

    AutoVision432C

    AutoVision432D

    Code#

    523-180H

    523-280H

    523-380H

    523-480H

    Sensor-Type

    A: One-Sensor

    Optical

    Zoom-lens

    Sensor

    B: Twin-Sensor

    Zoom-lens Sensor

    and

    Contact Probe Sensor

    C: Twin-Sensor

    Zoom-lens Sensor

    and

    Confocal Laser Sensor

    D: Tri-Sensor

    Zoom-lens Sensor

    Contact Probe Sensor

    Confocal Laser Sensor

    X/Y-axis Travel

    (400*300)mm

    Z-axis Travel

    200mm

    X/Y/Z-3 axis Linear Scale

    European Linear Scale Resolution: 0.1um

    Guidance Mode

    P-Class Precision linear guide, double-track double slider guide.

    Operation Mode

    Joystick controller, Mouse operation, automatic detection program.

    Accuracy*

    XY-axis≤1.8+L/200(um)

    Z-axis≤4+L/200(um)

    Repeatability

    ±2um

    Video System**

    1/1.8" High-Definition Digital Color Camera

    8.3X Motorized Zoom Lens

    Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21.5” monitor)

    Field of

    View(mm)

    D*H*V

    Magnification

    0.6X

    1X

    1.5X

    2X

    2.5X

    3X

    3.5X

    4X

    4.5X

    5X

    1/1.8"CCD

    14.72x11.78x8.83

    8.83x7.07x5.30

    5.89x4.71x3.53

    4.42x3.53x2.65

    3.53x2.83x2.12

    2.94x2.36x1.77

    2.52x2.02x1.51

    2.21x1.77x1.33

    1.96x1.57x1.18

    1.77x1.41x1.06

    Illumination

     System

    Contour

    LED parallel contour illumination

    Surface

    0~255 Stepless adjustable 5-ring 8-division LED surface illumination

    Measuring Software

    iMeasuring Software

    Load Capacity

    25Kg~50Kg

    Working Environment

    Temperature 20℃±2, temperature change<1/Hr; humidity 30%~80%RH; vibration<0.02g's, 15Hz.

    Power Supply

    220V/50Hz/10A

    Dimension (W*D*H)

    (832mm*1195mm*1579)mm

    Packing Size

    (1380*1170*1910)mm

    Net Weight

    650Kg

    Note

    L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

    **Magnification is approximate value, it is related to the dimension of monitor and resolution.

    Field of view(mm) = (diagonal*Horizontal*Vertical)

           0.5X or 2X objective is optional available and realize image magnification: 10X~64.5X or 40X~258X.


    Configuration List


    Automatic Vision Measuring Machine  AutoVision432 Series 3


    Model

    Effective   Measurement Travel mm

    Dimensions (L*W*H)   mm

    X-axis

    Y-axis

    Z-axis

    Machine   dimensions

    Package   dimensions

    AutoVision432

    300mm

    400mm

    200mm

    (832*1195*1579)mm

    (1380*1170*1650)mm

    AutoVision542

    400mm

    500mm

    200mm

    (940*1463*1591)mm

    (1690*1300*2000)mm

    AutoVision652

    500mm

    600mm

    200mm

    (1040*1568*1591)mm

    (1800*1400*2000)mm

    AutoVision862

    600mm

    800mm

    200mm

    (1157*1818*1590)mm

    (2300*1700*2000)mm

    AutoVision1082

    800mm

    1000mm

    200mm

    (1357*2018*1790)mm

    (2500*1900*2200)mm
