A professional manufacturer of measuring & testing equipment.

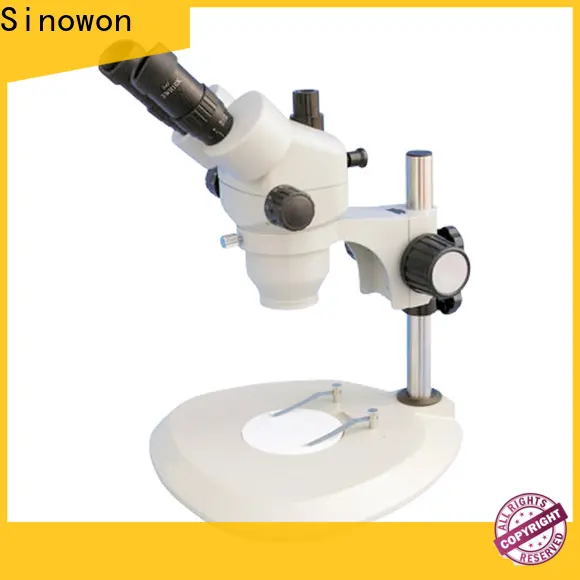

certificated dissecting microscope personalized for precision industry 1

certificated dissecting microscope personalized for precision industry 2

certificated dissecting microscope personalized for precision industry

Model:

Code#:

411-222

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

certificated dissecting microscope personalized for precision industry 3

◆ With Zoom A5(binocular) and Zoom A5T(trinocular);

◆ Brand-new optical design, the best reproduction and true color image;

◆ Kinds of stands and attachments are available;

◆ Applied to modern biology research, semiconductor and the other science and technology industry ﬁeld to meet high precision requirement.

Specification

Model	Binocular Zoom A5
Code#	411-222
Objective	0.7x~4.5x Zoom Objective, Zoom Ration 6.4x
Eyepiece	High eye-point and wide-field eyepiece WF10X/20mm Optional WF15X/15mm,WF20X/10mm and object micrometer is available
Magnification	7x~45x,it can extend to 3.5x~180x
Zoom Driver	Horizontal Axial Driver Control Knobs
Working Distance	100mm(effective distance),it can extend to 30mm~165mm
Microscope Head	Binocular Observe Head with 45°incline and 360°rotatable
Microscope Head	Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter
Microscope Holder	Focus adjustment range 50mm,focusing knobs elasticity adjustable Drawtube diameter 76mm
Microscope Stand	Pillar diameter 32mm and high 240mm
Microscope Stand	Black & white working board diameter 95mm
Auxiliary Objective	0.5X/165mm,1.5X/45mm and 2X/30mm optional

Optical Specification:

Eyepiece	Main Body	Auxiliary Objective
	Main Body	0.5X	1X	1.5X	2X
	0.7x~4.5x	(#416-312)	(#416-322)	(#416-332)	(#416-342)
10X	Total Magnification	3.5x~22.5x	7x~45x	10.5x~67.5x	14x~90x
10X	Field of view	57.1~8.9mm	28.6~4.4mm	19~3mm	14.3~2.2mm
15X	Total Magnification	5.25x~33.75x	10.5x~67.5x	15.75x~101.25x	21x~135x
15X	Field of view	43.8~ 6.7mm	21.1~3.3mm	14.3~2.2mm	10.7~1.7mm
20X	Total Magnification	7x~45x	14x~90x	21x~135x	28x~180x
20X	Field of view	28.6~ 4.4mm	14.3~2.2mm	9.5~1.5mm	7.1~1.1mm
Working Distance(mm)		165	100	45	30

Software Introduction

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
