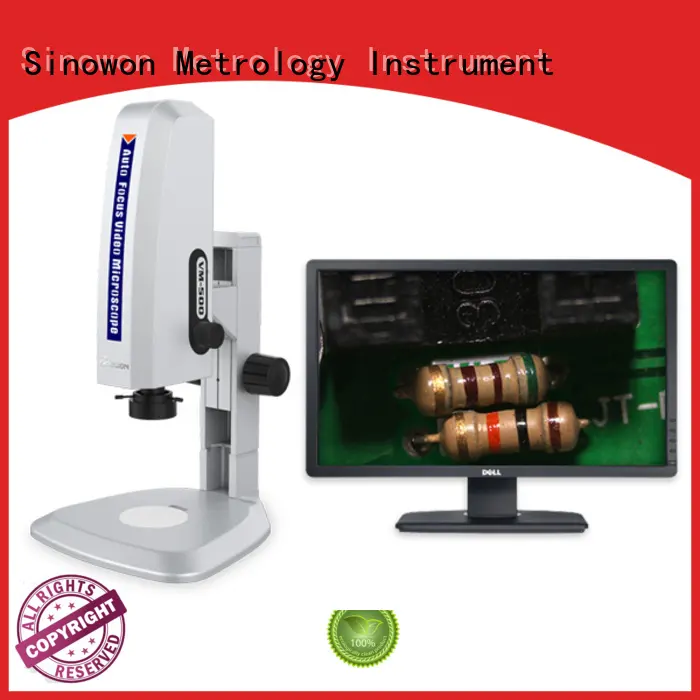

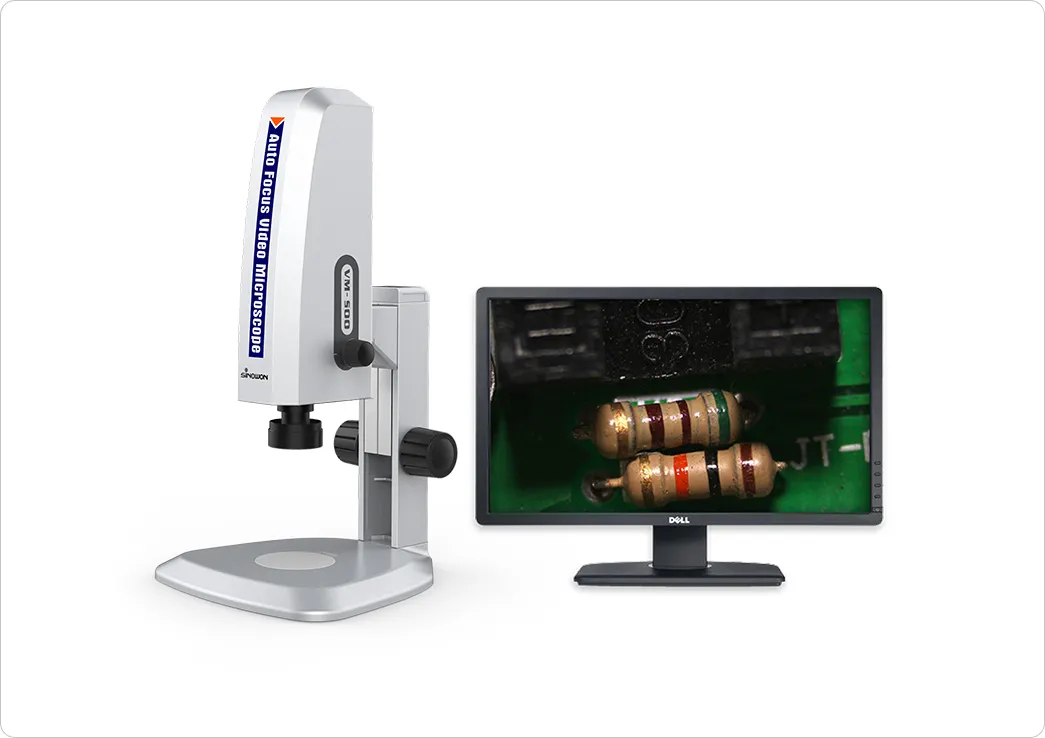

china microscope generous printed circuit board fashion Sinowon Brand Video Microscope

Model:
VM-500
Code#:
451-450
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Company Advantages
1. Imported materials and accessories are used in product manufacturing. Thanks to the unique design of china microscope, we are proud to present Sinowon products to customers all over the world. Imported materials and accessories are used in product manufacturing
2. The quality is reliable and the service life is long. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. Video Microscope adopts digital binocular microscope principle and reasonable design, ensurign good digital video microscope effect. It is supported by multiple languages say English, Turkish, and German.
4. digital microscope review has established the product image of high quality, attractive appearance, and digital measuring microscope. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
5. vision microscope has all the features that matter on board. The product is highly praised in many exhibitions such as Shanghai Electronica China Show


china microscope generous printed circuit board fashion Sinowon Brand Video Microscope 7

Application:

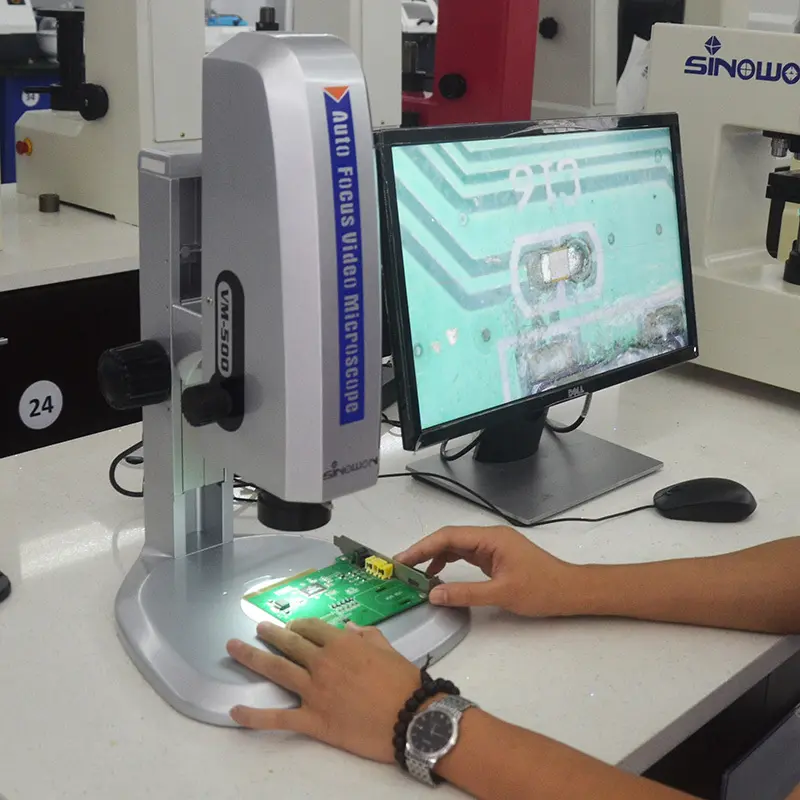

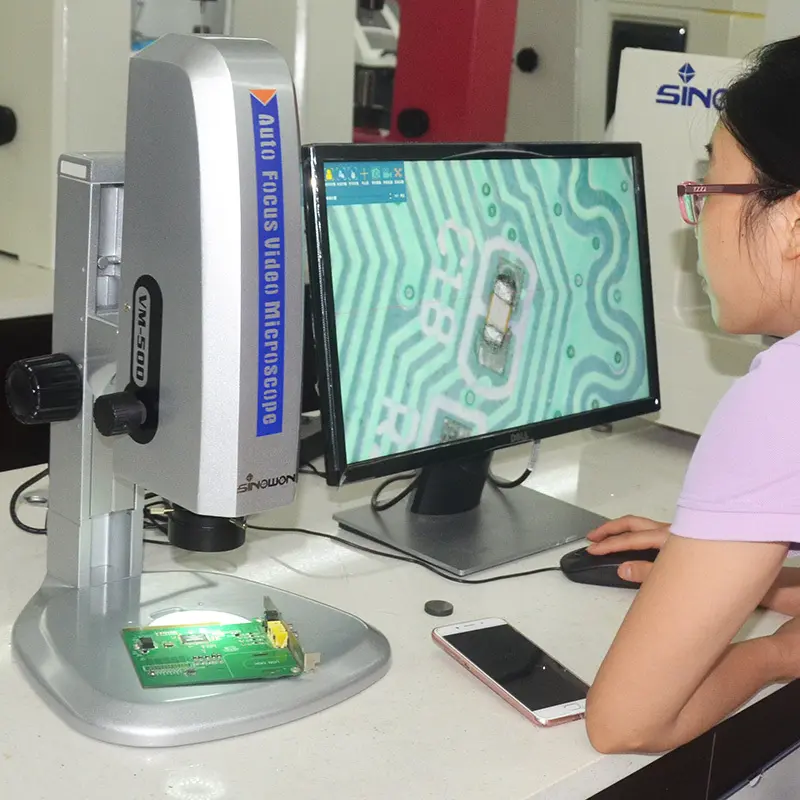

Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.


Product Feature


Integral design, exquisite, fashion, generous;

Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;

With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;

With adjustable LED surface reflection illumination, is able to control brightness independently;

With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.


Specification



Product NameAuto Focus Video Microscope
ModelVM-500
Code#451-450
Electronic Magnification32X~206X( VGA 4:3 21”Monitor;)
Optical Objective0.7X~4.5X Horizontal Zoom Lens
Zoom ratio:6.5:1
0.5X C-mount Camera Adapter
Camera Parameters2 million pixel (1920*1080)
Image Size:1/2.86”
Frames Per Second:30fps
Camera FunctionAuto Focus
Cross Line
Photograph and Video Record
Output: HDMI
White Balance; Brightness Control; Digital Noise Reduction
IlluminationSurface: Adjustable LED Surface Illumination
Ring Fiber Illumination Optional
Microscope StandZ-axis Travel: 100mm
Coarse Lifting System
Electrical ParametersAC90~240V;50~60HZ
Dimension310*285*500 mm
Weight6Kg


Accessories:


Product NameSpecification
Microscope Main BodyVM-500
Power AdapterDC5V(Camera)、DC12V(Illumination)
MonitorOptional 4:3 21.5”
Operation Manual/Warranty Card/Certificate/Packing listVM-500


Field of View:


Auxiliary
objective
Field of view (0.5X Camera Adapter)
0.7X1X2X3X4X4.5XRemark
LengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonal
0.5X
WD:108mm
Magnification 0.18X-1.12XOptional
25.2922.8634.0917.7016.0023.868.858.0011.935.905.337.954.434.005.973.933.565.30
1.0X
WD:91mm
Magnification 0.35X-2.25XStandard
12.6411.4317.048.858.0011.934.434.005.972.952.673.982.212.002.981.971.782.65
2.0X
WD:35.3mm
Magnification0.70X-4.50XOptional
6.325.718.524.434.005.972.2122.981.481.331.991.111.001.490.980.891.33


Product Details



china microscope generous printed circuit board fashion Sinowon Brand Video Microscope 8
china microscope generous printed circuit board fashion Sinowon Brand Video Microscope 9
