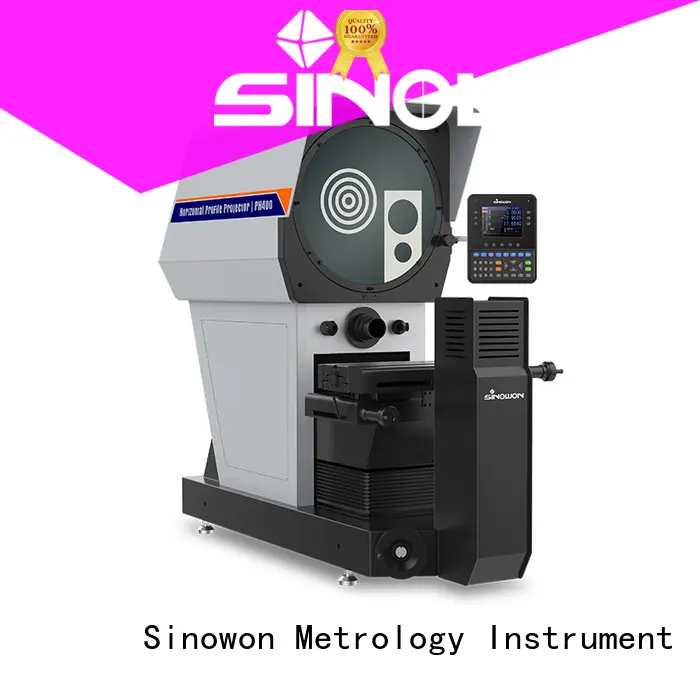

Digital Horizontal Profile Projector PH400-3015 Ø400mm

Model:
PH400-3015
Code#:
512-400
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Enterprise Strength
  • Sinowon adopts advanced production and management technology to carry out organic production. We also maintain close partnerships with other well-known domestic companies. We are committed to providing customers with quality products and professional services.
Company Advantages
1. As our optical projector are made of horizontal optical comparator, they are both high quality and refined.
2. This product has excellent performance and long service life.
3. The product quality completely conforms to the industry standard.
4. More and more clients have established long-term business relationships for the comprehensive service by professional Sinowon staff.


Digital Horizontal Profile Projector PH400-3015 Ø400mm 7



Product Feature


The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;

Coating process reflector, clearer image and great dustproof;

Adjustable contour and surface illumination, to meet with difference workpiece demand;

Imported high light and long using life LED illumination ,to ensure precision measurement demand;

High resolution optical system with clear image and magnification error is less than 0.08%;

Powerful Bi-axial fan cooling system,highly increase using life;

Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

Built-in Mini-printer, can print and save data;

With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot switch ,clamp, etc.


Specification



Product NameØ400mm Digital Horizontal Profile Projector
ModePH400-3015
Code #512-400
Working Stage Size455x126mm
Working Stage Travel300x150mm
Focusing120mm
Accuracy≤3+L/200(um)
Resolution0.0005mm
Loading Weight15Kg
ScreenDia:412mm,Measurement Range ≥ Ø400
Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’
Digital ReadoutDP400 (510-340)Multifunction colorful LCD digital readout
IlluminationContour Illumination:3.2V/10W LED  Surface Illumination:220V/130W LED
Working EnvironmentalTemp:20℃±5℃,Humidity:40%-70%RH
Power SupplyAC110V/60Hz; 220V/50Hz,200W
Dimension (L×W×H)109 x 1455& x 633mm
Package Dimension(L×W×H)1157x1355x653mm
Gross/Net Weight350/300kg


Optional Objectives


Magnification5X10X20X50X
Field of Viewφ80mm φ30mm φ15mm φ6mm
Working Distance75mm75mm69mm44mm


Product Details



Digital Horizontal Profile Projector PH400-3015 Ø400mm 8
Digital Horizontal Profile Projector PH400-3015 Ø400mm 9
Digital Horizontal Profile Projector PH400-3015 Ø400mm 10
Digital Horizontal Profile Projector PH400-3015 Ø400mm 11
