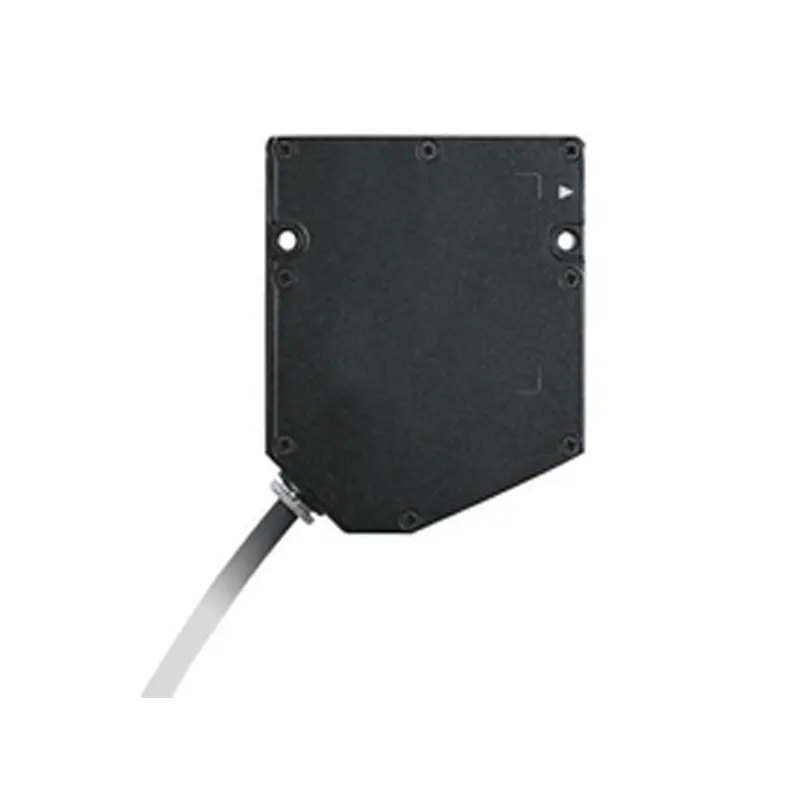

digital linear measuring scale lens video linear scale Sinowon Brand

Reference distance

30 mm (Diffuse   reflection),23.5 mm (Specular reflection)

Measuring range

±5 mm (Diffuse   reflection),±4.5 mm (Specular reflection)

Light source

Type

Red semiconductor   laser

Wavelength

655nm (Visible   light), Class 3R laser product (JIS C6802)

Laser Class

Class 3R (IEC   60825-1), Class IIIa (FDA CDRH Part 1040.10)

Output

4.8 mW

Spot diameter (at   reference distance)

Approx. ø30 µm

Linearity

±0.05% of F.S.   (F.S.= ±5 mm)^*1

Repeatability

0.05 µm (0.01 µm)^*2*3

Sampling frequency

20/50/100/200/500/1,000   µs (Selectable from 6 levels)

LED display

Near the centre of   the measurement: Green lights
  Within the measurement area: Orange lights
  Outside the measurement area: Orange flashing

Temperature   characteristics

0.01 % of F.S./°C   (F.S. = ±5 mm)

Environmental   resistance

Enclosure rating

IP67 (IEC60529)

Ambient light

Incandescent lamp   or Fluorescent lamp: 10,000 lux max.

Ambient temperature

0 to +50 °C

Relative humidity

35 to 85 % RH (No   condensation)

Vibration   resistance

10 to 55 Hz, Double   amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

Material

Aluminium die-cast

Weight

Approx. 280 g   (including the cable)

^*1 This value was taken when measuring   a KEYENCE standard target (ceramic) in standard mode.
^*2 Consult your nearest KEYENCE representative for the Class   IIIa type with increased repeatability.
^*3 These values were taken when measuring a KEYENCE standard   target (SUS) at a reference distance and with the number of averaging   measurements set to 4,096
