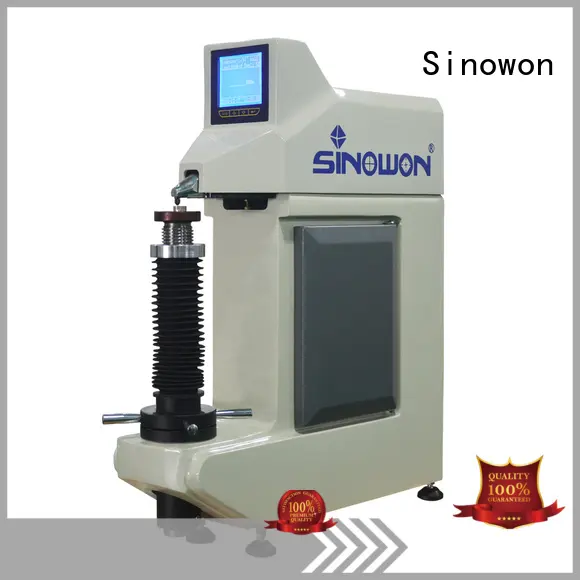

digital rockwell machine manufacturer for thin materials

Company Advantages
1. Sinowon hardness tester for sale is designed by a professional design team which has been putting efforts into designing. It is well recognized by more than 5000 customers
2. The product has been widely recognized in the industry through the broad sales network. A quality control system is implemented for the product
3. The product has high rigidity. Its metal materials have the ability to withstand elastic deformation when applied with pressure. The production is supported by professional engineers
4. The product's design is simple, intuitive and unique enough to stand out from the competition on the shelves. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
5. The product is available in a variety of colors, including all standards of colors for traditional bedding. It is aimed at more than 60 countries and regions for exports

◆ Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material;

◆ Horizontal Convex noise design,  which is suitable for internal and external testing;.

◆ Testing on surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm;

◆ Testing force is set automatically according to testing scale;

◆ Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales;

◆ Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port;

◆ Test value can be transformed to the value of HB, HV, HK and σb value;

◆ The tester meeting all the following standard such as ISO 6508, ASTM E18.

Commodity	Digtial Rockwell Hardness Tester	Digital Superficial Rockwell  Hardness Tester	Digital Twin Rockwell  Hardness Tester
Model	SHR-150N	SHR-45N	SHR-145N
Code #	811-308	811-318	811-328
Total test force	60Kgf(588.4N) 100Kgf(980.7N) 150Kgf(1471N)	15Kgf(147.1N) 30Kgf(294.3N) 45Kgf(441.3N)	15Kgf(147.1N),   30Kgf(294.3N), 45Kgf(441.3N);   60Kgf(588.4N), 100Kgf(980.7N),150Kgf(1471N)
Rockwell Scale	SHR-150N: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Superficial Rockwell Scale	SHR-45N: HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Twin Rockwell Scales	SHR-145N:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV; 15T,30T,45T;15Y,30Y,45Y; 15N,30N,45N
Dwell Time	2-60s adjustable
Hardness Indication	High definition backlight LCD
Resolution	0.1HR
Data-Output	RS-232
Conversion Scale	HV、HBS、HBW、HK
Loading Control	Auto Loading/Dwell/Unloading
Max. Height of Specimen	260mm
Throat	150mm
Power Supply	AC 220V/50Hz;AC110V/60Hz
Dimension	710 x210 x830mm
Packing Dimension	820x520x1000mm
Net Weight /Gross	125Kg/95Kg
Execution standard	GB/T230.2, EN-ISO 6508 , ASTM E-18

Company Features
1. We have invested in the most technologically advanced production equipment. They boost the productivity of our business and thereby allow us to make more sales and continue to steadily expand.
2. One major tenet is tohardness tester for sale . Contact us!
