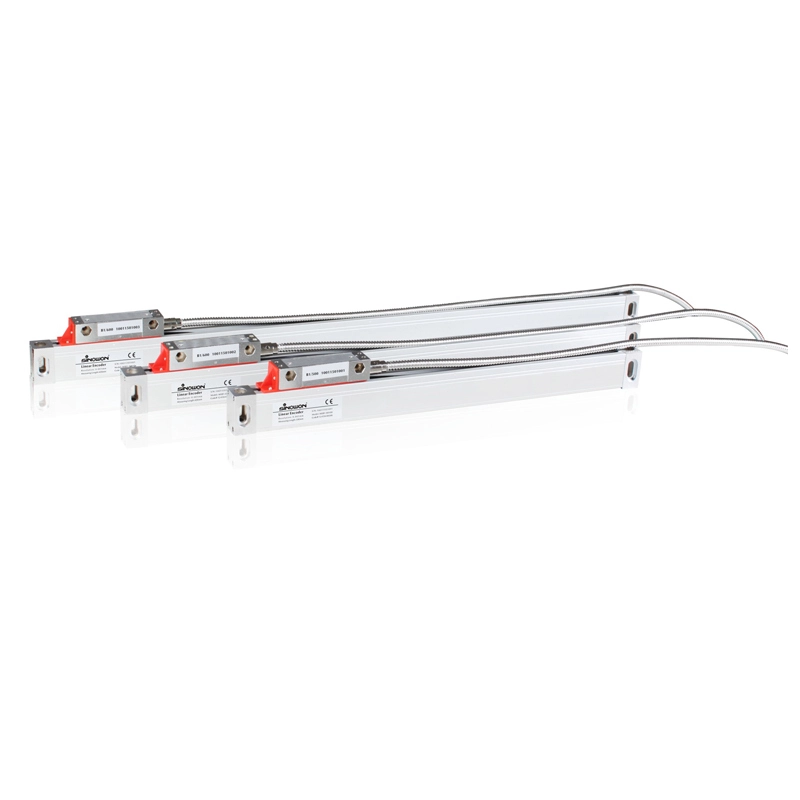

Precision Linear scales 1
Precision Linear scales 1

Precision Linear scales

    oops...!

    no product data.

    Go to homepage


    Precision Linear scales 2


    1. Application of Linear Scales

    SG series of Linear Scales are widely used with Sinowon profile projectors, toolmaker microscopes, video measuring machines etc. SG Linear scale has good dynamic performance, great moving speed, and perfect reliability, not only can they meet the requirements of normal shaft dynamic performance, but also the requirements of direct drive equipment of highly dynamic performance.



    2. Features of Linear Scales

    l  It adopts the advanced coating replication technology of glass grating, which ensures the accuracy of glass pitch, the benchmarks of main and auxiliary grating.

    l  It adopts the imported electronic components and uses the latest STM chip mounting technology that ensures the durability of electronic components for each linear encoder.

    l  Scan read system adopts the reliable and durable five-bearing design, it ensures the movement of optical induction system smoothly and durably.

    l  It adopts the double anti-oil, high elasticity and anti-aging plastic as dust-seal, it ensures optimum sealing performance and minimal friction force.

    l  It adopts the positioning spring as position controller for the scan read, it ensures the movement of bearing pulley durably and smoothly even in the condition of high-speed.

    l  It is strictly inspected by testing instrument for each glass, electronic components, dust-seal and snake skin tube, it ensures that each linear encoder can pass the calibration of the laser intrferometer smoothly.


    3.Output Signal Schematic Diagram3


    Precision Linear scales 3



    4.Technical Specification:

    Product NameLinear Scale SG Series
    ModelSG1SG0.5SG0.1
    Resolution1μm0.5μm0.1μm
    Max. Working Speed60m/min60m/min10m/min
    Grating Pitch20μm20μm10μm
    Output SignalTTL,RS422TTL,RS422TTL,RS422
    Grating Measuring SystemTransmission infrared optical measurement system, infrared wavelength:880(um)
    Measuring Length25~600mm
    Scan Unit Rolling System90° five ball bearing rolling system
    Working Voltage5V±5%DC
    Working EnviromentTemperature : -10~45°C; Humidity:≤90%
    Accuracy50≤ML≤500mm :  Accuacy: ±3μm
    510≤ML≤600mm: Accuracy: ±5μm

    5. Order Code# of Linear Scales #

    Sinowon Precision Linear scales of Optical Measuring Machines

    Working Length (mm)

    50

    100

    150

    200

    250

    300

    400

    500

    600

    Resolution 1um

    SG1-050

    SG1-100

    SG1-150

    SG1-200

    SG1-250

    SG1-300

    SG1-400

    SG1-500

    SG1-600

    Resolution 0.5um

    SG0.5-050

    SG0.5-100

    SG0.5-150

    SG0.5-200

    SG0.5-250

    SG0.5-300

    SG0.5-400

    SG0.5-500

    SG0.5-600

    Resolution 0.1um

    SG0.1-050

    SG0.1-100

    SG0.1-150

    SG0.1-200

    SG0.1-250

    SG0.1-300

    SG0.1-400

    SG0.1-500

    SG0.1-600

              Remark: The standard signal is single TTL, the optional signal is double TTL.


    6.Scales Connector pin functions:

    Pin No.SignalSignal  Wire ColorTypeCurrent Spec
    1+5VRedImput35mA
    20VOrangeImput35mA
    3AYellowOutput4mA
    4BGreenOutput4mA
    5RBrownOutput4mA
    6
    7
    8
    9FGSilver
