A professional manufacturer of measuring & testing equipment.

Digital Vertical Profile Projector  Ø400mm Optical Comparator 1

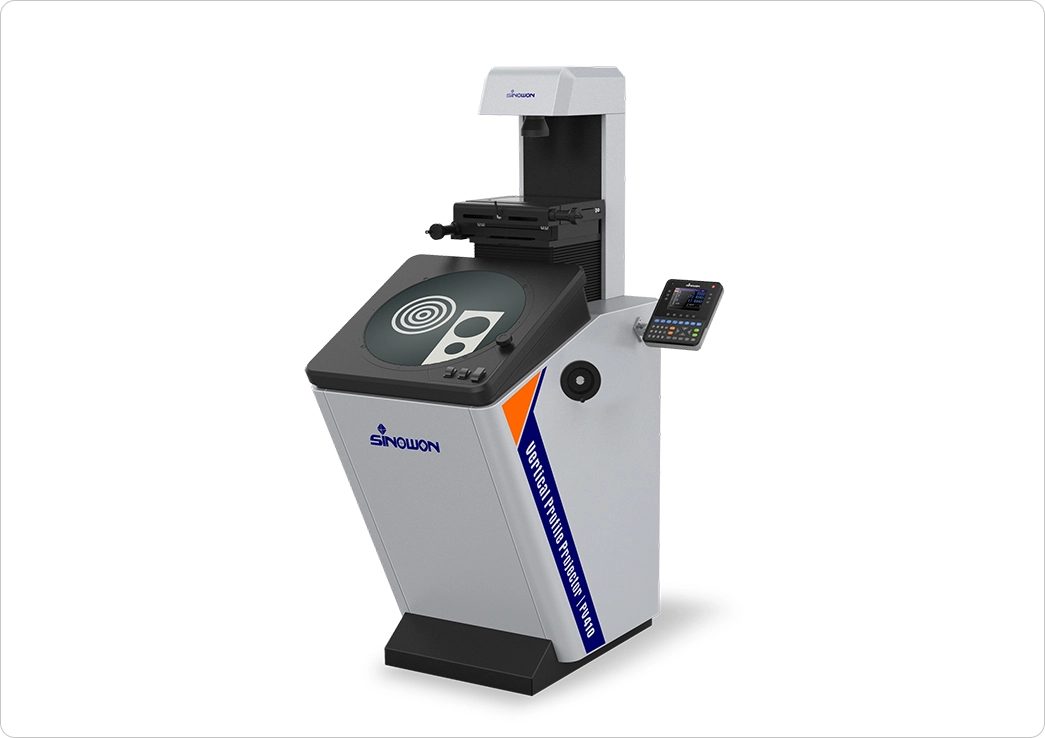

Digital Vertical Profile Projector  Ø400mm Optical Comparator 2
Digital Vertical Profile Projector  Ø400mm Optical Comparator 1
Digital Vertical Profile Projector  Ø400mm Optical Comparator 2

Digital Vertical Profile Projector Ø400mm Optical Comparator

Model:
PV410-2010
Code#:
#511-440
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Enterprise Strength
  • Sinowon keeps pace with the major trend of 'Internet +' and involves in online marketing. We strive to meet the needs of different consumer groups and provide more comprehensive and professional services.
Company Advantages
1. Sinowon vertical projector is specially made of well-selected and optimum materials.
2. Its developing requires stringent testing to ensure quality and performance. Only those that pass rigorous tests will go to the marketplace.
3. The product only consumes a little power energy with high efficiency. Customers say the operating cost of this product is lower than they expect.
4. People who have worn it for more than a year say that the product is really helpful in odor reduction, sweat absorption, and bacteria elimination.


Digital Vertical Profile Projector  Ø400mm Optical Comparator 3



Product Feature


The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;

Coating process reflector, clearer image and great dustproof;

Adjustable contour and surface illumination, to meet with difference workpiece demand;

Imported high light and long using life LED illumination ,to ensure precision measurement demand;

High resolution optical system with clear image and magnification error is less than 0.08%;

Powerful Bi-axial fan cooling system,highly increase using life;

Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

Built-in Mini-printer, can print and save data;

With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot switch ,clamp, etc.


Specification



Product NameDigital Vertical Profile Projector
ModelPV410-2010
Code##511-440
Table Size308x408mm
Glass Table Size198x306mm
XY Travel Range200x100mm
Z Travel Range100mm (调焦)
Accuracy≤3+L/200(um)
Resolution0.001mm
Max. Workpiece Load10Kg
ScreenEffective Diameter:φ412mm ≥ Ø400mm
 Screen rotation 0~360° ; Resolution: 1’or 0.01°, accuracy: 6’
CounterDP400 (510-340)powerful digital readout
IlluminationTransparent:3.2V/10W LED
     Reflected illumination :3.2V/10W LED
Operating Environment20℃±5℃,RH 40%-70%RH
PowerAC110V/60Hz; 220V/50Hz,150W


Objective lens:


MagnificationPV410-5XPV410-10XPV410-20XPV410-50X
View fieldφ80mm φ40mm φ20mm φ8mm
Working distance65mm80mm67.7mm51.4mm




Company Features
1. With advanced machines, Sinowon Innovation Metrology Manufacture Limited. is highly efficient in producing vertical projector .
2. comparator measuring equipment is manufactured with proven and cost-effective production processes.
3. Fully satisfying the needs of customers with our heart and soul is the requirement of Sinowon to each staff. Get info! The motto of Sinowon Innovation Metrology Manufacture Limited. is optical profile projector wikipedia . Get info! 'Persistence, Efficiency ' is Sinowon Innovation Metrology Manufacture Limited.'s motto. Get info!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
