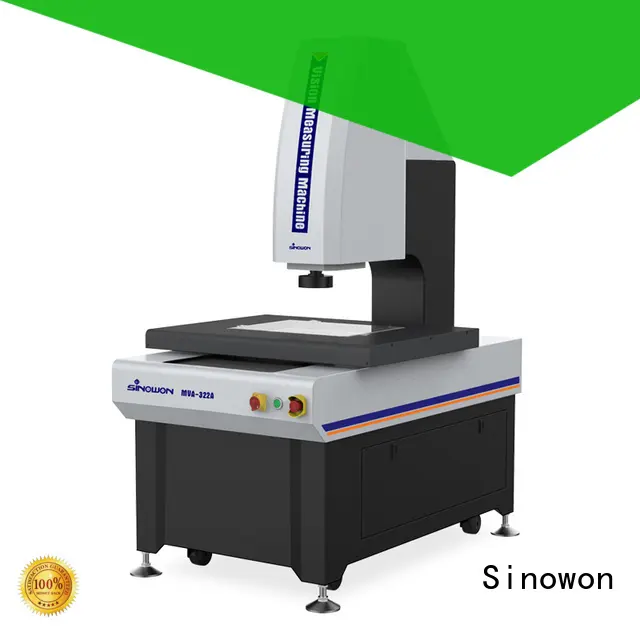

MVA series is a cantilevered high accuracy fully automatic vision measuring machine developed for GD&T measurement, with three axis automatic control. It equipped with Automatic focusing, automatic lighting control, optimization of hardware and software configuration to achieve the measurement of linear and geometrical dimensions.
Product Characteristics
◆ XYZ three axis CNC automatic control and accurate positioning;
◆ Granite base and column, good stability;
◆ Precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
◆ Imported 0.5 um high precision linear scale to ensure the positioning accuracy and measurement accuracy of the system;
◆ High resolution color camera to meet the needs of clear observation and accurate measurement;
◆ 6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;
◆ With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division;
◆ Powerful function and easy operation iMeasuring 4.1 Measuring Software to enhance quality control;
◆ Automatic measurement program can be set to complete batch measurement efficiently and quickly.
Technical Specification
Product Name | Cantilevered Fully Auto Vision Measuring Machine | ||||||
Model | MVA-322A | MVA-432A | MVA-542A | ||||
Code# | 523-360A | 523-370A | 523-380A | ||||
X/Y-axis Travel | 300x200mm | 400x300mm | 500x400mm | ||||
Z-axis Travel | 200mm | ||||||
X/Y/Z-3 axis Linear Scale | Imported Linear Scale Resolution: 0.5um | ||||||
Guidance Mode | Precision linear guide，double-track double slider guide. | ||||||
Operation Mode | Joystick controller, Mouse operation, automatic detection program. | ||||||
Accuracy* | XY-axis：≤2.0+L/200um | ||||||
Z-axis：≤5+L/200um | |||||||
Repeatability | ±2um | ||||||
Video System** | High definition 1/3" Color CCD Camera, | ||||||
6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5”monitor) | |||||||
Field of View(mm) （D*H*V） | Magnification | 0.7X | 1X | 2.0X | 3.0X | 4X | 4.5X |
1/3"CCD | 8.57x6.86x5.14 | 6.00x4.80x3.60 | 3.00x2.40x1.80 | 2.00x1.60x1.20 | 1.50x1.20x0.90 | 1.33x1.07x0.80 | |
Illumination System | Contour | LED parallel contour illumination | |||||
Surface | 0~255 Stepless adjustable 5-ring 8-division LED surface illumination | ||||||
Measuring Software | Standard: iMeasuring 4.1 Fully Auto Measuring Software | ||||||
Load Capacity | 25Kg | ||||||
Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz | ||||||
Power Supply | 220V/50Hz/10A | ||||||
Dimension(W*D*H) (cm) | 1132x720x1665mm | 1280x840x1688mm | 1257x920x1640mm | ||||
Packing Size | 1290x970x1920mm | 1390x1060x1940mm | 1450x1170x1900 | ||||
Net Weight | 380Kg | 450Kg | 600Kg | ||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.
**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
0.1um imported linear scale is optional available.
Item Code for MVS Series
Sensor System | A（2.5D ) Optical Zoom lens | B（3D ) Zoom lens & MCP Touch Probe | C（2.5D ) Optical Zoom lens & Laser scanning Probe | D（3D ) Zoom Lens, Scanning and Touch probe | ||||||||
Item Code | MVA-322A | MVA-432A | MVA-542A | MVA-322B | MVA-432B | MVA-542B | MVA-322C | MVA-432C | MVA-542C | MVA-322D | MVA-432D | MVA-542D |
Software | iMeasuring 4.1 | iMeasuring 4.2 | iMeasuring 5.0 | iMeasuring 5.1 | ||||||||
MVA Series can be customized according to customers’ application requirements. Motorized coaxial zoom lens is optional for improving 2.5D measurement efficiency; MCP probe is optional for measuring geometric dimensions, while laser sensor module is selected to perform accurate measurement of glass, transparent plastic and other materials.
