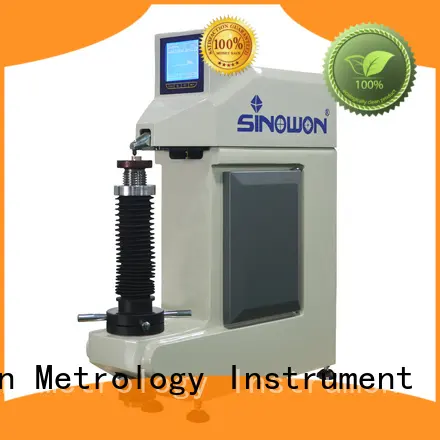

durable rockwell test customized for measuring

Company Advantages
1. Sinowon rockwell test has been strictly tested. It has passed through the environmental testing for humidity, vibration, susceptibility, drop, bump and shock.
2. Prior to delivery, the product must be rigorously inspected to ensure high quality in all aspects of performance, availability and more.
3. Sinowon Innovation Metrology Manufacture Limited. applys the advanced technology so flexibly that it can guarantee both quality and quantity while finishing the production tasks.
4. According to the customer's order requirements, Sinowon Innovation Metrology Manufacture Limited. can accurately and timely complete the production tasks with quality and quantity.

◆ Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material;

◆ Horizontal Convex noise design,  which is suitable for internal and external testing;.

◆ Testing on surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm;

◆ Testing force is set automatically according to testing scale;

◆ Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales;

◆ Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port;

◆ Test value can be transformed to the value of HB, HV, HK and σb value;

◆ The tester meeting all the following standard such as ISO 6508, ASTM E18.

Commodity	Digtial Rockwell Hardness Tester	Digital Superficial Rockwell  Hardness Tester	Digital Twin Rockwell  Hardness Tester
Model	SHR-150N	SHR-45N	SHR-145N
Code #	811-308	811-318	811-328
Total test force	60Kgf(588.4N) 100Kgf(980.7N) 150Kgf(1471N)	15Kgf(147.1N) 30Kgf(294.3N) 45Kgf(441.3N)	15Kgf(147.1N),   30Kgf(294.3N), 45Kgf(441.3N);   60Kgf(588.4N), 100Kgf(980.7N),150Kgf(1471N)
Rockwell Scale	SHR-150N: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Superficial Rockwell Scale	SHR-45N: HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Twin Rockwell Scales	SHR-145N:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV; 15T,30T,45T;15Y,30Y,45Y; 15N,30N,45N
Dwell Time	2-60s adjustable
Hardness Indication	High definition backlight LCD
Resolution	0.1HR
Data-Output	RS-232
Conversion Scale	HV、HBS、HBW、HK
Loading Control	Auto Loading/Dwell/Unloading
Max. Height of Specimen	260mm
Throat	150mm
Power Supply	AC 220V/50Hz;AC110V/60Hz
Dimension	710 x210 x830mm
Packing Dimension	820x520x1000mm
Net Weight /Gross	125Kg/95Kg
Execution standard	GB/T230.2, EN-ISO 6508 , ASTM E-18

Company Features
1. Established years ago, Sinowon Innovation Metrology Manufacture Limited. is known as a professional producer and exporter, specializing in designing and manufacturing rockwell hardness test equipment .
2. From design to production, our rockwell test is checked by Sinowon.
3. By adopting the first-class technical facilities, Sinowon endeavors to provide the best. Check now! Sinowon Innovation Metrology Manufacture Limited.'s bold strategy of rockwell hardness test indenter gives it a competitive advantage. Check now! Sinowon values and practices the core values of rockwell hardness machine . Check now! To provide more and better high quality rockwell hardness examples , Sinowon aim to create a trustworthy and responsible enterprise. Check now!
