durable vicker hardness tester manufacturer for small parts

Company Advantages
1. Sinowon microindentation hardness testing is designed and manufactured under the supervision of experts by employing the latest technology following industry standards. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
2. The product helps create a relaxing bathing or washing atmosphere, representing different lifestyles. It is especially suitable for those who think highly of life taste. The product is verified by ISO9001:2015 to be quality ensured
3. This product has long-lasting performance and strong usability. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology

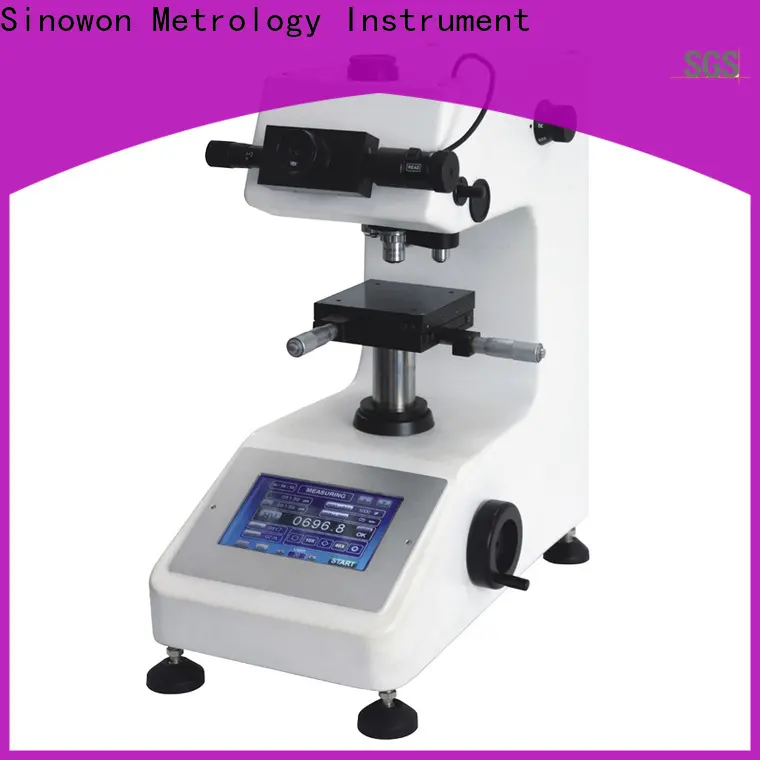

◆ Micro-Vickers hardness tester with colour touch screen;

◆ 8 inches colour touch screen , high resolution , easy to operate;

◆ Strong and stable body;

◆ LED illumination , light , adjustable , long life and no heat;

◆ Data storage for review and printing;

◆ Rotatable turret with five working positions;

◆ 250 lines encode with more precise measurement;

◆ Conversion between different scales;

◆ Two indenters available (Vickers and Knoop);

◆ Can be developed to semi-automatically or full-automatically system.

Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 10gm to 1kgf, although "Macro" Vickers loads can range up to 50 kg or more.

Micro Vickers and Knoop hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Model			MicroVicky VH1010
Code#			823-118
Test   Load	gf		10 / 25 / 50 / 100   / 200 / 300 / 500 / 1000
	mN		98.07/ 245.2/   490.3/ 980.7/ 1961/ 2942/ 4903/ 9807
Loading Mechanism			Automatic loading   and releasing method 50 ~100 µm/s
Dwell Time			5 ~ 99 s
Turret Mechanism			Automatic
Objective			40x/10x
Magnification of   Microscope			For measurement   :400x ( Objective 40X and Eyepiece 10X )
			For observation :   100x ( Objective 10X and Eyepiece 10X )
Mix. Measuring unit			0.1µm   (0.01µm for TS type)
Max.Specimen   Height			90mm
Max.Specimen Depth			110mm
Measuring Hardness   Scale			HV,  HK
X-Y Stage		Type	Manual
		Dimensions	200 × 180 mm
		Max. movement	100 × 100 mm
		Min. micro   graduation	1/100 mm
Light Source			LED Illuminator
Accuracy			Conform to :  JIS B -7735, ASTM E-384 and ISO 146
Photographic Device			Capable to mount   photographic device  ( Option)
Dimensions			W190 × D 430 × H   520 mm
Weight			50Kg
Power Supply			Single phase AC 220   V  50/60 Hz

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a reliable manufacturer in the domestic and international market, leveraging years of experience in the design and production of microindentation hardness testing .
2. Applying the best technology to the vicker hardness tester has become a good idea.
3. We are active in implementing business sustainable development. During our production, we will minimize electricity consumption by adopting power saving facilities and reduce water consumption by recycling reusable water.
