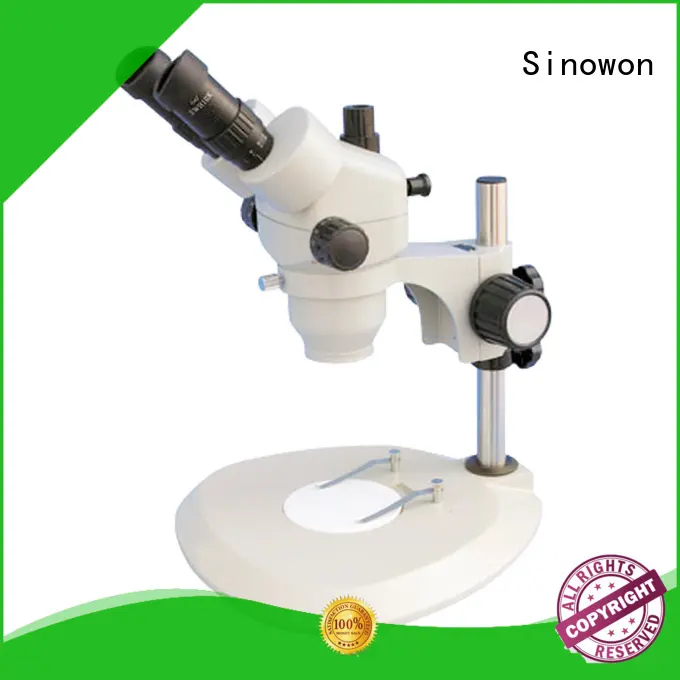

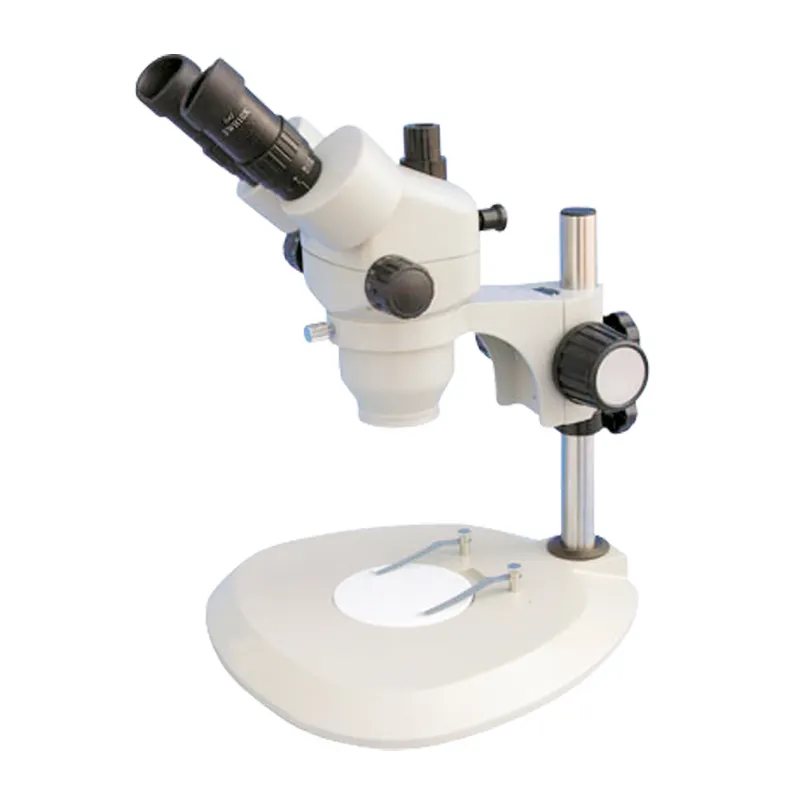

easy operation medical service stereoscopic microscope Sinowon Brand
Model:
A5
Code#:
411-222
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Product Comparison
Compared with other products in the same category, has the following major features.
-
v s
1. Such design will certainly make stereoscopic microscope even more appealing to customers. It, up to the requirements from different industries, is widely applied
2. Many international famous manufacturers choose this product for its premium quality. Sinowon's focus is on performance of products including stereo microscope with camera.
3. It is supported by multiple languages say English, Turkish, and German. Sinowon wins numerous customer's trust by reliable quality and digital stereo microscope.
◆ With Zoom A5(binocular) and Zoom A5T(trinocular);
◆ Brand-new optical design, the best reproduction and true color image;
◆ Kinds of stands and attachments are available;
◆ Applied to modern biology research, semiconductor and the other science and technology industry field to meet high precision requirement.
Specification
| Model | Binocular Zoom A5 |
| Code# | 411-222 |
| Objective | 0.7x~4.5x Zoom Objective, Zoom Ration 6.4x |
| Eyepiece | High eye-point and wide-field eyepiece WF10X/20mm Optional WF15X/15mm,WF20X/10mm and object micrometer is available |
| Magnification | 7x~45x,it can extend to 3.5x~180x |
| Zoom Driver | Horizontal Axial Driver Control Knobs |
| Working Distance | 100mm(effective distance),it can extend to 30mm~165mm |
| Microscope Head | Binocular Observe Head with 45°incline and 360°rotatable |
| Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter | |
| Microscope Holder | Focus adjustment range 50mm,focusing knobs elasticity adjustable Drawtube diameter 76mm |
| Microscope Stand | Pillar diameter 32mm and high 240mm |
| Black & white working board diameter 95mm | |
| Auxiliary Objective | 0.5X/165mm,1.5X/45mm and 2X/30mm optional |
Optical Specification:
| Eyepiece | Main Body | Auxiliary Objective | |||
| 0.5X | 1X | 1.5X | 2X | ||
| 0.7x~4.5x | (#416-312) | (#416-322) | (#416-332) | (#416-342) | |
| 10X | Total Magnification | 3.5x~22.5x | 7x~45x | 10.5x~67.5x | 14x~90x |
| Field of view | 57.1~8.9mm | 28.6~4.4mm | 19~3mm | 14.3~2.2mm | |
| 15X | Total Magnification | 5.25x~33.75x | 10.5x~67.5x | 15.75x~101.25x | 21x~135x |
| Field of view | 43.8~ 6.7mm | 21.1~3.3mm | 14.3~2.2mm | 10.7~1.7mm | |
| 20X | Total Magnification | 7x~45x | 14x~90x | 21x~135x | 28x~180x |
| Field of view | 28.6~ 4.4mm | 14.3~2.2mm | 9.5~1.5mm | 7.1~1.1mm | |
| Working Distance(mm) | 165 | 100 | 45 | 30 | |
Company Features
1. Integrating with advanced machine and world-class technology, Sinowon always develops unique stereoscopic microscope.
2. Except strict quality inspection, our experts are also skilled at researching and developing good stereo microscope.
3. We repeatedly analyze the needs of stereo zoom microscope. Get more info!
