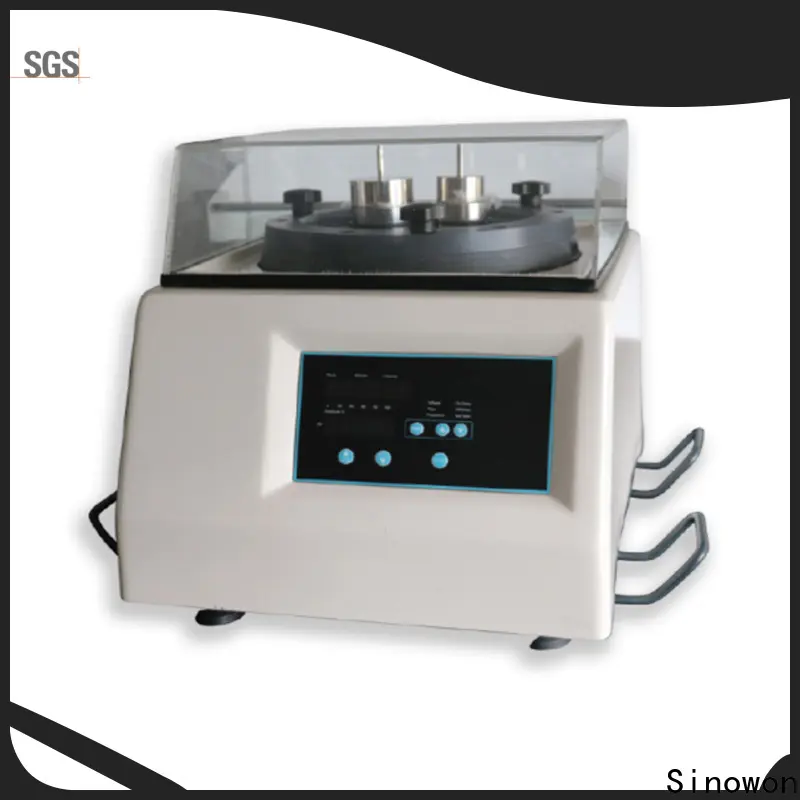

VP-300A is an automatic vibratory polisher designed to prepare high quality polished surfaces on a wide variety of materials, especially for electron-backscatter diffraction (EBSD) applications. The high frequency vibration in horizontal motion produces a very effective polishing action to remove minor deformation remaining after mechanical preparation and reveal the stress-free surface. Ideal for EBSD specimens preparation.
● Frequency and voltage controls. By adjusting the vibrating frequency, different size specimens can be polished. By changing the applied voltage, the speed of the polishing action can be easily controlled;
● Timer control. Stop automatically;
● Capable of handling small or large specimens;
● Multiple size holders (1-inch up to 2-inch diameter, others can be customized);
● Robust and durable design;
● Easy to use and service;
● Ideal for all materials.
Commodity | Automatic Vibratory Polisher |
Model | VP-300A |
Code# | 712-412 |
Bowl Size (mm) | Ø305mm /12 Inch |
Vibratory Frequency | 0~240Hz |
Power Supply | 110V/60Hz, 220V/50Hz |
Motor | 550W |
Dimension (WxDxH) | 530*660*470 |
Weight | 135Kg |
Specimen Holder, 1.25inch | ● 3PCS |
Holder Weights, 1.25inch | ● 3PCS |
Lever Plate for 1.25inch | ● 1PCS |
Polishing Pad | ● 1PCS |
Other Holders Weights and Lever plate | ○ 1inch ○ 1.5inch ○ 2inch, Optional Available |
●Standard○ Option
