efficient measuring machine with good price for automobile parts

Company Advantages
1. Sinowon vmm measuring machine has passed through a comprehensive range of quality control tests to make sure it is totally free of hazardous substances. It is aimed at more than 60 countries and regions for exports
2. Sinowon Innovation Metrology Manufacture Limited. has the support of theSinowon brand and the overall strength of Sinowon Metrology Instrument. The product is verified by ISO9001:2015 to be quality ensured
3. We are striving forward to try to achieve the great performance of measuring machine to make it more practical for customers. The product performs well in program control and material use reduction
4. The efforts of our team finally worked out to produce measuring machine with vmm measuring machine . It is well recognized by more than 5000 customers

Brief Induction:

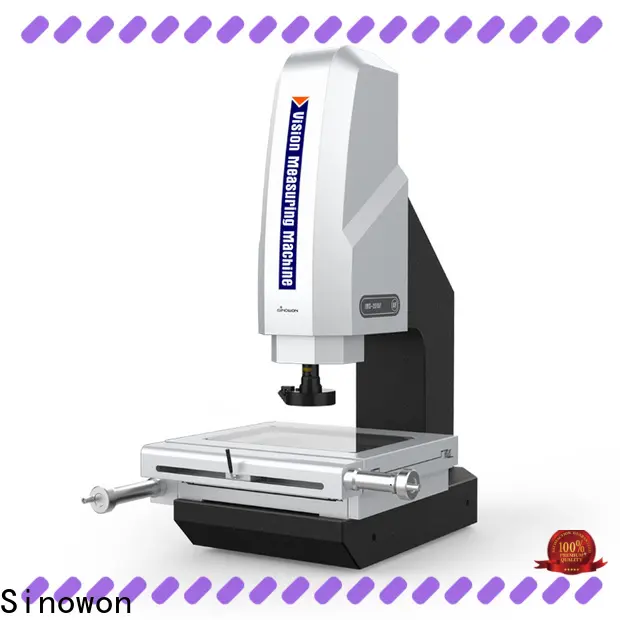

iFocus is the 2.5D high accuracy semi-auto geometric vision measuring machines with optical detent zoom lens, and the Z-axis focus is motorized by the DC servo motor and it is adjustable by the software, it is widely applied at the industry of 3C, semiconductor, PCB, automobile parts, medical parts, precise molds, aviation and aerospace, etc.



Product Characteristic:

l  High precision marble base and pillar ensures the high stability of vision measuring system;

l  High precision toothless rod and fast moving locking device ensures repeatability error is less than 2um;

l  High precise working stage with 0.5um optical linear scales ensures the accuracy is less than 2.5+L/200um;

l  High definitive detent zoom lens and high resolution color camera ensures clear image without distortion;

l  With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;



Technical Specification：

Mode	iMS-2010F	iMS-2515F	iMS-3020F	iMS-4030F	iMS-5040F
Code#	521-140F	521-150F	521-160F	521-170F	521-180F
Working Table	270x350mm	408x308mm	458x358mm	608x470mm	650x580mm
Material	Marble Table	Metal Table	Metal Table	Metal Table	Marble Table
Glass Table	142x242mm	306x198mm	356x248mm	456x348mm	541x441mm
X/Y-axis Travel	200x100mm	250x150mm	300x200mm	400x300mm	500x400mm
Z-axis Travel	High-precision linear guide and servo motor   control system , working travel 200mm
X/Y/Z-axis Travel	0.0005mm
X/Y-axis Accuracy	≤2.5+L/200(um)
Hysterisis Error	2um
Base and Pillar	High Accuracy Jinan Qing Marble
Illumination System(Software Adjustment)	Surface: Stepless Adjustable 4-ring 8-division   LED Cold Illumination, every division can be adjust independently
	Contour: LED Parallel Illumination
	LED Laser Navigation Lights
CCD Camera	High Resolution 700TV Color CCD Camera
Zoom lens	6.5X High Resolution Detented Zoom Lens
	Magnification：0.7X~4.5X；Video Magnification：26X~172X
Working Environment	Temperature：20℃±2℃, change range < 2℃/hr
	Humidity：30% ~80%RH
	Vibration<0.002g，<15Hz
Measuring Software	iMeasuring 2.2
Operation System	Support XP，WIN7，WIN8.1，WIN 10, 32/64 operating system
Language	English, Simplified Chinese, Traditional   Chinese, other language versions can be added
Dimension(W*D*H)	677x552x998mm	790x617x1000mm	838x667x1000mm	1002x817x1043mm	1104x852x1085mm
Net Weight	150Kg	175Kg	185Kg	350Kg	380Kg

Company Features
1. Specializing in R&D, manufacture, and supply of vmm measuring machine , Sinowon Innovation Metrology Manufacture Limited. is a rapidly developing enterprise with a high recognization. Sinowon Innovation Metrology Manufacture Limited. has a profound understanding and has acquired a mastery of measuring machine technology.
2. The factory owns comprehensive production facilities which can be controlled by machines or labor. These facilities are all made with high precision and quality, which makes sure less yield loss.
3. Except for having many production lines, Sinowon Innovation Metrology Manufacture Limited. also has introduced many advanced production machines for vision inspection systems . The service philosophy of Sinowon Innovation Metrology Manufacture Limited. has always been 3d measuring equipment . Ask online!
