excellent in vision software inquire now for commercial
1. The production process of Sinowon in vision software is environmentally friendly. This involves the extraction of raw materials, the reduction of emissions, and the cycle of waste materials. The product is CE certified for the European market
2. Sinowon Innovation Metrology Manufacture Limited. always adhere to the principle of innovative ideas on in vision software . Its quality and accuracy are improved every year
3. The product stands out for its strong metal texture. It has been finely treated and polished to be free of burrs, scratches, and cracks. More than 10,000 pcs have been delivered and installed
4. The product has optimized air permeability. No matter its ventilated design nor its ultra-fiber materials are all adopted in this product to guarantee the dry environment. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
Specification

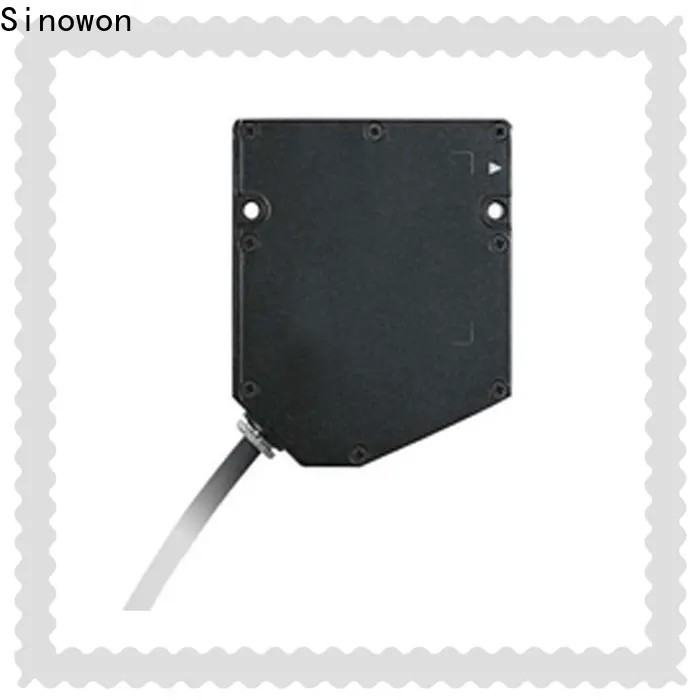

Model | LK-G30 | |
Reference distance | 30 mm (Diffuse reflection),23.5 mm (Specular reflection) | |
Measuring range | ±5 mm (Diffuse reflection),±4.5 mm (Specular reflection) | |
Light source | Type | Red semiconductor laser |
Wavelength | 655nm (Visible light), Class 3R laser product (JIS C6802) | |
Laser Class | Class 3R (IEC 60825-1), Class IIIa (FDA CDRH Part 1040.10) | |
Output | 4.8 mW | |
Spot diameter (at reference distance) | Approx. ø30 µm | |
Linearity | ±0.05% of F.S. (F.S.= ±5 mm)*1 | |
Repeatability | 0.05 µm (0.01 µm)*2*3 | |
Sampling frequency | 20/50/100/200/500/1,000 µs (Selectable from 6 levels) | |
LED display | Near the centre of the measurement: Green lights | |
Temperature characteristics | 0.01 % of F.S./°C (F.S. = ±5 mm) | |
Environmental resistance | Enclosure rating | IP67 (IEC60529) |
Ambient light | Incandescent lamp or Fluorescent lamp: 10,000 lux max. | |
Ambient temperature | 0 to +50 °C | |
Relative humidity | 35 to 85 % RH (No condensation) | |
Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions | |
Material | Aluminium die-cast | |
Weight | Approx. 280 g (including the cable) | |
*1 This value was taken when measuring a KEYENCE standard target (ceramic) in standard mode. | ||
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is fully regarded as a powerful company in the field of in vision software .
2. Our products are popular globally. They attract buyers, suppliers, and experts stretching from Asia to the world, including Europe, South America, and North America.
3. All of our business activities will comply with regulations stipulated in the Environmental Protection Act. We have introduced waste treatment facilities that are appropriately licensed for either storing, recycling, treating or disposing of the waste.
