excellent metallographic equipment design for aerospace

Company Advantages
1. Sinowon metallurgical polisher is made of safe materials to ensure safe use.
2. The quality inspection of the product is carried out by the QC team. The inspection is not only in line with international standards but meets the requirements of the customers.
3. In order to eliminate the possibility of all defects, the product needs to be thoroughly inspected by a professional quality inspector.
4. Manufactured using premium-grade raw material, this product has found its application in varied fields.

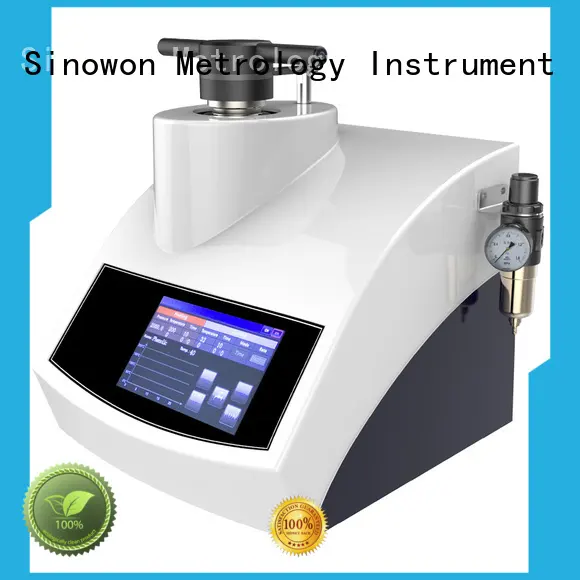

◆ Easy to use. One button start, automatic pressure loading, heating and cooling;

◆ High efficiency. New design of heating and cooling units significantly reduce the cycle time. Usually, the cycle time for 30mm diameter specimen is about 8 minutes (except AMP5, about 25minutes);

◆ User-friendly operation interface. Coloured HMI touch screen allows the users to set pressure, heating temperature, heatingtime and cooling time easily;

◆ Real-time temperature curve display;

◆ 10 memory modes which can set and save the parameters;

◆ Two specimens can be produced simultaneously with the use of a spacer;

◆ Three cooling modes: time, temperature, manual. It also has water-saving function;

◆ The cover is made of high temperature resistant composites by integral molding;

◆ Mobile plastic recirculation coolant tank is optional.

Description	AMP5	AMP6	AMP7	AMP8
Operation	Automatic
Pressure	Air	Air	Hydraulic	Hydraulic
Cooling	Automatic/manual
Mold	○25 ●30 ○40 ○50mm, others can be customized
Max Force（kgs）	300	500	1200	4000
Max Tem（℃）	180	180	200	200
Heater	600W	1.2KW	1.2KW	1.5KW
Dimension(WxDxH)	400x400x420	400x400x420	350x400x420	410x480x430
Weight	25Kg	25Kg	30Kg	48Kg
Power	220V50Hz
Air source	Need	Need
Cooling Water	Need
Mold Release	○	○	○	○
Black Resin	●	●	●	●
Green Resin	○	○	○	○
Red Resin	○	○	○	○
Conductive Resin	○	○	○	○
Edge-protection Resin	○	○	○	○
Transparent Resin	○	○	○	○
Air filter	●	●
Funnel&Spoon	●	●	●	●
Drains	●	●	●	●

●Standard○Option

Company Features
1. Primarily focusing on metallographic equipment , Sinowon Innovation Metrology Manufacture Limited. is professional and influential in this industry.
2. Having achieved high quality and low cost, metallographic polishing development is rapid which is a qualitative leap for Sinowon.
3. Sinowon Innovation Metrology Manufacture Limited. always adheres to the concept of metallurgical polisher to consolidate its business. Get more info! Each of our investments is strategic and Sinowon Innovation Metrology Manufacture Limited. hopes to bring the best interests to our customers with the integrity of the group. Get more info! Sinowon adheres to the goal of metallographic polishing equipment to provide customers with competitive products and service. Get more info! Sinowon Innovation Metrology Manufacture Limited. holds the business idea of metallurgical polishing machine and hope to succeed together with our customers. Get more info!
