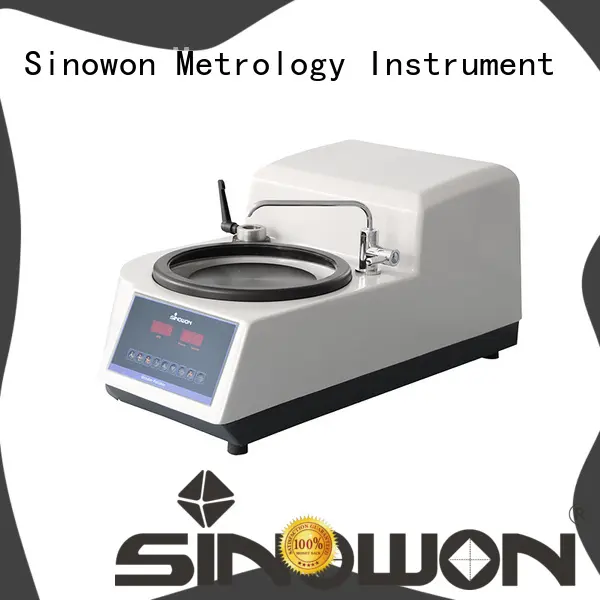

excellent metallographic equipment factory for LCD
1. Sinowon metallographic polishing equipment is a well-crafted product that adopts advanced technologies and is processed by specialized and highly efficient production lines. It is produced directly from the well-equipped facility.
2. Constant inspections: the product is manufactured under the constant inspections which are conducted by the QC team. They carry out an ongoing inspection method to ensure the quality of this product.
3. The product has good quality and reliable performance.
4. The product is perfectly suited to the customer's application needs and now enjoys a larger market share.
5. The price of this product is competitive and is widely used by people in all fields.
Product Feature
◆ Variable speed, multiple usage, metallographic sample rough grinding, finishing grinding, rough polishing & finishing polishing, it is ideal for metallographic laboratory as well as for industrial or production applications.
◆ Efficient and low-noise motor and controlling system, the machine running is reliable and low-noise.
◆ Working wheels installed for precision grinding and surface dealing can make sample surface smooth.
◆ Elegant GRP ( glass reinforced plastic) construction, rugged and durable, anti-rust.
◆ Pluggable universal faucet, convenient cleaning work area.
◆ Anti- dust Cover plate, preventing the base from dust and impurities.
◆ Removable Anti-water rings.
◆ Standard transparent bowl liner, preventing the working area from corrosion, avoiding debris build-up.
Specification
| Description | GP-1B | GP-2B |
| Work Disk Dia | φ203mm Standard | φ203mm Standard |
| Work disk jerk value | 0.005/100mm | 0.005/100mm |
| Speed (rpm) | 50-1000rpm | 50-1000rpm |
| Input Power | 220v50/60Hz(single phase) | 220v 50/60Hz(single phase) |
| Motor Power | 550w | 550w |
| Size W x H x D | 710 x 430 x 330mm | 710 x 760 x 330mm |
| Weight | 46kg | 70kg |
Standard Accessories
Sandpaper, Buckle, Anti-water rings, Anti- dust Cover r, Sandpaper, Polishing cloth, Inlet and outlet pipe, Product Manual
| Product Name | GP-1B | GP-2B |
| 203mm Working Disk | 1 | 2 |
| 203mm Sand Paper | 1 | 2 |
| Anti-water Rings | 1 | 2 |
| Anti- dust Cover | 1 | 2 |
| Inlet Tube | 1 | 1 |
| Outlet Tube | 1 | 1 |
| Power Line | 1 | 1 |
| Product Manual | 1 | 1 |
| Packing List | 1 | 1 |
Option Accessories
Diamond grinding disc, magnetic disc, magnetic anti-sticking disc, diamond spray, diamond suspension, diamond grinding paste, alumina polishing powder, alumina suspension, silicon dioxide suspension.
| Product Name | Specification | Product Name | Specification |
| Working Disk | 9, 10 inch | Sand Paper Ring | 9, 10 inch |
| Glue Magnetic Disk | 8, 9, 10 inch | Magnetic anti sticking plate | 8, 9, 10 inch |
Pluggable Tap
Integrated Forming High Strength Shell
Diamond Disk（Optional）
Fine-grinding Disc
Magnetic Polishing System
Control Panel Easy Operation
Company Features
1. Over years of development, Sinowon Innovation Metrology Manufacture Limited. has gained a good reputation in the industry. We are highly qualified in providing metallographic polishing equipment .
2. metallographic equipment is manufactured by our finest technology.
3. By cause of the fundamental principle of being optimistic, Sinowon intends to be a highly effective metallographic polishing manufacturer. Get an offer! Sinowon Innovation Metrology Manufacture Limited. will guarantee greater customer satisfaction throughout the purchasing procedure. Get an offer! Sinowon Innovation Metrology Manufacture Limited. has always been committed to becoming the most popular metallurgical instruments supplier. Get an offer!
