excellent microsoft vision ocr inquire now for industry

Company Advantages
1. The manufacturing process of Sinowon azure computer vision price is of importance. The process covers mechanical structure fabrication, structure cutting, welding, coating, and parts assembly. Its quality and accuracy are improved every year
2. Promising application prospect and tremendous market potential can be seen from this product. The product is analyzed and tested cautiously before packing
3. We have conducted various stringent tests to make sure the product is defect-free and meets the high quality standard. The quality is reliable and the service life is long
4. The product undergoes in-house strict quality testing and inspections. Many international famous manufacturers choose this product for its premium quality
5. The product is featured by versatility and outstanding performance. The product is highly praised in many exhibitions such as Shanghai Electronica China Show

◆ Precision optical design, high resolution, low distortion, excellent optical performance.

◆ Super long working distance, big FOV range.

◆ Multiply coating technology, reduce the stray light and ghost, offering high quality image.

◆ Anodized metal part, improved endurance.

◆ Compact and reliable structure.

Widely used in industry inspection, automation, electronic communication, semiconductor, scientific research, etc.

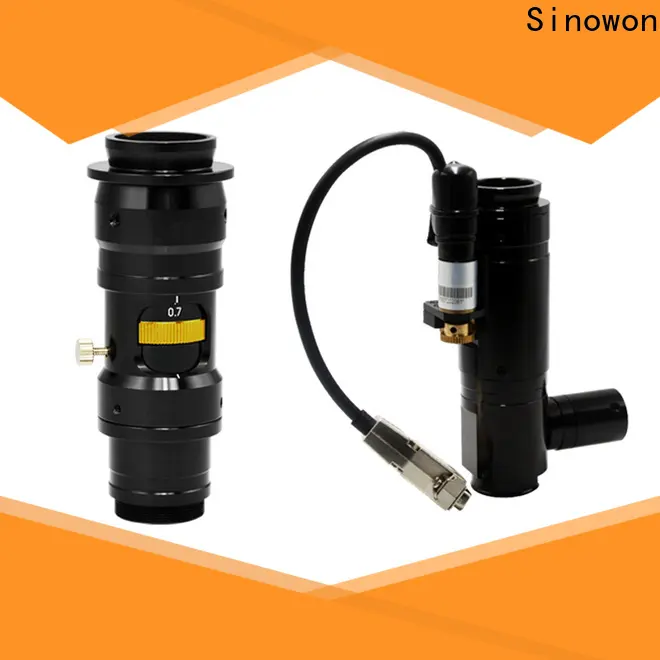

Model

Zoom745

Zoom745C

Zoom745D

Zoom745DC

Zoom745M

Zoom745HC

Type

Zoom Lens

Coaxial Illumination Zoom Lens

Detented Zoom Lens

Detented With Coaxial Illumination

Motorized Zoom

Motorized Zoom Lens With Coaxial Illumination

Zoom Control

Manual Zoom

Manual Zoom

Manual Zoom

Manual Zoom

Motorized Zoom

Motorized Zoom

Optical Magnification

0.7X~4.5X

Working Distance

90±2mm

80±2mm

Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

DOF（mm）

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085

F.No.

11.6

2.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5

Resolution （um）

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95

TV Distortion

0.019%

0.035%

0.002%

0.003%

0.004%

0.001%

0.001%

0.002%

0.002%

FOV（mm） DxHxV

2/3"

15.71x12.57x9.43

11.00x8.80x6.60

7.33x5.87x4.40

5.50x4.40x3.30

4.40x3.52x2.64

3.67x2.93x2.20

3.14x2.51x1.89

2.75x2.20x1.65

2.44x1.96x1.47

1/2"

11.43x9.14x6.86

8.00x6.40x4.80

5.33x4.27x3.20

4.00x3.20x2.40

3.20x2.56x1.92

2.67x2.13x1.60

2.29x1.83x1.37

2.00x1.60x1.20

1.78x1.42x1.07

1/3"

8.57x8.86x5.14

6.00x4.80x3.60

4.00x3.20x2.40

3.00x2.40x1.80

2.40x1.92x1.44

2.00x1.60x1.20

1.71x1.37x1.03

1.50x1.20x0.90

1.33x1.07x0.80

Max.Sensor Size

2/3"

Mount

C-Mount

Coaxial Illumination

1. Infinity parallel incident light, with shadow-free and uniform illumination.

2. Coaxial illumination structure ensure even illumination.



Detented zoom lens

1. Mechnical positiong structure, high accuracy in zoom and repetitive positioning

2. 15-divided points for mechanical positioning

3. High hardness alloy material, for a long lifespan;Precision mechanical structure.

Motorized Zoom

1.High speed in zoom and focus and high accuracy in repetitive positioning; Imported DC servo motor, closed loop control.

2.Single or double motor control system via 9-PIN RS232.

3.Stable quality performance even in the strong vibration environment.

Fine-focus Device

1. Used in narrow space, adjust fine-focus part for focusing on different height surface of parts, no need to change WD;

2. Fine focus range: 3mm-12mm;

3. Manual and motorized structure.

Company Features
1. Known as a strong competitor in manufacturing azure computer vision price , Sinowon Innovation Metrology Manufacture Limited. has a good business reputation in nearly every regions in domestic. Our R&D department is led by senior experts. These experts continuously develop new products based on market trends and introduce advanced development equipment. They are engaged in pursuing high-quality products to meet the needs of domestic and foreign markets.
2. We have manufacturing equipment arranged in accordance with lean manufacturing principles. They enable us to maintain the highest levels of efficiency and quality throughout the entire production process – from product design to custom protective shipping containers.
3. Our manufacturing plant is the heart of our business. It has been crafting high-quality products in an environment dedicated to excellence and safety. Integrity is our corporate value. We are honest with employees, customers, partners, communities, and ourselves. We will always do the right thing.
