Model:
Vexus SHB-3000D
Code#:
831-120
Accuracy:
≤± 3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T4340、JIS Z2245、ASTM—E92、ISO6507
Certificate:
CE
Inquiry
Application Scope
hardness testing machines has a wide range of applications.Sinowon has many years of industrial experience and great production capability. We are able to provide customers with quality and efficient one-stop solutions according to different needs of customers.
  • from brinell hardness testing machine from China for cast iron Sinowon 3
Company Advantages
1. brinell hardness testing machine 's mean life has been prolonged with the design of king brinell hardness tester .
2. This product has a high-rate discharge capability. The resistance of contact face between electrodes and electrolyte is lowered to a certain level, which enhances its electric performance.
3. The product features the desired hardness. It is made from the agglomeration of stone-like substances bound together with resins before being pressed into sheets.
4. The product provides a popular solution in solving industrial problems such as sealing and leakage thank to its abrasion resistance.

from brinell hardness testing machine from China for cast iron Sinowon 4



Product Feature

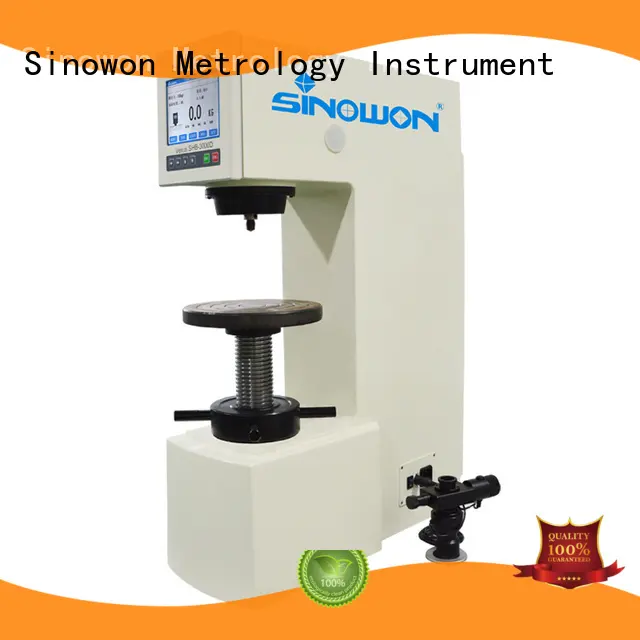

 Vexus SHB-3000D differs from like products is the close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology and digital measurement indentation technology;

 High accuracy close loop loading sensor replace traditional weights loading method, to realize automatic loading, dewell and unloading, makes easier installation and better measurement accuracy;

 Equips with 5.2” color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast;

 One touch operation of indentationmeasurement by high resolution objective, largely eliminate human error and avoid annoyance to check indentation comparison table;

 Auto hardness conversion from Brinell scale HBW to HK, HV, HRA, HRB, HRC, superficial rockwell scales, etc;

 Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.

Specification



Name

Color Touch Screen Digital Brinell Hardness Tester

Model

Vexus SHB-3000D

Code#

831-120

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Data TransferBluetooth;RS232 is optional
Brinell Range

(8-650) HBW

Hardness DisplayLCD Display
Languages

Chinese, English, German, Portuguese, Turkish,  Czech, Korean

Magnification of Eyepiece

20x Mechanic Microscope

Conversion Standard

ASTM、DIN

Vertical Space

225mm

Horizontal Space

135mm

Dimension

545 x235 x755mm

Gross/Net Weight

160Kg/130Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

GB/T4340、JIS Z2245、ASTM—E92、ISO6507

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. With the improvement of social economy, Sinowon has always kept up with the trend to enhance its strength in brinell hardness testing machine industry.
2. Our brinell hardness have been selected and awarded many times by authority institutions.
3. It is more necessary for Sinowon Innovation Metrology Manufacture Limited. to sort out the standardization of product lines. Call now! Sinowon Innovation Metrology Manufacture Limited. creates value for customers, seek development for employees, and take responsibility for society. Call now! With king brinell hardness tester supported and the brinell hardness test centered, Sinowon aims to advance towards leading brand in this field. Call now!
