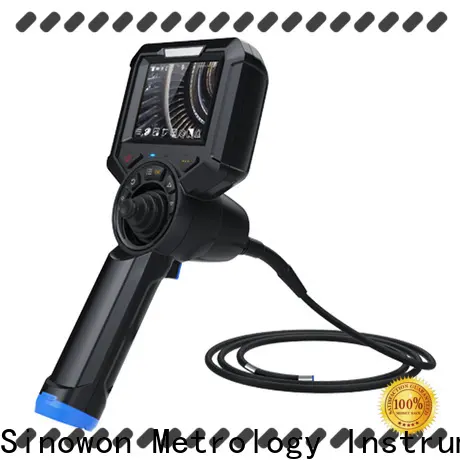

high-quality industrial videoscope from China for industry
1. Sinowon autel mv208 is produced with high consistency. It is completed on the same production line to polish and paint to make sure its color consistency. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
2. When people are dressing this garment, it will greatly improve their overall temperament and personalities. It will help people get many compliments from others. Innovation is always made to update the product
3. The product undergoes quality testing from our QC team to ensure faultlessness. It is supported by multiple languages say English, Turkish, and German
4. The product is tested under the vigilance of our proficient professionals who clearly know quality standards in the industry. It, up to the requirements from different industries, is widely applied
Specification
Tool Videoscope | |||
Model | VT350-60-100 | VT350-60-150 | |
Code# | 350-60-100T | 350-60-150T | |
Probe System | Tube Length | 1m | 1.5m |
Probe Diameter(mm) | Φ6.0 | ||
Tube Material | tungsten alloy | ||
Camera Pixels | 1 mega pixel | ||
Image Resolution | 1280*720 | ||
DOF | 7~110mm/20-150mm | ||
FOV | 120° | ||
Light Source Material | Ceramic LED light | ||
Illumination Level | 6-Class: 0~5 | ||
Illuminance | 25000Lx
| ||
Protecting Device of Durability | 80mm buffer protection device on the connection between tube and handle | ||
Articulation | 360° joystick-control articulation | ||
Bending Angle | Maximum: 220° | ||
Display Monitor System | Structure | Hand-held integrated design | |
Display | 3.5 inches IPS full-view display | ||
Zoom In/Out | 5X | ||
Image Effect | Image freezing, cold/warm color | ||
Image Adjustment | Image sharpness/ contrast/gamma value | ||
Image/Video Format | JPEG/MP4 | ||
File Storage | Standard TF card: 16G, Maximum: 64G | ||
Data Port | HDMI video output, Micro USB port | ||
Wireless Image Transmission | WIFI（optional） | ||
Battery | Detachable & rechargeable lithium battery | ||
Battery Capacity | 3.7V，3200mAh | ||
Battery Working Time | ≥3H | ||
Battery Charge | DC 5V/1A | ||
Outer Case Material | Anti-fall engineering alloy material | ||
Water/Dust Proof | Probe/tube: IP67; monitor: IP65 | ||
Weight | ≈0.5KG | ||
Accessories | Standard Configuration | Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual | |
Optional | Extendable pole: 0.35-1.8m/mini HDMI cable/ foldable tripod | ||
