high-quality videoscope xxl laserliner supplier for industry
1. videoscope xxl laserliner is unique in its autel videoscope . The quality is reliable and the service life is long
2. Detailed operation procedure for videoscope xxl laserliner will be provided in the form of video. It is aimed at more than 60 countries and regions for exports
3. This product excels at meeting and exceeding quality standards. Its packing is made seriously to guarantee the safety during shipment
4. This product has good performance and long service life. It can be customized according to customers' needs
Specification

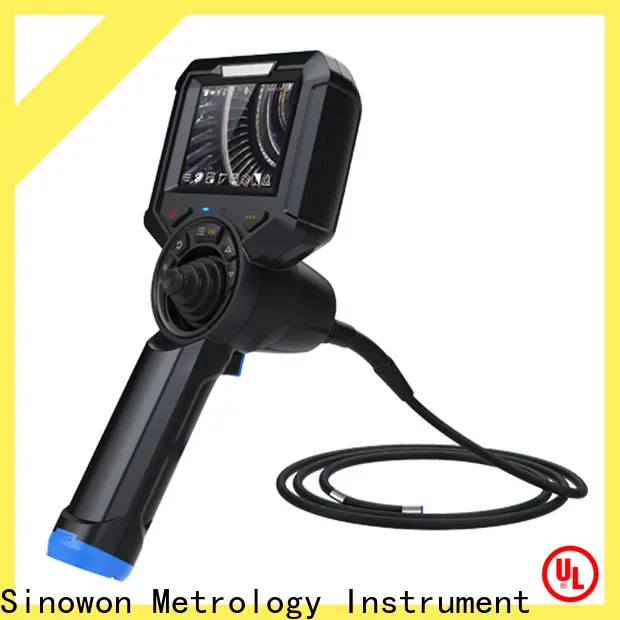

Tool Videoscope | |||
Model | VT350-60-100 | VT350-60-150 | |
Code# | 350-60-100T | 350-60-150T | |
Probe System | Tube Length | 1m | 1.5m |
Probe Diameter(mm) | Φ6.0 | ||
Tube Material | tungsten alloy | ||
Camera Pixels | 1 mega pixel | ||
Image Resolution | 1280*720 | ||
DOF | 7~110mm/20-150mm | ||
FOV | 120° | ||
Light Source Material | Ceramic LED light | ||
Illumination Level | 6-Class: 0~5 | ||
Illuminance | 25000Lx
| ||
Protecting Device of Durability | 80mm buffer protection device on the connection between tube and handle | ||
Articulation | 360° joystick-control articulation | ||
Bending Angle | Maximum: 220° | ||
Display Monitor System | Structure | Hand-held integrated design | |
Display | 3.5 inches IPS full-view display | ||
Zoom In/Out | 5X | ||
Image Effect | Image freezing, cold/warm color | ||
Image Adjustment | Image sharpness/ contrast/gamma value | ||
Image/Video Format | JPEG/MP4 | ||
File Storage | Standard TF card: 16G, Maximum: 64G | ||
Data Port | HDMI video output, Micro USB port | ||
Wireless Image Transmission | WIFI（optional） | ||
Battery | Detachable & rechargeable lithium battery | ||
Battery Capacity | 3.7V，3200mAh | ||
Battery Working Time | ≥3H | ||
Battery Charge | DC 5V/1A | ||
Outer Case Material | Anti-fall engineering alloy material | ||
Water/Dust Proof | Probe/tube: IP67; monitor: IP65 | ||
Weight | ≈0.5KG | ||
Accessories | Standard Configuration | Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual | |
Optional | Extendable pole: 0.35-1.8m/mini HDMI cable/ foldable tripod | ||
Company Features
1. With years of development, Sinowon Innovation Metrology Manufacture Limited. has become an expert in offering customers a reliable manufacturing service with autel videoscope .
2. Our excellent staff and high investment into technology ensures the quality of videoscope xxl laserliner .
3. Sinowon Innovation Metrology Manufacture Limited. always adhere to the 'customer first'. Inquiry!
