Model:
PH400-3015
Code#:
512-400
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Application Scope
hardness testing machines developed and produced by our company can be widely used in various industries and professional fields. could customize comprehensive and efficient solutions according to customers' different needs.

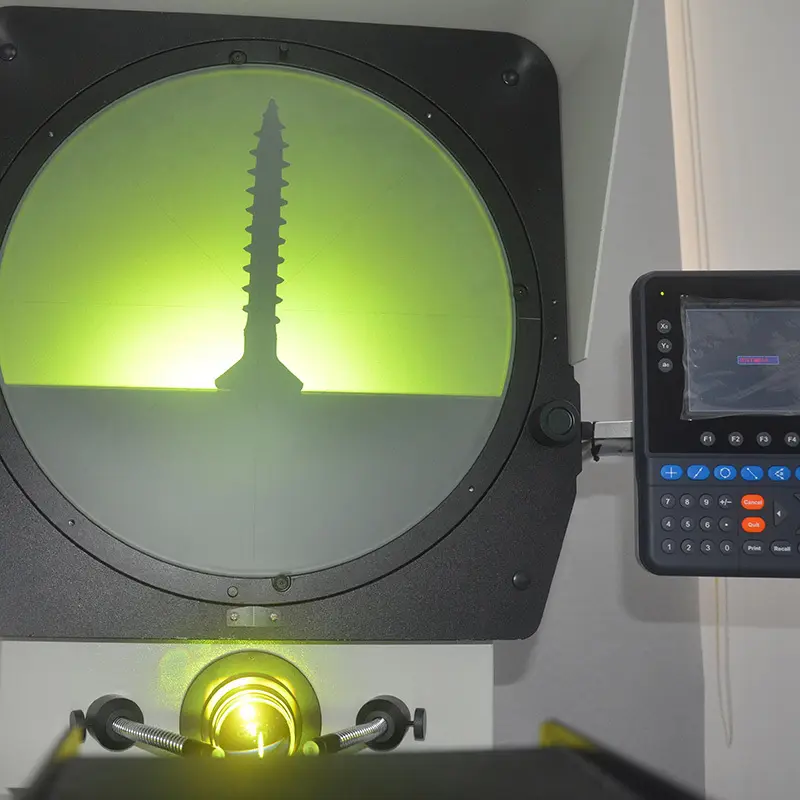

  • Hot horizontal projection profile sharp images Sinowon Brand 7
Product Details
vision measuring machine's specific details in are mainly reflected in the following aspects.

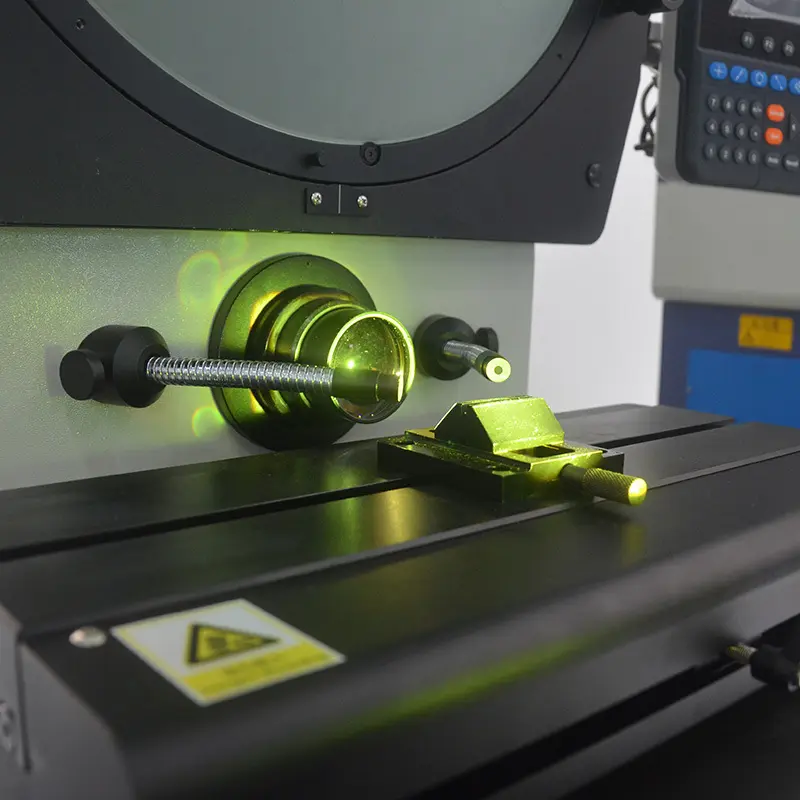

  • Hot horizontal projection profile sharp images Sinowon Brand 8
Company Advantages
1. Before the packing, profile projector must be checked by our inspection system. The product performs well in program control and material use reduction
2. Featuring horizontal projection profile, optical projector is suitable for profile projector images. It is aimed at more than 60 countries and regions for exports
3. This product can provide customers with more predictable economic benefits. Many international famous manufacturers choose this product for its premium quality
4. The product is CE certified for the European market. horizontal profile projector can be done for profile projector least count,profile projector machine..


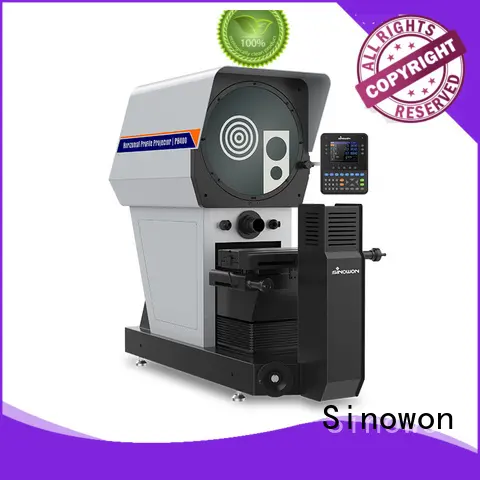

Hot horizontal projection profile sharp images Sinowon Brand 9



Product Feature


The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;

Coating process reflector, clearer image and great dustproof;

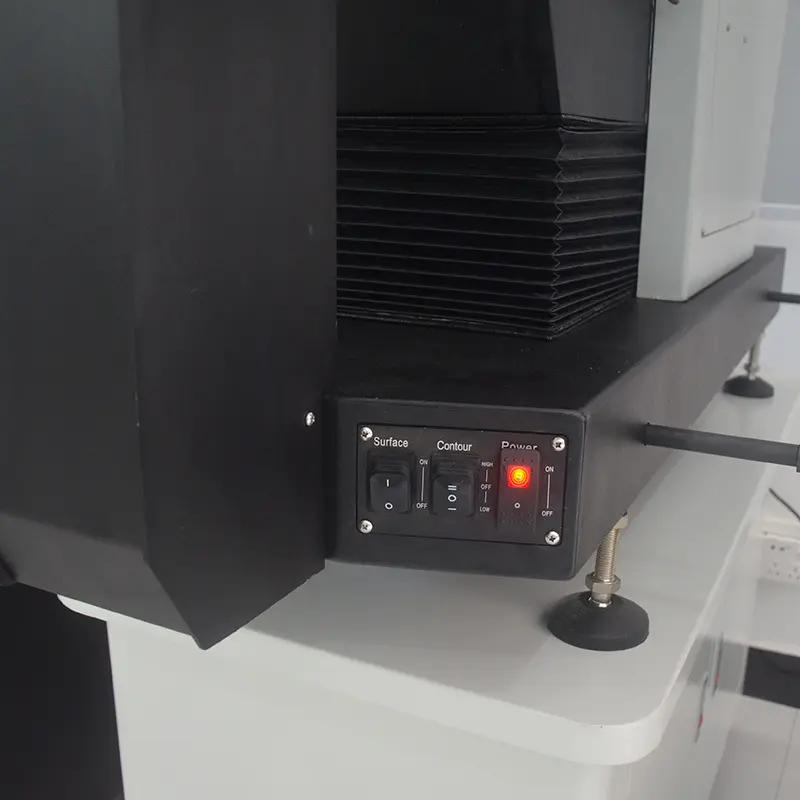

Adjustable contour and surface illumination, to meet with difference workpiece demand;

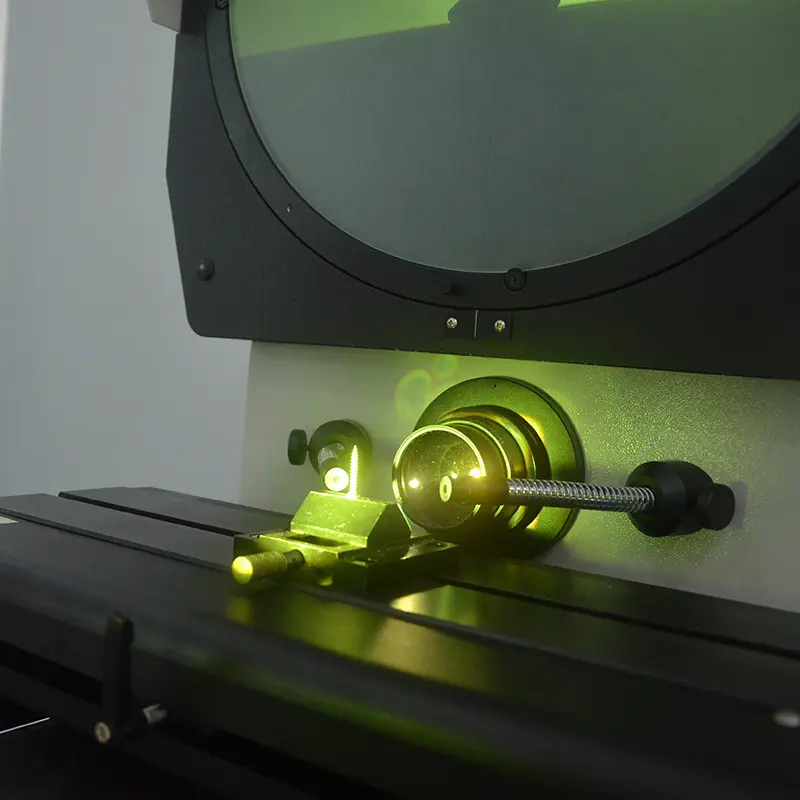

Imported high light and long using life LED illumination ,to ensure precision measurement demand;

High resolution optical system with clear image and magnification error is less than 0.08%;

Powerful Bi-axial fan cooling system,highly increase using life;

Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

Built-in Mini-printer, can print and save data;

With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot switch ,clamp, etc.


Specification

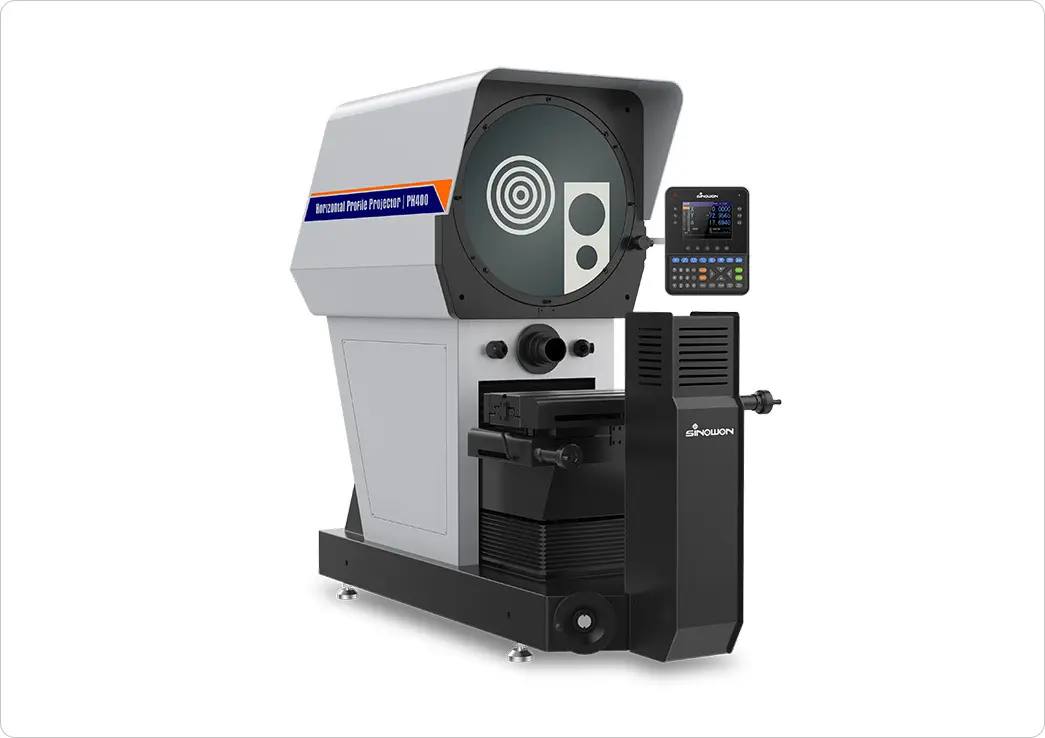

Product NameØ400mm Digital Horizontal Profile Projector
ModePH400-3015
Code #512-400
Working Stage Size455x126mm
Working Stage Travel300x150mm
Focusing120mm
Accuracy≤3+L/200(um)
Resolution0.0005mm
Loading Weight15Kg
ScreenDia:412mm,Measurement Range ≥ Ø400
Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’
Digital ReadoutDP400 (510-340)Multifunction colorful LCD digital readout
IlluminationContour Illumination:3.2V/10W LED  Surface Illumination:220V/130W LED
Working EnvironmentalTemp:20℃±5℃,Humidity:40%-70%RH
Power SupplyAC110V/60Hz; 220V/50Hz,200W
Dimension (L×W×H)109 x 1455& x 633mm
Package Dimension(L×W×H)1157x1355x653mm
Gross/Net Weight350/300kg


Optional Objectives


Magnification5X10X20X50X
Field of Viewφ80mm φ30mm φ15mm φ6mm
Working Distance75mm75mm69mm44mm
