A professional manufacturer of measuring & testing equipment.

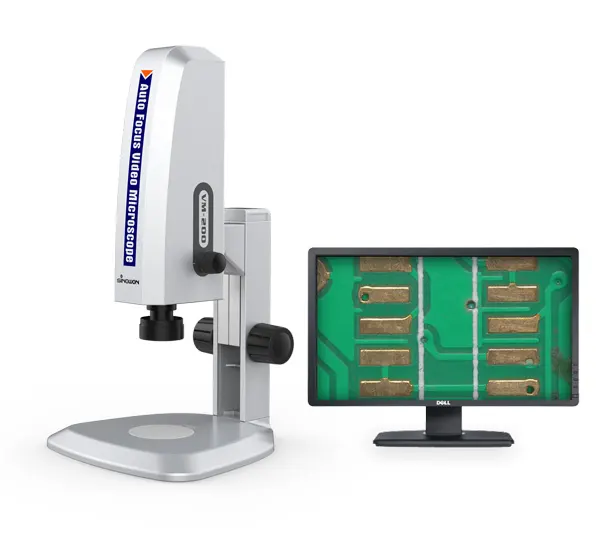

integral design Custom high definition printed circuit board Video Microscope Sinowon generous 1

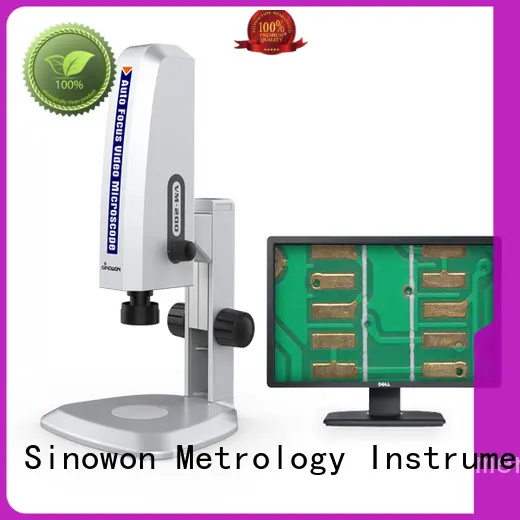

integral design Custom high definition printed circuit board Video Microscope Sinowon generous 2
integral design Custom high definition printed circuit board Video Microscope Sinowon generous 1
integral design Custom high definition printed circuit board Video Microscope Sinowon generous 2

integral design Custom high definition printed circuit board Video Microscope Sinowon generous

Model:
VM-200
Code#:
451-420
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Enterprise Strength
  • has a group of experienced R&D and product management teams. They can independently complete all aspects from production, quality control to export, and can meet the requirements of customers and the market for product quality.
  • provides comprehensive and professional services such as design solutions and technical consultations based on the actual needs of customers.
  • intends to be responsible, united, pragmatic and efficient, which is aligned with the corporate value. Customers and services are of great importance to our business. We strive to build an excellent enterprise with a good business reputation and quality services.
  • Since the inception in , has always been adhering to the development philosophy of 'quality-rooted, responsibility-based'. During the development for years, we have won the recognition and praise from the market and consumers.
  • has vigorously explored the domestic and overseas markets in various ways. are currently sold well in some countries and regions in Europe, America, and Australia.
Product Advantage
  • The following is the section for presenting 's details.
  • Compared with products in the same category, has the following advantages.
  • The series has many styles to meet the diversified needs of customers.
  • Located in , Sinowon Innovation Metrology Manufacture Limited. is an integrated company in the industry. The business range includes production, processing and sales. And the products include .
  • Innovation is always made to update the product. . , are durable in use.
  • has won many awards in the industry with strong technology.
  • 's is widely used in various industries and fields.
  • has a large number of professional talents devoted to promoting corporate development.
Company Advantages
1. Leveraging upon our technologically-advanced production facility we provide a super quality of Video Microscope that finds its wide application in warehouses for efficient storing of goods.
2. Our clients can avail from us a wide range of digital microscope review that is used to move goods from one place to another in , and other commercial areas.
3. The product performance has been greatly improved by our innovative R&D team. It can be customized according to customers' needs
4. The product is verified by ISO9001:2015 to be quality ensured. Practice has shown that the products developed by Sinowon have played a significant role in vision microscope,china microscope field.
5. Today, Sinowon Innovation Metrology Manufacture Limited. has successfully built a comprehensive, tridimensional corporate image. It is well recognized by more than 5000 customers
6. Sinowon Innovation Metrology Manufacture Limited. is committed to providing customers with reasonable, high-quality products and services. More than 10,000 pcs have been delivered and installed

integral design Custom high definition printed circuit board Video Microscope Sinowon generous 3

Application:

Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.

Product Feature


 Integral design, exquisite, fashion, generous;

 With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;

 With adjustable LED surface reflection illumination, is able to control brightness independently;

 With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.


Specification



Product NameAuto Focus Video Microscope
ModelVM-200
Code#451-420
Electronic Magnification32X~206X( VGA 4:3 21”Monitor;)
Optical Objective0.7X~4.5X Horizontal Zoom Lens
Zoom ratio:6.5:1
0.5X C-mount Camera Adapter
Camera Parameters2 million pixel (1920*1080)
Image Size:1/2.86”
Frames Per Second:30fps
Camera FunctionAuto Focus
Cross Line
Photograph and Video Record
Output: HDMI
White Balance; Brightness Control; Digital Noise Reduction
IlluminationSurface: Adjustable LED Surface Illumination
Ring Fiber Illumination Optional
Microscope StandZ-axis Travel: 100mm
Coarse Lifting System
Electrical ParametersAC90~240V;50~60HZ
Dimension310*285*500 mm
Weight6Kg


Accessories:


Product NameSpecification
Microscope Main BodyVM-200
Power AdapterDC5V(Camera)、DC12V(Illumination)
MonitorOptional 4:3 21.5”
Operation Manual/Warranty Card/Certificate/Packing listVM-200


Field of View:


Auxiliary
objective
Field of view (0.5X Camera Adapter)
Remark
0.7X1X2X3X4X4.5X
LengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonalLengthWidthDiagonal
0.5X
WD:108mm
Magnification 0.18X-1.12X


Optional

25.2922.8634.0917.7016.0023.868.858.0011.935.905.337.954.434.005.973.933.565.30
1.0X
WD:91mm
Magnification 0.35X-2.25X


Standard

12.6411.4317.048.858.0011.934.434.005.972.952.673.982.212.002.981.971.782.65
2.0X
WD:35.3mm
Magnification0.70X-4.50X


Optional

6.325.718.524.434.005.972.2122.981.481.331.991.111.001.490.980.891.33





Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been devoted to the R&D, manufacture, sales, service for Video Microscope since its establishment. - Sinowon Innovation Metrology Manufacture Limited. is one of the most dynamic digital microscope review industry groups in China.
2. Our marvelous range of vision microscope is manufactured beneath the supervision of immensely skilled personnel. - Our digital microscope camera has long serving life and gives pleasant performance to the user.
3. Our product range can also be manufactured as per the designs and requirements of our esteemed clients. - We work with trade customers who are looking to provide bespoke, high quality service to their own customers. Get info!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
