linear scales measuring machines factory for electronic industry
1. Some crucial tests regarding Sinowon visual measuring machine cost performance have been carried out. They involve mainly tests that are mean to check bacteria resistance, odor resistance, thermal resistance, tearing strength, and slip resistance. The product is excellent in dust prevention
2. This product can be one of the things that complete a space. It is a necessity and rather the most crucial part of designing a space. Imported materials and accessories are used in product manufacturing
3. visual measuring machine cost is widely used in measuring machines field, with a promising application prospect and tremendous market potential. The product is verified by ISO9001:2015 to be quality ensured

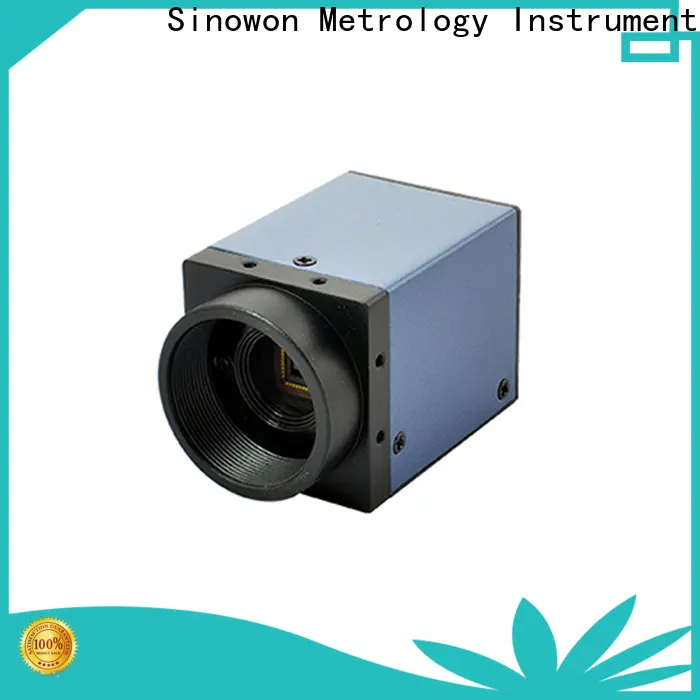

1/3” Analog Color Video Camera
Vicam6.0
Vicam6.0 is the 1/3" analog color CCD camera for Sinowon manual/semi-auto vision measuring system, it has been applied on the series of iMove, iVision, iFocus, iTouch, and iSemi.
Technical Specifications：
Commodity | 1/3” Analog Camera of Vision Measuring Machine |
Model | ViCam6.0 |
Video Signal System | Type E: PAL |
Sensor | Diagonal 6.0mm 1/3” Exview CCD |
Unit cell size | 6.5um(H)X6.25um(V) |
Number of pixels | approx. 470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 650TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms |
Video process | Bio-ele image processing ele ext-Fx TM |
Sensitivity | 0.1Lux |
S/N ratio | 54dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(1800 °K~10500 °K) |
AES | OSD set: 8-level manual/auto: 1/50s~1/10,0000s |
OSD | available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Power consumption | Approx. 1.5W; recommended: +12VDC |
Operating temperature | 0℃ to +40℃ (recommended) |
Dimension | 60.0 (L)×48.5 (W)×58.0 (H) mm |
Weight | approx. 155g |
1/2” Analog Color Video Camera
Vicam8.0
Vicam8.0 is the 1/2” analog color video CCD camera for Sinowon automatic vision measuring system, it has been applied on the series of AutoVision, AutoTouch, AutoScan as the standard camera.
Technical Specification:
Commodity | 1/2” Analogue Color Video Camera |
Model | Vicam8.0 |
Signal system | Type E: PAL standard |
Sensor | 1/2” 8.6um(H)X8.3um(V) |
Number of pixels | Approx.470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 700TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms Y:0.7Vp-p, 75 ohms: C:0.3Vp-p 75 ohms |
Video process | ele ext-Fx |
Sensitivity | 0.001Lux |
S/N ratio | 63dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(2300° K~11000° K) |
Image adjustment | OSD set, Brightness, contrast ratio, and sharpness, Chroma, gain |
Language | OSD set,8 English/Chinese/France/German/Portuguese/Spanish |
OSD | Available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Lightening proof | isolated 10/700us 4000V; follow IEC61000-4.5, ITU-T K20/21 |
Power consumption | approx. 2.4W +12V DC |
Operating temperature | 0℃ to ~40℃ |
Dimension | 127.1 (L)×68.8 (W)×48.7 (H) mm |
Weight | approx. 400g |
Company Features
1. The reason that measuring machines is so popular is its superior quality.
2. Sinowon Innovation Metrology Manufacture Limited. pays high attention to quality and service for better development. Check it!
