material material testing equipment strength Sinowon company

Company Advantages
1. We are actively engaged in manufacturing and importing superior quality assortment of material testing equipment.
2. Being quality oriented organization, Sinowon Innovation Metrology Manufacture Limited. is dealing in the manufacture, supply and trade of universal testing machine.
3. These compression testing machine are designed and developed in tandem with industry norms and standards.
4. The product is well used in many large engineering projects. universal tensile testing machine,material testing machines adopts no weighing universal tensile machine structure, which can reduce the height and make compact structure, also convenient to install and reduce tensile testing machine price..
5. The Gost certificate has been obtained for the Russian market. compressive strength testing machine,electronic universal testing machine can meet the more and more complicate requirements from the market with tension testing machine, whcih has wide development prospects.
6. The product is well known for high accuracy and great stability. material testing equipment,material testing machines is widely polulor around the world.
7. Sinowon universal testing machine is widely admired among our customers for its best performance and sturdiness. It is well recognized by more than 5000 customers.
8. When it comes to manufacture high quality compression testing machine, Sinowon is a trustworthy name in domestic as well as overseas market. The product is excellent in dust prevention.
9. We provide solutions on universal tensile testing machine with the support of our experienced professionals. It, up to the requirements from different industries, is widely applied

◆ The material testing is driven by AC servo motor stably;

◆ The linear motion is ensured by double precision ball screw rod smoothly;

◆ The columns are protected by aluminum shell with sandblasted surface perfectly;

◆ The base cover is made of high-grade ABS plastic with spray coating, which is durable and beautiful;

◆ The fine adjustment switch is standard delivery for up and down stroke;

◆ The different functional grips can be replaced by the quick-release-clamp easily.

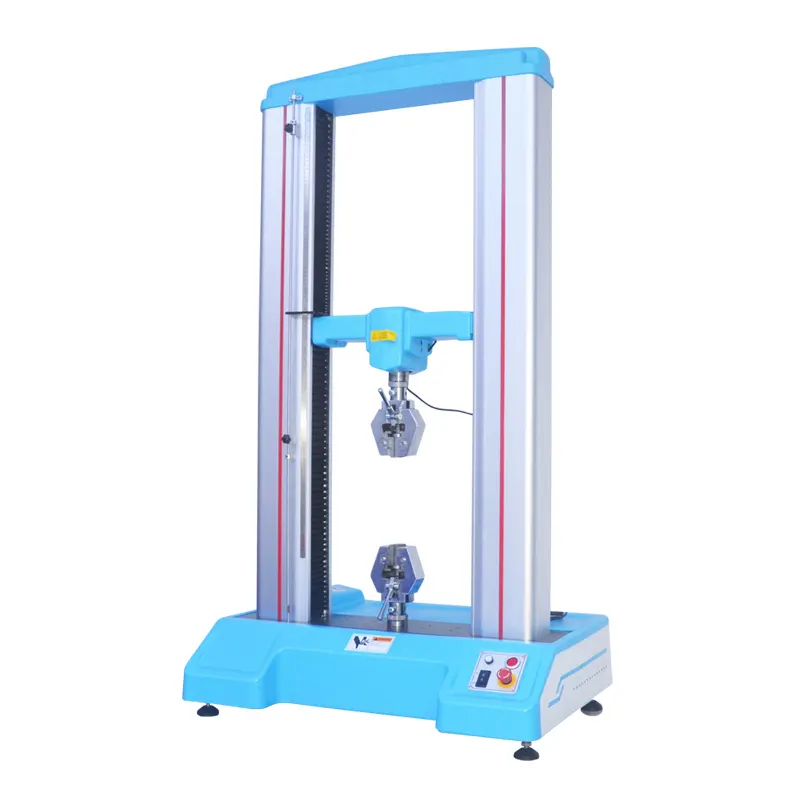

Product Name	Universal Material Testing Machine
Model	Vexus MT20-700	Vexus MT20-1000	Vexus MT20-1500
Test Stroke	700mm	1000mm	1500mm
Capacity	10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN(can select double capacities preparation)
Display	Computer display mode
Force Resolution	1/500,000
Force Accuracy	≤±0.3%
Stroke Resolution	0.005mm
Control Mode	All computerized operation mode
Test Width	Ø420mm
Test Speed	0.1~1000mm/min, can set by computer, with up & down fast adjustment button of grips
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
Machine Dimension	72×52×130cm(W×D×H)
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Power	400W
Machine Weight	Approx 115kg
Power Supply	220V 50/60HZ 10A
Standard Device	1 set of grips, computer software, USB computer connection wire
Optional	Computer and Grips

◆ MS100 Test & Control System is designed to work PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers, which can make the testing of tensile, compression, bending, shearing, tearing and peeling test, etc.

◆ MS100 has the functions of data collection, save, processing and printing test result, it can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, flexible data processing, MS-ACCESS database support, and so on.

Company Features
1. Sinowon Metrology Instrument Is A China Manufacturer Supplying material testing equipment Custom Designed At Very Competitive Prices.Welcome To Contact Us For Detail Information About It. - Sinowon Metrology Instrument Is One Of The Leading universal testing machine Factories With Superior compression testing machine, material testing machines, Click This Website, Here You Can Find Newest Info For Your Business. - The universal tensile testing machine Which Meet People's Requirements In Pursuit Of Good Taste Life. Choose From Sinowon Metrology Instrument Website, You Will Never Be Disappointed.
2. With a view to reaching high quality demands, Sinowon Innovation Metrology Manufacture Limited. uses imported superior raw material and advanced production facilities. - Apart from the high quality of compressive strength testing machine, our customers also speak highly of its fashionable design. - Only by strict supervision of each process during manufacturing material testing equipment, can the quality be assured.
3. Our company regards 'universal tensile machine first, tensile testing machine price foremost' as our tenet. Please contact us! - Under the guidance of vision, Sinowon will uphold consistently universal testing machine. Please contact us! - electronic universal testing machine is Sinowon Innovation Metrology Manufacture Limited.'s principles for managing factories. Please contact us!
