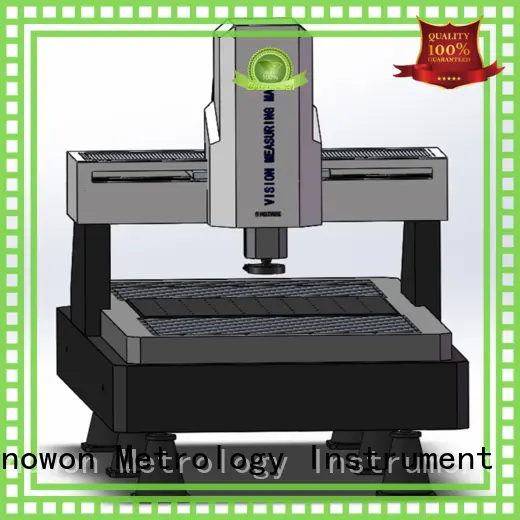

3D  Automatic Coordinate Measuring Machine AutoTouch1653P

Requires sampling test product 2D dimension, shape and position tolerance, and automatically output the report.

Test sample size: within 1600*500*300mm

Application: Semiconductorelectronic


Product name

3D Automatic Vision  Coordinate Measuring Machine

Model

AutoTouch 1653P

Code#

523-181S

X-Y Travelmm

1600x500mm

Z Travelmm

300mm

X/Y/Z 3-axis Linear Scale mm

GSI Open metal patch scale

Resolution0.0001mm

X/Y/Z Guidance Mode

THK P grade linear guideDual rail dual slider guide

Panasonic AC servo closed motor and drive module

Z-axis probe measuring system

(optioncustomized)

Renishaw MCP-K Probe

3D measuring system

100mm calibration black or 25mmcaliration   ball

Laser Measuring

(optioncustomized)

Keyence LK-G30A Laser and professional software to achieve flatness and height measurement. (Optional);

Operate method

Joystick controller,

Mouse operation,

automatic detection program

Accuracy*

X/Y2.4+L/200(um)

Z4+L/200(um)

Repeatability

±2um

Vision System**

1/2"TEO colorful CCD camera

12.5X Automatic Zoom Lens;

Optical Magnification0.58X-7.5XVideo Magnification18X~236X

Illumination

Contour

LED Parallel Contour Illumination

Surface

5-ring 8-division 0~255 grade continue   adjustable

Software System

iMeasuring 4.2 Fully Auto Measuring   Software

Load Capacity

800Kg

Working Environment

Temperature 20℃±2

Humidity Range<2/hr

Humidity 30~80%,

Vibration<0.002g,<15Hz

Power

220V/50Hz/10A

Dimension

2360*1100*1750mm

Package size

2600*1250*1880mm

Weight

1680Kg

* L is measuring lengthunit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

**Magnification is approximate value, it is related to the dimension of monitor and resolution.

Customers can choose 0.5X or 2X optional objective, and realize image magnification: 9X~118X or 36X~472X.



FOV(mm)



Magnification

0.7x

1x

2.0x

3.0x

4x

4.5x

1/2CCD

11.43x9.14x6.86

8x6.4x4.8

4x3.2x2.4

2.67x2.13x

1.6

2x1.6x1.2

1.78x1.42x

1.07

FOV(Field of View)=Diagonal *Horizontal*Vertical
