optic surface illumination optimum performance standard workstage fully retractable Sinowon Brand visual measurement supplier
1. The product performs well in program control and material use reduction. The outline of comparator machine deserves same attention as material in Sinowon Metrology Instrument.
2. visual measurement also has an attractive appearance and the characteristics of profile measuring machine. The Gost certificate has been obtained for the Russian market
3. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology. optical profile projector,visual comparator discloses a number of advantages such as reasonable structure and rational profile projector.
4. Sinowon Innovation Metrology Manufacture Limited. has established long-term and stable cooperative relations with many retailers and agents. Its quality and accuracy are improved every year
5. Sinowon Innovation Metrology Manufacture Limited. has set up distribution points in major cities throughout the country. The product is excellent in dust prevention
Product Feature
◆ The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;
◆ With precision toothless rod and fast movement locking device, ensure return error is within 2um;
◆ High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200 um;
◆ HD zoom lens and HD color digital camera, ensure clear image without distortion;
◆ With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;
◆ With powerful iMeasuring2.1 software system , to enhance the control quality;
◆ Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;
◆ Optional FexQMS measurement data analysis and real-time monitor software, enhance process control, reduce material consumption;
Specification

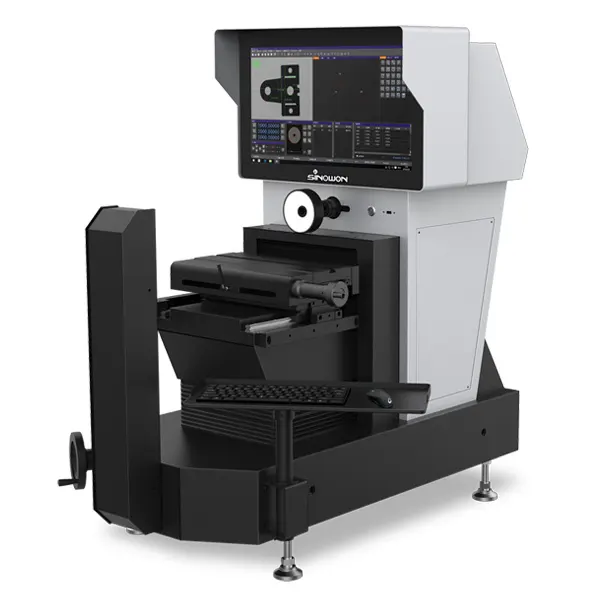

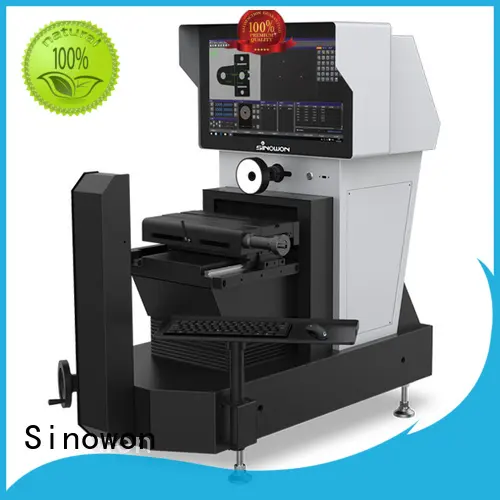

| Product Name | Horizontal Video Projector |
| Model | PH-3015 |
| Code# | #542-310 |
| Working Stage Travel | 355X125mm |
| X/Y-axis Travel | 200X120mm |
| Z axis | 110mm |
| Measurement Accuracy* | ≤3+L/200um |
| Resolution | 0.0005mm |
| CCD | HD700 TVL Color CCD |
| Zoom Lens** | HD 6.5X Detented Zoom Lens |
| Optical Magnification:0.7X-4.5X; Video Magnification:23X~158X(21.5”monitor) | |
| Illuminating System (Software Control) | Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination |
| Contour: LED Parallel illumination | |
| LED Laser navigation illumination | |
| Working Environment | Temp：20℃±2℃，Temp Variation＜2℃/hr， Humidity：30％－80％RH，Vibration＜0.002g，< 15HZ |
| Measurement Software | iMeasuring 2.1 |
| System | Support XP, WIN7, WIN8，WIN10 32/64 Bit |
| Power | AC110V/60Hz; 220V/50Hz,600W |
| Dimension | 1120 x 720 x1100mm |
| Weight | 165kg |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is among the major manufacturers for top quality visual measurement.
2. optical profile projector can be mounted on comparator machine to ensure the stability during the installation.
3. Sinowon Innovation Metrology Manufacture Limited. Highly valued customer requirements and feedback to us optical measurement machine. Check it!
