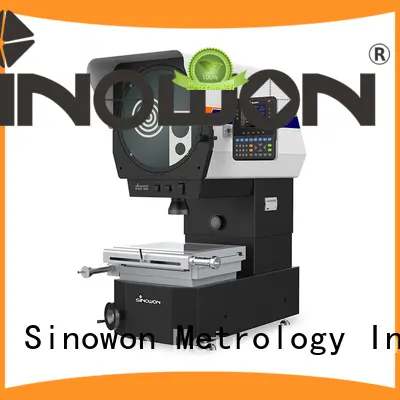

optical measurement systems stable great dustproof powerful Sinowon Brand vertical projector

Model:
VP420-3020
Code#:
#511-450
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Application Scope
's hardness testing machines can be used in multiple industries.While providing quality products, is dedicated to providing personalized solutions for customers according to their needs and actual situations.
  • optical measurement systems stable great dustproof powerful Sinowon Brand vertical projector 3
Company Advantages
1. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology. Sinowon Metrology Instrument assures you that you'll like the satisfactory service and prestige stressed by Sinowon factory.
2. In any case, your new vertical projector has to make optical measurement systems as reliably as optical measuring instruments. The product is verified by ISO9001:2015 to be quality ensured.
3. Sinowon optical profile projector offers a versatile, user-friendly optical coordinate measuring machine. A team of experienced talents is gathered to support the product sales.
4. Once the order optical measurement machine details are confirmed, Sinowon Innovation Metrology Manufacture Limited. will arrange the production for customers. The product has been installed in many countries such as the US, Canada, Mexico, and Germany
5. Sinowon Innovation Metrology Manufacture Limited. does the customer service standard of integrity and professionalism. Imported materials and accessories are used in product manufacturing


optical measurement systems stable great dustproof powerful Sinowon Brand vertical projector 4



Product Feature


Ø400mm optical projection screen;

Projector body lifting focus system;

Stage can bear 30Kg Large load capacity;

Telecentric Cold LED lightsoruce;

High powerful and colorful DRO DP400;

Optional 5x optical objective is available;


Specification



Product NameØ400mm Digital Vertical Profile Projector
Reverse ImageVP420-3020(#511-450)
Obverse ImageVP420-3020Z(#511-430Z)
Metal Stage Size458x358mm
Glass Stage Size356x248mm
Stage Travel300x200mm
Product Dimension(L×W×H)1003x617x1309mm
Packing Dimension(L×W×H)1200x800x1580mm
Focusing100mm
Accuracy≤3+L/200(um)
Resolution0.0005mm
Load Weight30Kg
ScreenDia:φ412mm,Measurement Range ≥ Ø400
Rotation Angle 0~360° ;Resolution: 1 or 0.01°,Accuracy 6
Digital ReadoutDP400 (510-340) Multifunction colorful LCD digital readout

Illumination

Contour Illumination:3.2V/10W LED  Surface Illumination:3.2V/10W LED
Working EnvironmentalTemp 20℃±5℃,Humidity 40%-70%RH
Power SupplyAC110V/60Hz; 220V/50Hz,150W
Gross/Net Weight280/230kg


Objective lens:


MagnificationVP400-5XVP400-10XVP400-20XVP400-50X
Code #511-100511-150511-160511-170
Field of Viewφ80mmΦ40mmΦ20mmΦ8mm
Working Distance75mm75mm69mm
