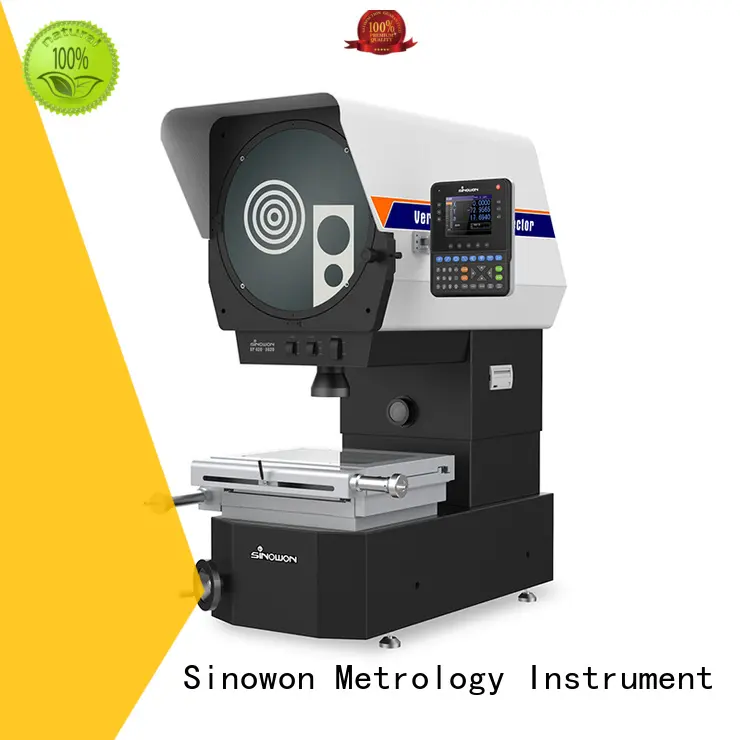

Optical Vertical Profile Projector Ø400mm AutoFocus VP420
Model:
VP420-3020
Code#:
#511-450
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. Sinowon vertical projection projectors is manufactured using the finest raw material, which is procured from some of the most trustworthy and certified vendors in the industry. It, up to the requirements from different industries, is widely applied
2. The product has a little extra space so that people can keep a snack, pen, notepad or any other essentials while they travel. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. Most professionals consider optical profile projector to reliable and easily controlled. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. uses advanced production technology to produce various types of optical profile projector .
2. Our company has recognized the importance of practicing sound environmental policies to create a healthy living condition for future generations. We also encourage our employees to embrace our company's value and work together to make it true. Get quote!
1. Sinowon vertical projection projectors is manufactured using the finest raw material, which is procured from some of the most trustworthy and certified vendors in the industry. It, up to the requirements from different industries, is widely applied
2. The product has a little extra space so that people can keep a snack, pen, notepad or any other essentials while they travel. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. Most professionals consider optical profile projector to reliable and easily controlled. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
Product Feature
◆ Ø400mm optical projection screen;
◆ Projector body lifting focus system;
◆ Stage can bear 30Kg Large load capacity;
◆ Telecentric Cold LED lightsoruce;
◆ High powerful and colorful DRO DP400;
◆ Optional 5x optical objective is available;
Specification
| Product Name | Ø400mm Digital Vertical Profile Projector |
| Reverse Image | VP420-3020(#511-450) |
| Obverse Image | VP420-3020Z(#511-430Z) |
| Metal Stage Size | 458x358mm |
| Glass Stage Size | 356x248mm |
| Stage Travel | 300x200mm |
| Product Dimension(L×W×H) | 1003x617x1309mm |
| Packing Dimension(L×W×H) | 1200x800x1580mm |
| Focusing | 100mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Load Weight | 30Kg |
| Screen | Dia:φ412mm,Measurement Range ≥ Ø400 |
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6 | |
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout |
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED |
| Working Environmental | Temp 20℃±5℃，Humidity 40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz,150W |
| Gross/Net Weight | 280/230kg |
Objective lens:
| Magnification | VP400-5X | VP400-10X | VP400-20X | VP400-50X |
| Code # | 511-100 | 511-150 | 511-160 | 511-170 |
| Field of View | φ80mm | Φ40mm | Φ20mm | Φ8mm |
| Working Distance | 75mm | 75mm | 69mm |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. uses advanced production technology to produce various types of optical profile projector .
2. Our company has recognized the importance of practicing sound environmental policies to create a healthy living condition for future generations. We also encourage our employees to embrace our company's value and work together to make it true. Get quote!
