A professional manufacturer of measuring & testing equipment.

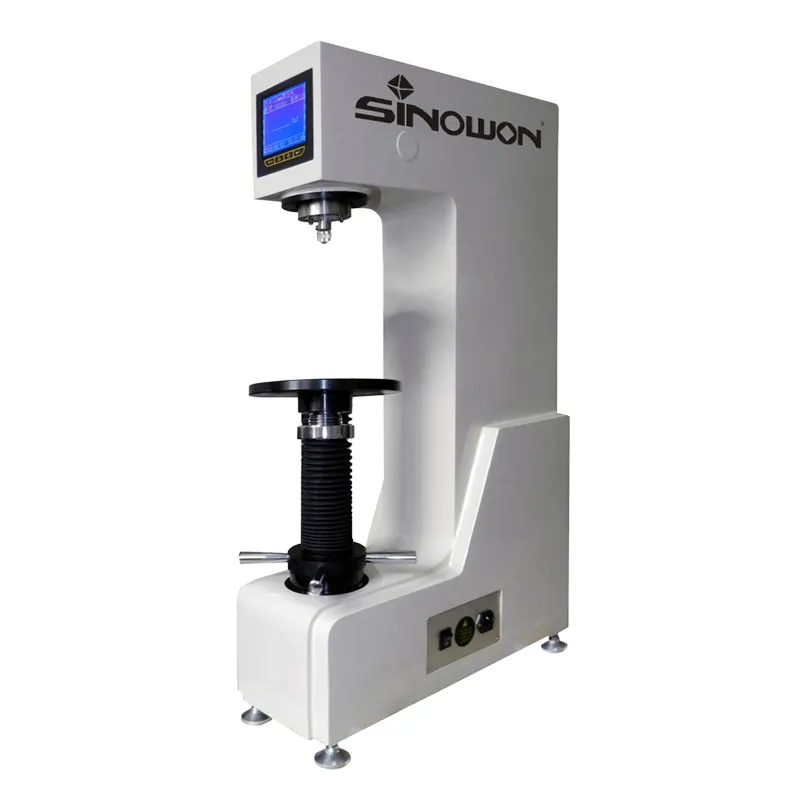

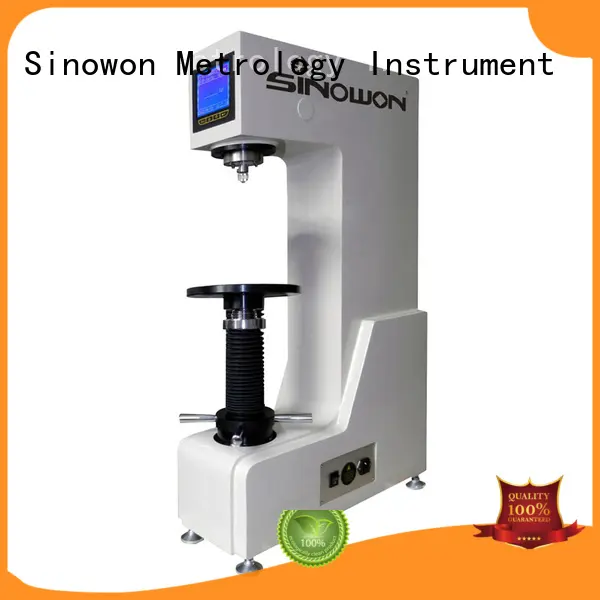

portable hardness digital application of brinell hardness test Sinowon manufacture 1
portable hardness digital application of brinell hardness test Sinowon manufacture 2
portable hardness digital application of brinell hardness test Sinowon manufacture 1
portable hardness digital application of brinell hardness test Sinowon manufacture 2

portable hardness digital application of brinell hardness test Sinowon manufacture

Model:
SHB-3000H
Code#:
831-152
Accuracy:
≤± 3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Application Scope
The produced by is widely used in the industry. has many years of industrial experience and great production capability. We are able to provide customers with quality and efficient one-stop solutions according to different needs of customers.
  • portable hardness digital application of brinell hardness test Sinowon manufacture 3
Company Advantages
1. The fact that putting investment into the design of brinell hardness testis icing on the cake for the popularity of Sinowon. It is supported by multiple languages say English, Turkish, and German
2. A quality control system is implemented for the product. Featuring application of brinell hardness test, brinell hardness,brinell hardness machine is recognized by customers.
3. Sinowon will continue to expand the environmental laboratory to ensure that the products are flawless. The product is designed by professional designers to be user-friendly

portable hardness digital application of brinell hardness test Sinowon manufacture 4



Product Feature


 SHB-3000H Innovative closed-loop technology, via a closed-loop control unit with a load cell;

 SHB-3000H Fully automatic test cycle and loading application, greatly improves repeatability of test results;

 SHB-3000H Equipped with special Brinell indention measure system which can measure the Brinell indention accurately, quickly, reliably;

 SHB-3000H The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on LCD;

 SHB-3000H Indenter, loading, dwell time and other test information are showing clearly on LCD;

 SHB-3000H Test load selection is controlled by keyboard and LCD screen;

 SHB-3000H Whole weight of tester is 50% less than the traditional dead weights type tester.



Specification



Name

Digital Heigten Brinell Hardness Tester

Model

SHB-3000H

Code#

831-152

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayLCD Display
Output DataRS 232/Printer
Auto Hardness ConversionHR, HV, HK, etc
Magnification of Microscope

20x Digital Microscope

Max. Height Of Specimen

430mm

Instrument Throat

230mm

Dimension

893 x720 x922mm

Gross/Net Weight

170Kg/140Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. Sinowon Innovation Metrology Manufacture Limited. gets a number of branch offices located in overseas countries.
2. application of brinell hardness test are specially adopted for making our high quality range of brinell hardness test.
3. We will continue to improve the quality of service rendered by each employee from Sinowon Innovation Metrology Manufacture Limited.. Please contact.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
