practical Microscope Accessories inquire now for commercial

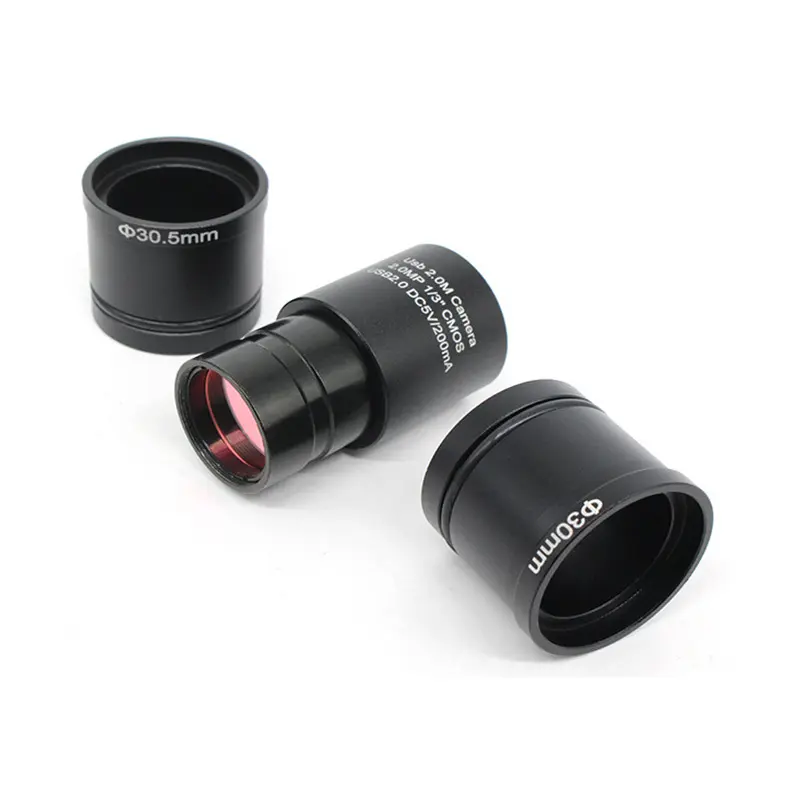

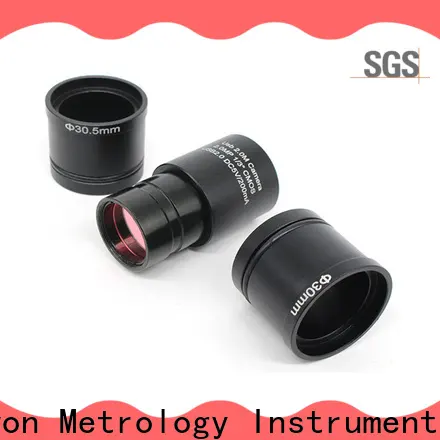

SMC200 with 2-million-pixel color CMOS industrial camera, it is developed for binocular microscopes that can only be observed under the microscope with the naked eye. The miniature camera is processed into the eyepiece shape, inserted into the eyepiece tube, and the image is observed and photographed in real time. Electronic eyepiece from the beginning of simple image processing to the current high definition, high color reproduction.

◆ High-resolution image sensor, high definition;

◆ 1/3.2 inch progressive scan image sensor and 2million pixel;

◆ USB2.0 Digital transmission port, Max speed up to 480mps;

◆ It is brightness, contrast, saturation, sharpness and gamma value software adjustable, etc;

◆ Automatic white balance, automatic exposure;

◆ Support Windows2000\XP2\Vista\Win7 system, do not need drive;

◆Max resolution is 1600*1200;

◆Hardware and software support exposure time, color difference, brightness, contrast, saturation, etc. Post-image enhancement;

Electronic eyepieces have two interfaces: bio-electronic eyepieces and stereo electronic eyepieces:The stereo eyepiece is equipped with an interface that is commonly used 30MM; the biological electronic eyepiece has no interface, and the electronic eyepiece can be directly inserted into the lens barrel.
