A professional manufacturer of measuring & testing equipment.

Precision Saw PC-150B 1
Precision Saw PC-150B 2
Precision Saw PC-150B 1
Precision Saw PC-150B 2

Precision Saw PC-150B

Model:
PC-150B
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon metallurgical testing equipment passes through the extremely harsh quality control and inspection. The product is designed by professional designers to be user-friendly
2. The product competes well in the fierce global market. A team of experienced talents is gathered to support the product sales
3. There are no lapses from a consistently high standard of manufacture. The product is well used in many large engineering projects
4. The product is examined under the supervision of our skilled quality experts against various parameters. The production is supported by professional engineers
5. All its technical details are investigated to make sure the right quality of the product. More than 10,000 pcs have been delivered and installed

Precision Saw PC-150B 3

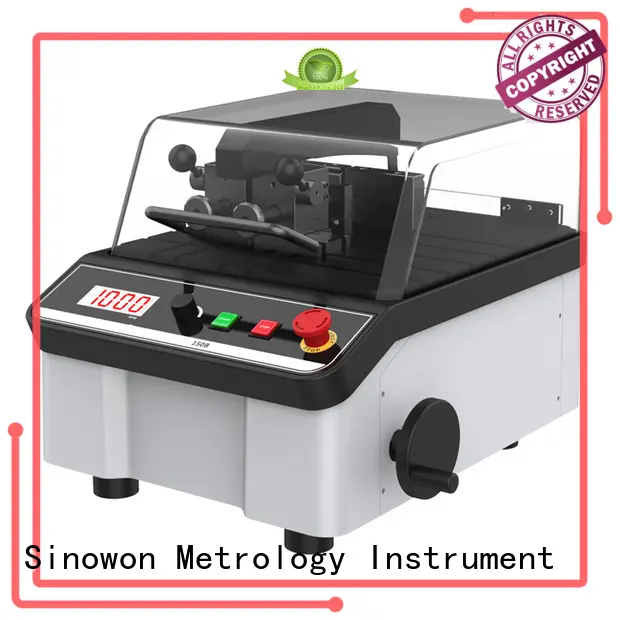

The PC-150B is a tabletop manual precision sectioning saw. This is a versatile cutting machine designed for sectioning circuit boards and a variety of other sample cutting applications, such as metals, fasteners, rocks and ceramics, polymers, composites, electronics, semiconductors, biomaterials, etc.

Product Feature


◆ Powerful DC motors with high torque

◆ Variable speed. Max speed can be customized

◆ Blade feed: manual

◆ Magnetic safety switch. The blade can stop immediately once the cover is open

◆ Hard anodized aluminum table with T-slots. Easy to change the vises

◆ Aluminum fast cam locking vises (left and right)

◆ Composites support cover by integral molding, anti-rust

◆ Transparent top cover, easy to observe samples

◆ Built-in wheel cooling




Specification



Description

PC-150B

Blade Feed

Manual

Blade(mm)

150*12.7*0.6

Blade speed (rpm)

100-800

Table Dimensions (WxD,mm)

294*324

DC Motor

120W

Power

100 - 240VAC, 50-60Hz,   1 Phase

        Accessories

Diamond Blade

Alumina Blade

SiC blade

Fast Cam Locking Vises

Vertical Clamping vise

X-Feed Fixture

Cutting Vise in longitude direction for screws, bars, etc

Cutting Fluid

●Standard○Option




Details


Precision Saw PC-150B 4



Company Features
1. Sinowon Innovation Metrology Manufacture Limited. adopts imported raw material to control quality of metallographic polishing .
2. We endeavor to minimize the use of resources during production. For example, the reusable water will be collected and the energy-saving illumination and manufacturing equipment will be adopted to reduce power consumption.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
