quality measuring machines customized for thin materials

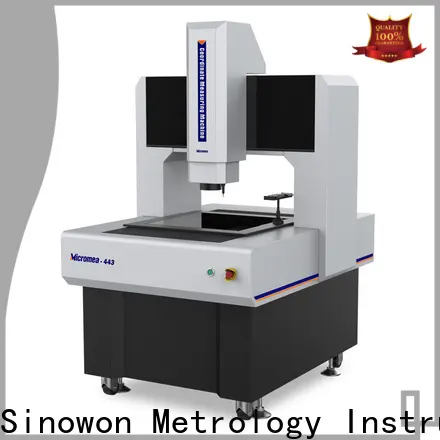

Micromea433 is a Multisensor Measuring Machine, it is designed for high accuracy and large dimension measurement. It has high precision measurement accuracy and stability. It is widely used in electronic industry, medical devices, LCD, aerospace and other industries measurement.
Product Characteristics
◆ Four-axis CNC fully auto loop control, auto measurement;
◆ Marble base and pillar, stable and reliable;
◆ Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
◆ Imported P-grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
◆ With proprietary fully auto measuring software Rational vue, powerful function, simple operation;
◆ Optional touch probe and laser probe, it can also be customized according to customer request.
Technical Specification
Product Name | Multisensor Measuring Machine | ||||||
Model | Micromea443 | ||||||
Code# | 528-130 | ||||||
X/Y-axis Travel | 400x400mm | ||||||
Z-axis Travel | 300mm | ||||||
X/Y/Z 3-axis Linear Scale | Resolution：0.0001mm | ||||||
Guidance Mode | High-precision Double-Track Linear Guide | ||||||
Operation Mode | Joystick controller, Mouse operation, automatic detection program | ||||||
Probe System | TP20 and MCR20 Probe change system | ||||||
Measurement Accuracy* | XY-axis：≤2+L/200(um) | ||||||
Z-axis：≤3+L/200(um) | |||||||
Repeatability | ±1.8um | ||||||
Video System** | 1/1.8" Color CCD Camera | ||||||
6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) | |||||||
Field of View (mm) （Diagonal * Horizontal*Vertical） | Lens Magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x |
1/1.8"CCD | 12.86x10.29x7.71 | 9.00x7.20x5.40 | 4.50x3.60x2.70 | 3.00x2.40x1.80 | 2.25x1.80x1.35 | 2.00x1.60x1.20 | |
Illumination | Contour | LED Parallel Contour Illumination | |||||
Surface | 5-ring 8-division 0~255 grade continue adjustable | ||||||
Software System | RationalVue MS | ||||||
Load Capacity | 30Kg | ||||||
Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr, Humidity 30~80%,Vibration<0.002g,<15Hz | ||||||
Power | 220V/50Hz/10A | ||||||
Dimension | 1600x1050x1650mm | ||||||
Packing Dimension | 1800x1400x2000mm | ||||||
Weight | 1380Kg | ||||||
