quality rapid i vision measuring system wholesale for small parts
Product Feature
◆ The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;
◆ With precision toothless rod and fast movement locking device, ensure return error is within 2um;
◆ High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200 um;
◆ HD zoom lens and HD color digital camera, ensure clear image without distortion;
◆ With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;
◆ With powerful iMeasuring2.1 software system , to enhance the control quality;
◆ Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;
◆ Optional FexQMS measurement data analysis and real-time monitor software, enhance process control, reduce material consumption;
Specification

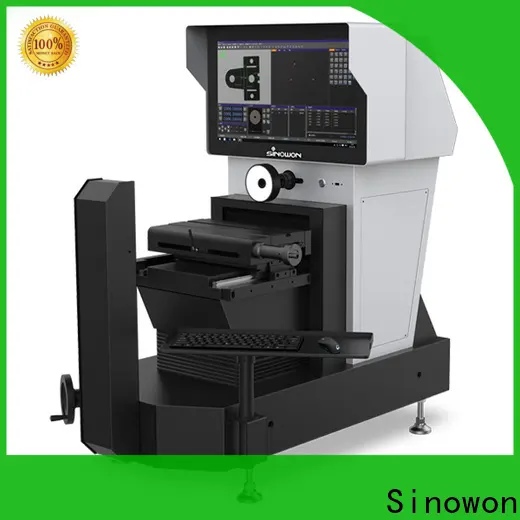

| Product Name | Horizontal Video Projector |
| Model | PH-3015 |
| Code# | #542-310 |
| Working Stage Travel | 355X125mm |
| X/Y-axis Travel | 200X120mm |
| Z axis | 110mm |
| Measurement Accuracy* | ≤3+L/200um |
| Resolution | 0.0005mm |
| CCD | HD Digital Camera |
| Zoom Lens** | HD 6.5X Detented Zoom Lens |
| Optical Magnification:0.7X-4.5X; Video Magnification:23X~158X(21.5”monitor) | |
| Illuminating System (Software Control) | Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination |
| Contour: LED Parallel illumination | |
| LED Laser navigation illumination | |
| Working Environment | Temp：20℃±2℃，Temp Variation＜2℃/hr， Humidity：30％－80％RH，Vibration＜0.002g，< 15HZ |
| Measurement Software | iMeasuring 2.1 |
| System | Support XP, WIN7, WIN8，WIN10 32/64 Bit |
| Power | AC110V/60Hz; 220V/50Hz,600W |
| Dimension | 1120 x 720 x1100mm |
| Weight | 165kg |
