1. Application of Linear Scales

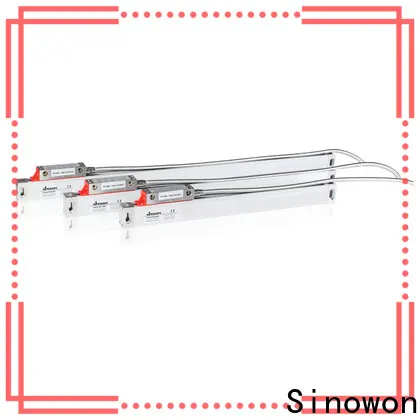

SG series of Linear Scales are widely used with Sinowon profile projectors, toolmaker microscopes, video measuring machines etc. SG Linear scale has good dynamic performance, great moving speed, and perfect reliability, not only can they meet the requirements of normal shaft dynamic performance, but also the requirements of direct drive equipment of highly dynamic performance.



2. Features of Linear Scales

l  It adopts the advanced coating replication technology of glass grating, which ensures the accuracy of glass pitch, the benchmarks of main and auxiliary grating.

l  It adopts the imported electronic components and uses the latest STM chip mounting technology that ensures the durability of electronic components for each linear encoder.

l  Scan read system adopts the reliable and durable five-bearing design, it ensures the movement of optical induction system smoothly and durably.

l  It adopts the double anti-oil, high elasticity and anti-aging plastic as dust-seal, it ensures optimum sealing performance and minimal friction force.

l  It adopts the positioning spring as position controller for the scan read, it ensures the movement of bearing pulley durably and smoothly even in the condition of high-speed.

l  It is strictly inspected by testing instrument for each glass, electronic components, dust-seal and snake skin tube, it ensures that each linear encoder can pass the calibration of the laser intrferometer smoothly.

3.Output Signal Schematic Diagram3

Product Name	Linear Scale SG Series
Model	SG1	SG0.5	SG0.1
Resolution	1μm	0.5μm	0.1μm
Max. Working Speed	60m/min	60m/min	10m/min
Grating Pitch	20μm	20μm	10μm
Output Signal	TTL,RS422	TTL,RS422	TTL,RS422
Grating Measuring System	Transmission infrared optical measurement system, infrared wavelength:880(um)
Measuring Length	25~600mm
Scan Unit Rolling System	90° five ball bearing rolling system
Working Voltage	5V±5%DC
Working Enviroment	Temperature : -10～45°C; Humidity：≤90%
Accuracy	50≤ML≤500mm :  Accuacy: ±3μm
	510≤ML≤600mm： Accuracy: ±5μm

Sinowon Precision Linear scales of Optical Measuring Machines
Working Length (mm)	50	100	150	200	250	300	400	500	600
Resolution 1um	SG1-050	SG1-100	SG1-150	SG1-200	SG1-250	SG1-300	SG1-400	SG1-500	SG1-600
Resolution 0.5um	SG0.5-050	SG0.5-100	SG0.5-150	SG0.5-200	SG0.5-250	SG0.5-300	SG0.5-400	SG0.5-500	SG0.5-600
Resolution 0.1um	SG0.1-050	SG0.1-100	SG0.1-150	SG0.1-200	SG0.1-250	SG0.1-300	SG0.1-400	SG0.1-500	SG0.1-600

          Remark: The standard signal is single TTL, the optional signal is double TTL.

6.Scales Connector pin functions:

Pin No.	Signal	Signal  Wire Color	Type	Current Spec
1	+5V	Red	Imput	35mA
2	0V	Orange	Imput	35mA
3	A	Yellow	Output	4mA
4	B	Green	Output	4mA
5	R	Brown	Output	4mA
6	—	—	—	—
7	—	—	—	—
8	—	—	—	—
9	FG	Silver	—	—
