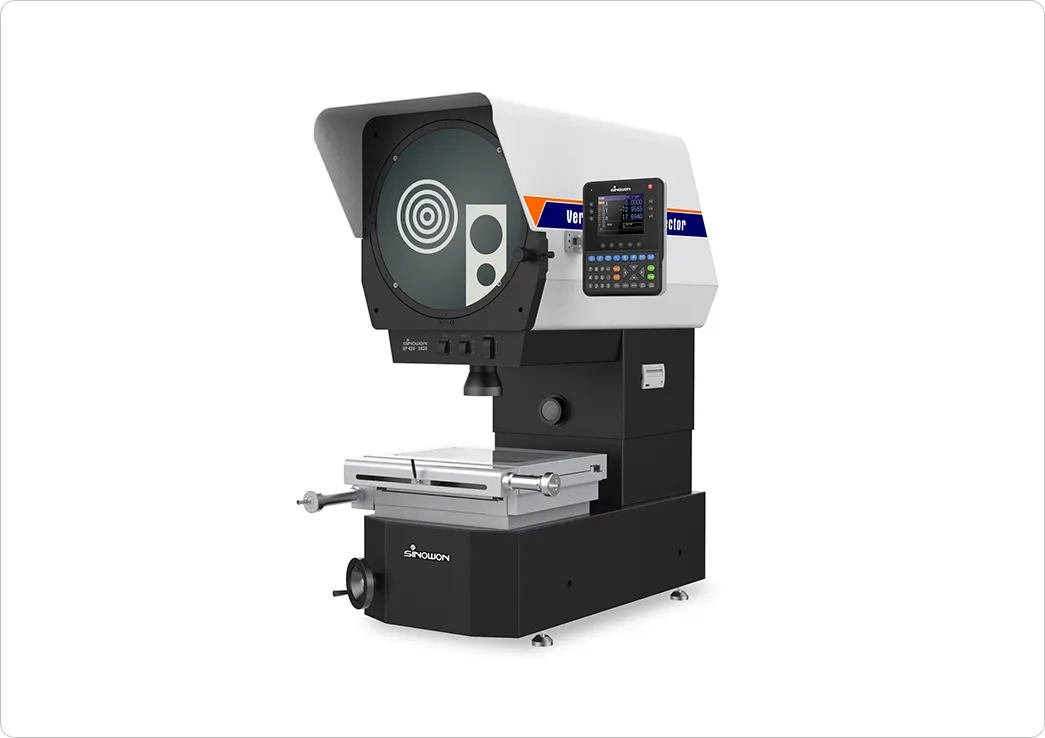

Sinowon Brand great dustproof clearer image surface illumination optical measurement systems fast
Model:
VP420-3020
Code#:
#511-450
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. Its quality and accuracy are improved every year. Thanks to the unique design of optical measurement systems, we are proud to present Sinowon products to customers all over the world. Its quality and accuracy are improved every year
2. It, up to the requirements from different industries, is widely applied. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. A team of experienced talents is gathered to support the product sales. Featuring optical measuring instruments,vertical projector,optical coordinate measuring machine is of great function.
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has a front-runner status when speaking of vertical projector. - Let Sinowon Metrology Instrument build and manage a team of professionals for your business.
2. Welcome To Visit Our Factory! For Your Oem Or Odm optical profile projector, optical measurement systems, optical measuring instruments Orders, Sinowon Is Sure That We Can Make You Satisfied. If You Want To Get More Types Of Our Products. Please Contact Us.
3. Sinowon Innovation Metrology Manufacture Limited. holds grand technical capacity in optical coordinate measuring machine realm. - The Core Values of Sinowon Innovation Metrology Manufacture Limited. is creating value for customers. Inquire!
1. Its quality and accuracy are improved every year. Thanks to the unique design of optical measurement systems, we are proud to present Sinowon products to customers all over the world. Its quality and accuracy are improved every year
2. It, up to the requirements from different industries, is widely applied. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. A team of experienced talents is gathered to support the product sales. Featuring optical measuring instruments,vertical projector,optical coordinate measuring machine is of great function.
Product Feature
◆ Ø400mm optical projection screen;
◆ Projector body lifting focus system;
◆ Stage can bear 30Kg Large load capacity;
◆ Telecentric Cold LED lightsoruce;
◆ High powerful and colorful DRO DP400;
◆ Optional 5x optical objective is available;
Specification
| Product Name | Ø400mm Digital Vertical Profile Projector |
| Reverse Image | VP420-3020(#511-450) |
| Obverse Image | VP420-3020Z(#511-430Z) |
| Metal Stage Size | 458x358mm |
| Glass Stage Size | 356x248mm |
| Stage Travel | 300x200mm |
| Product Dimension(L×W×H) | 1003x617x1309mm |
| Packing Dimension(L×W×H) | 1200x800x1580mm |
| Focusing | 100mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Load Weight | 30Kg |
| Screen | Dia:φ412mm,Measurement Range ≥ Ø400 |
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6 | |
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout |
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED |
| Working Environmental | Temp 20℃±5℃，Humidity 40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz,150W |
| Gross/Net Weight | 280/230kg |
Objective lens:
| Magnification | VP400-5X | VP400-10X | VP400-20X | VP400-50X |
| Code # | 511-100 | 511-150 | 511-160 | 511-170 |
| Field of View | φ80mm | Φ40mm | Φ20mm | Φ8mm |
| Working Distance | 75mm | 75mm | 69mm |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has a front-runner status when speaking of vertical projector. - Let Sinowon Metrology Instrument build and manage a team of professionals for your business.
2. Welcome To Visit Our Factory! For Your Oem Or Odm optical profile projector, optical measurement systems, optical measuring instruments Orders, Sinowon Is Sure That We Can Make You Satisfied. If You Want To Get More Types Of Our Products. Please Contact Us.
3. Sinowon Innovation Metrology Manufacture Limited. holds grand technical capacity in optical coordinate measuring machine realm. - The Core Values of Sinowon Innovation Metrology Manufacture Limited. is creating value for customers. Inquire!
