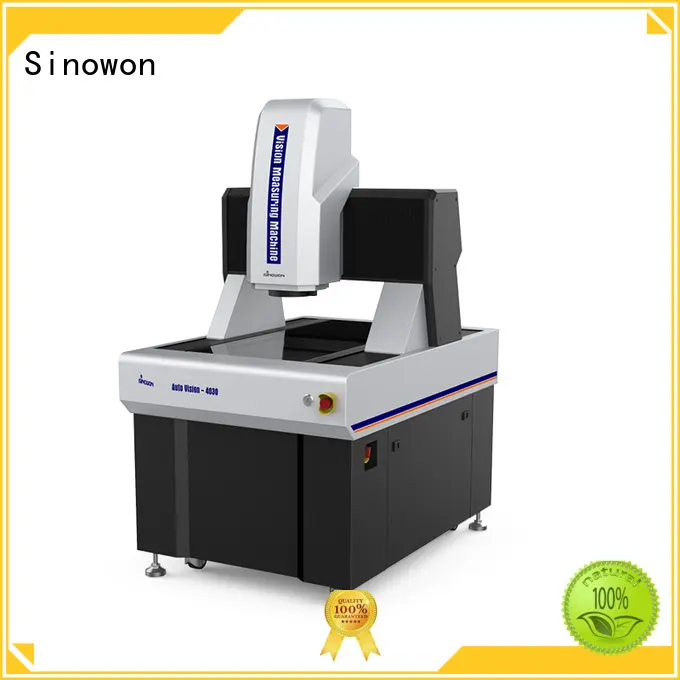

2.5D AutoVision is a Gantry Fully Auto Vision Measuring Machine, it is designed for high accuracy and large dimension measurement. Equipped with movable bridge structure, the workpiece is fixed, which can ensure measurement accuracy and stability. It is widely used in electronic industry, medical devices, LCD, aerospace and other industries measurement.
Product Characteristics
◆ Moving bride structure, the workpiece is fixed;
◆ Four-axis CNC fully auto close loop control, auto measurement;
◆ “00” grade “JINANQING”marble base and pillar, stable and reliable;
◆ Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
◆ Imported H grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
◆ With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;
◆ Optional touch probe and laser probe, it can also be customized according to customer request;
◆ Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.
Technical Specification
| Product Name | 2.5D Automatic Vision Measuring Machine | ||||||||||
| Model | AutoVision432 | AutoVision542 | AutoVision652 | AutoVision862 | |||||||
| Code# | 520-121 | 520-131 | 520-141 | 520-151 | |||||||
| X/Y-axis Travel（mm） | 400x300mm | 500x400mm | 600x500mm | 800x600mm | |||||||
| Z-axis Travel（mm） | 200mm | ||||||||||
| X/Y/Z 3-axis Linear Scale（mm） | Imported Open Linear Scale, resolution：0.1um | ||||||||||
| Guidance Mode | Imported H grade Linear Guide，Double-Track Double Slider Guide | ||||||||||
| Operation Mode | Joystick controller, Mouse operation, automatic detection program | ||||||||||
| Measurement Accuracy | XY-axis：≤2+L/200(um) | ||||||||||
| Z-axis：≤5+L/200(um) | |||||||||||
| Repeatability | ±2um | ||||||||||
| Video System | 1/2" Color CCD Camera | ||||||||||
| 6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) | |||||||||||
| Field of View(mm) Diagonal * Horizontal*Vertical） | Lens Magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x | ||||
| 1/2"CCD | 11.43x9.14x6.86 | 8.00x6.40x4.80 | 4.00x3.20x2.40 | 2.67x2.13x1.60 | 2.00x1.60x1.20 | 1.78x1.42x1.07 | |||||
| Illumination | Contour | LED Parallel Contour Illumination | |||||||||
| Surface | 5-ring 8-division 0~255 grade continue adjustable | ||||||||||
| Software System | iMeasuring 4.1 Fully Auto Measuring Software | ||||||||||
| Load Capacity | 30Kg | 30Kg | 30Kg | 30Kg | |||||||
| Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz | ||||||||||
| Power | 220V/50Hz/10A | ||||||||||
| Dimension | 1160x800x1650mm | 1450x950x1650mm | 1600x1050x1650mm | 2000x1200x1650mm | |||||||
| Packing Dimension | 1380x1170x1910mm | 1690x1300x2000mm | 1800x1400x2000mm | 2300x1700x2000mm | |||||||
| Weight | 650Kg | 780Kg | 1380Kg | 2000Kg | |||||||
