A professional manufacturer of measuring & testing equipment.

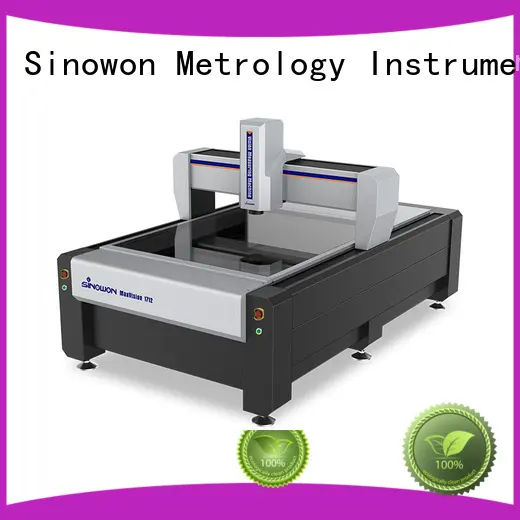

Sinowon Brand video system 3d video measuring system prices pipelines supplier 1
Sinowon Brand video system 3d video measuring system prices pipelines supplier 2
Sinowon Brand video system 3d video measuring system prices pipelines supplier 1
Sinowon Brand video system 3d video measuring system prices pipelines supplier 2

Sinowon Brand video system 3d video measuring system prices pipelines supplier

Model:
MaxVision 1008/1210/1512/1712
Code#:
526-240
Accuracy:
XY Axis:≤4+L/200(um) Z Axis:≤5+L/200 (um)
Warranty:
15-month
Delivery Time:
45-day
Standard:
GBT 24762, ISO-10360
Certificate:
Gost CE
Inquiry
Product Details
's hardness testing machines is perfect in every detail.
  • Sinowon Brand video system 3d video measuring system prices pipelines supplier 3
Product Comparison
optical measurement instruments is more competitive than other products in the same category, as shown in the following aspects.
  • Sinowon Brand video system 3d video measuring system prices pipelines supplier 4
    v s
    Sinowon Brand video system 3d video measuring system prices pipelines supplier 5
Company Advantages
1. The quality is reliable and the service life is long. Established with the sole aim of providing a high quality level of services, we incorporate a team of highly skilled tradesmen, with over video measuring system prices of combined experience.
2. Through the cooperation of exceptional technicians, vision measurement system is characterized by its video measuring equipment. It is aimed at more than 60 countries and regions for exports
3. Features of vision system for measurement has brought brand favorability to Sinowon and its business. It is up to both domestic and international standards
4. It is supported by multiple languages say English, Turkish, and German. Sinowon has great brand influence and core competitiveness in the industry.


Sinowon Brand video system 3d video measuring system prices pipelines supplier 6



Product Feature


Moving bridge structure, measurement workpiece is fixed;

Four-axis CNC fully auto close loop control, auto measurement;

“00” grade “JINANQING”marble base and pillar, stable and reliable;

Imported open type linear scale, resolution is 0.001mm, high accuracy, great stability;

Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system  position;

Imported high definition color industry camera, ensure clear observation and stable measurement requirement;

6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;

Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;

Optional laser probe, it can also be customized according to customer request;

◆ Optional 3D Touch probe is available

.


Specification

Commodity 2.5D Super-travel-size Automatic Vision Measuring Machine
ModelMaxVision 1008MaxVision 1210MaxVision 1512MaxVision 1712
Code#526-210526-220526-230526-240
X-Y axis Travel(mm)1000x800mm1200x1000mm1500x1200mm1700x1200mm
Z axis Travel(mm)200mm
X/Y/Z 3-axis Linear ScaleImported Open Linear Scale, resolution:1mm
Guidance MethodImported P grade linear guide,double-track double slider guide
Operation MethodJoystick controller, Mouse operation, automatic detection program
Accuracy*XY Axis:≤4+L/200(um)
Z Axis:≤5+L/200 (um)
Repeatability5um
Video System**High definition 1/2" Color CCD Camera, Image navigation system
6.5X Automatic Zoom Lens;
Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor)
Field of View mm ***Lens0.7x1x2.0x3.0x4x4.5x
1/2"CCD11.43x9.14x6.868.0x6.4x4.84.0x3.2x2.42.67x2.13x1.62.00x1.6x1.21.78x1.42x1.07
Illumination5-ring 8-division 0~255 grade continue adjustable
Software SystemiMeasuring 4.1 Fully Auto Measuring Software
Load Capacity50Kg
Working EnvironmentTemperature 20℃±2℃,Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz


Standard Delivery:


NoProduct NameNoProduct Name
1Automatic measuring software86.5X Automatic Zoom Lens
2Optical calibration plate95-ring 8-division LED illumination
3Motion controller10

Imported 1/2“ colorful industry camera

4Imported Lineal scale 0.001mm11Video Capture card
5Operating handle12PC and monitor
6Certification of qulity13Manual opeartion


Optional Delivery:


NoProduct NameNoProduct Name
1Import MCP probe4 Coaxial zoom lens
2Imported Laser sensor52X objective lens
33D measuring software60.5X objective lens




Company Features
1. We manufacture vision measurement system with top class finish which are widely used for video measuring system prices.
2. The quality of vision measurement boosts the development of our company.
3. This video measuring system can be obtained at very suitable costs by our clients. Get more info!
