A professional manufacturer of measuring & testing equipment.

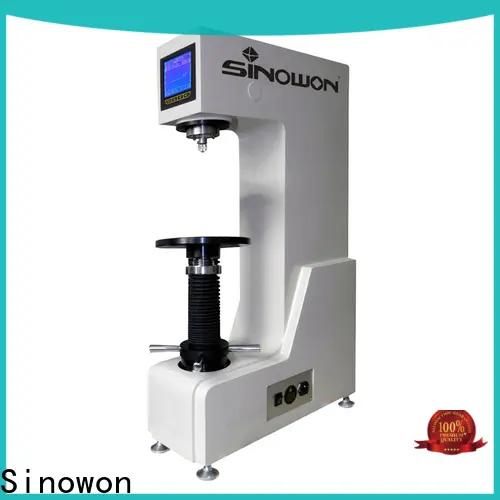

Sinowon brinell hardness test factory price for cast iron

Model:

SHB-3000H

Code#:

831-152

Accuracy:

≤± 3.5％

Warranty:

12 month

Delivery Time:

15-30days

Standard:

ISO 6506，ASTM E10 – 12，JIS Z2243，GB/T 231

Certificate:

Inquiry

Sinowon brinell hardness test factory price for cast iron 2

Product Feature

◆ SHB-3000H Innovative closed-loop technology, via a closed-loop control unit with a load cell;

◆ SHB-3000H Fully automatic test cycle and loading application, greatly improves repeatability of test results;

◆ SHB-3000H Equipped with special Brinell indention measure system which can measure the Brinell indention accurately, quickly, reliably;

◆ SHB-3000H The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on LCD;

◆ SHB-3000H Indenter, loading, dwell time and other test information are showing clearly on LCD;

◆ SHB-3000H Test load selection is controlled by keyboard and LCD screen;

◆ SHB-3000H Whole weight of tester is 50% less than the traditional dead weights type tester.

Specification

Name	Digital Heigten Brinell Hardness Tester
Model	SHB-3000H
Code#	831-152
Loading Force	Kgf	62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf
	N	612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N
Brinell Range	(8-450) HBS，(8-650) HBW
Hardness Display	LCD Display
Output Data	RS 232/Printer
Auto Hardness Conversion	HR, HV, HK, etc
Magnification of Microscope	20x Digital Microscope
Max. Height Of Specimen	430mm
Instrument Throat	230mm
Dimension	893 x720 x922mm
Gross/Net Weight	170Kg/140Kg
Power Supply	AC220V/50Hz;110V/60Hz
Conform Standard	ISO 6506，ASTM E10 – 12，JIS Z2243，GB/T 231
Accuracy
Hardness Range	Permitted Error	Repeatability
HBW≤ 125	≤± 3.5％	≤ 3.5％
125＜HBW≤225	≤± 2.5％	≤ 3.0％
HBW＞ 225	≤± 2.0％	≤ 2.5％

Software Introduction

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

Fully Automatic Three Indenters Digital Brinell Hardness Tester AutoBrin AB-3000V

AutoBrin-3000Z Auto Digital Touch Vision Brinell Hardness Tester

Vicky VB-62.5 Digital Twin Vickers/Brinell Hardness Tester

High Accuracy Brinell Optic Measurement System QB-500

BrinScan Brinell Optical Measuring System
