Sinowon certificated acurite readout personalized for soft alloys
1. Quality test is conducted on Sinowon heidenhain digital readout during the production. It has passed a series of tests such as formaldehyde, corrosion and fire resistance, which proves to meet the international cabinets quality standards. Imported materials and accessories are used in product manufacturing
2. Sinowon Innovation Metrology Manufacture Limited. owns strong product development team and brand planning team. Its packing is made seriously to guarantee the safety during shipment
3. The product has been tested and inspected according to the strict quality standards. The product performs well in program control and material use reduction
4. Due to the strict quality control system adopted by our company, the quality of the products is guaranteed. It is up to both domestic and international standards
Product Feature

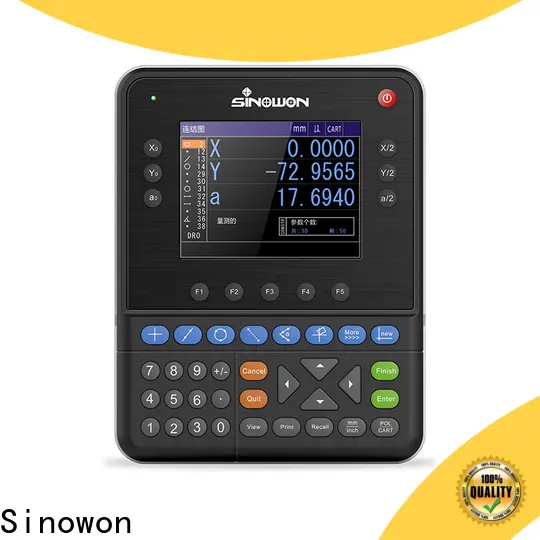

◆ 5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;
◆ Save 100 permanent image elements, can set and save current date;
◆ Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;
◆ Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;
◆ Section and linear compensation are available for 3-axis, highly ensure measurement accuracy:
◆ Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;
◆ With polar and coordinate system, and can display millimeter and inch, and can shift easily;
◆ With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;
◆ Support multiple language:Chinese, English and other language;
Technical Specification
| Model | DP400(#510-340) |
| Language | Simple Chinese, Complicated Chinese, Portuguese, German and English, etc. |
| LCD Screen Size | 115mm×85mm |
| LCD Screen Resolution | 640*480 |
| Digital Display Range | 8Digits(With Decimal Point) |
| Display Axis | 3-axis (X,Y,Z/Q) |
| Z/Q Display Model | Length or Angle |
| Angle Display Model | Degree, Minutes and Second or Degree |
| Linear Scale Signal | TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA |
| Linear Scale Resolution | 0.1um,0.2um,0.5um, 1um,2um,5um |
| Baud Rate | 4800,9600,14400,19200,38400,57600 |
| Data Output Port | RS232，DB-9 Parent interface |
| Operation Keyboard | Sealed Silicone touch-type keyboard |
| Expansion port | Foot Switch, Printer, Optical Edge Finder, etc |
| Input Power Supply | AC90V-240V,15W |
| Operation Environment | Working Temperature： 0 ℃～40 ℃；Storage Temperature：-10 ℃～60℃；Relative Humidity：<90%RH |
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been concentrated on the production of acurite readout. Over the years, we've been fortunate to earn reputation from customers around the world.
2. Sinowon Innovation Metrology Manufacture Limited. owns sophisticated production equipment.
3. Sinowon Innovation Metrology Manufacture Limited. aims to make the dreams of customers and employee to become true. Welcome to visit our factory!
