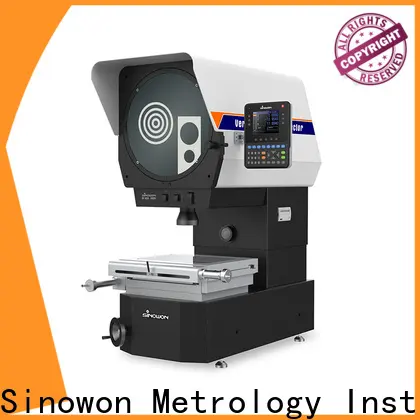

Sinowon certificated optical measurement machine factory price for measuring 1

Sinowon certificated optical measurement machine factory price for measuring 2

Sinowon certificated optical measurement machine factory price for measuring

Model:

VP420-3020

Code#:

#511-450

Accuracy:

≤3+L/200(um)

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Sinowon certificated optical measurement machine factory price for measuring 3

Product Feature

◆ Ø400mm optical projection screen;

◆ Projector body lifting focus system;

◆ Stage can bear 30Kg Large load capacity;

◆ Telecentric Cold LED lightsoruce;

◆ High powerful and colorful DRO DP400;

◆ Optional 5x optical objective is available;

Specification

Product Name	Ø400mm Digital Vertical Profile Projector
Reverse Image	VP420-3020(#511-450)
Obverse Image	VP420-3020Z(#511-430Z)
Metal Stage Size	458x358mm
Glass Stage Size	356x248mm
Stage Travel	300x200mm
Product Dimension(L×W×H)	1003x617x1309mm
Packing Dimension(L×W×H)	1200x800x1580mm
Focusing	100mm
Accuracy	≤3+L/200(um)
Resolution	0.0005mm
Load Weight	30Kg
Screen	Dia:φ412mm,Measurement Range ≥ Ø400
Screen	Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6
Digital Readout	DP400 (510-340) Multifunction colorful LCD digital readout
Illumination	Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED
Working Environmental	Temp 20℃±5℃，Humidity 40％－70％RH
Power Supply	AC110V/60Hz; 220V/50Hz,150W
Gross/Net Weight	280/230kg

Objective lens:

Magnification	VP400-5X	VP400-10X	VP400-20X	VP400-50X
Code #	511-100	511-150	511-160	511-170
Field of View	φ80mm	Φ40mm	Φ20mm	Φ8mm
Working Distance	65mm	80mm	67.5mm	51.4mm
