Sinowon certificated optical microscope wholesale for precision industry
Model:
A5
Code#:
411-222
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Product Comparison
Sinowon pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee vision measuring machine to be quality-reliable and price-favorable.Compared with products in the industry, Sinowon's vision measuring machine has the outstanding advantages which are mainly reflected in the following aspects.
Application Scope
Sinowon's optical measurement instruments can be used in different industries to meet the needs of customers.With a focus on vision measuring machine, Sinowon is dedicated to providing reasonable solutions for customers.
1. The design of Sinowon stereo microscope with camera is simple but practical.
2. This product can last for decades. Its joints combine the use of joinery, glue, and screws, which are tightly combined with each other.
3. The product can achieve uninterrupted operation. It promotes the working efficiency or productivity up to 99% without a low possibility of machine failure.
4. This product has been considered as the best in the industry and widely used by people from various fields.
5. The product plays an important role and has been deeply trusted by our customers.

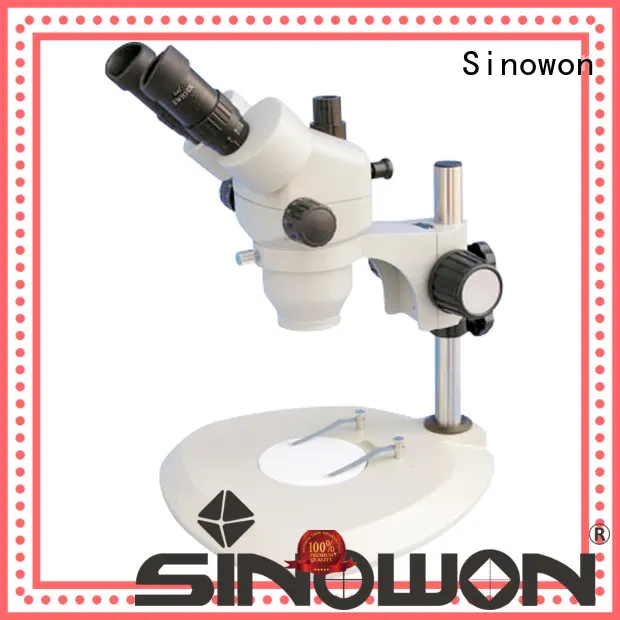

◆ With Zoom A5(binocular) and Zoom A5T(trinocular);
◆ Brand-new optical design, the best reproduction and true color image;
◆ Kinds of stands and attachments are available;
◆ Applied to modern biology research, semiconductor and the other science and technology industry field to meet high precision requirement.
Specification
| Model | Binocular Zoom A5 |
| Code# | 411-222 |
| Objective | 0.7x~4.5x Zoom Objective, Zoom Ration 6.4x |
| Eyepiece | High eye-point and wide-field eyepiece WF10X/20mm Optional WF15X/15mm,WF20X/10mm and object micrometer is available |
| Magnification | 7x~45x,it can extend to 3.5x~180x |
| Zoom Driver | Horizontal Axial Driver Control Knobs |
| Working Distance | 100mm(effective distance),it can extend to 30mm~165mm |
| Microscope Head | Binocular Observe Head with 45°incline and 360°rotatable |
| Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter | |
| Microscope Holder | Focus adjustment range 50mm,focusing knobs elasticity adjustable Drawtube diameter 76mm |
| Microscope Stand | Pillar diameter 32mm and high 240mm |
| Black & white working board diameter 95mm | |
| Auxiliary Objective | 0.5X/165mm,1.5X/45mm and 2X/30mm optional |
Optical Specification:
| Eyepiece | Main Body | Auxiliary Objective | |||
| 0.5X | 1X | 1.5X | 2X | ||
| 0.7x~4.5x | (#416-312) | (#416-322) | (#416-332) | (#416-342) | |
| 10X | Total Magnification | 3.5x~22.5x | 7x~45x | 10.5x~67.5x | 14x~90x |
| Field of view | 57.1~8.9mm | 28.6~4.4mm | 19~3mm | 14.3~2.2mm | |
| 15X | Total Magnification | 5.25x~33.75x | 10.5x~67.5x | 15.75x~101.25x | 21x~135x |
| Field of view | 43.8~ 6.7mm | 21.1~3.3mm | 14.3~2.2mm | 10.7~1.7mm | |
| 20X | Total Magnification | 7x~45x | 14x~90x | 21x~135x | 28x~180x |
| Field of view | 28.6~ 4.4mm | 14.3~2.2mm | 9.5~1.5mm | 7.1~1.1mm | |
| Working Distance(mm) | 165 | 100 | 45 | 30 | |
