Sinowon compressive strength testing machine inquire now for thin materials

Company Advantages
1. Sinowon compressive strength testing machine is manufactured in an advanced facility that is manned with highly qualified professionals, ensuring smooth production. The product is verified by ISO9001:2015 to be quality ensured
2. Thanks to its high efficiency, the product only consume a little power energy. People said the operating cost of this product is lower than they expect. The product is well used in many large engineering projects
3. The product is acoustically insulated. It adopts special panel surface finishes that can effectively block out the transmission of bad sound conditions. The Gost certificate has been obtained for the Russian market

◆ The material testing is driven by AC servo motor stably;

◆ The linear motion is ensured by double precision ball screw rod smoothly;

◆ The columns are protected by aluminum shell with sandblasted surface perfectly;

◆ The base cover is made of high-grade ABS plastic with spray coating, which is durable and beautiful;

◆ The fine adjustment switch is standard delivery for up and down stroke;

◆ The different functional grips can be replaced by the quick-release-clamp easily.

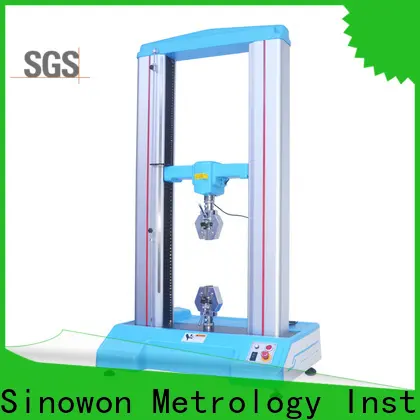

Product Name	Universal Material Testing Machine
Model	SM-300	SM-200	SM-100	SM-50	SM-20	SM-10
Test Stroke	1000mm	1000mm	1000mm	800mm	800mm	800mm
Capacity	10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN (can select   double capacities preparation)
Display	Computer display mode
Force Resolution	1/500,000
Force Accuracy	≤±0.3%
Stroke Resolution	1/500,000
Control Mode	All computerized operation mode
Test Width	Ø420mm
Test Speed	0.01~1000mm/min, can set by computer, with up & down fast   adjustment button of grips
Force Unit Switch	Kgf, N, Ibf, g, ton, Mpa
Stop Mode	Overload stop, emergency stop button, specimen damage automatic stop,   upper & lower limit set automatic stop, automatic reset function
Machine Dimension	72×52×130cm(W×D×H)
Machine Drive	Servo motor drive, synchronous wheel and precision ball screw drive
Power	400W
Machine Weight	Approx 115kg
Power Supply	220V 50/60HZ 10A
Standard Device	1 set of grips, computer software, USB computer connection wire
Optional	Personal Computer

Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
